100A DC Resistance Tester

Product Overview

Transformer's DC resistance is a mandatory test item during the manufacturing process, including semi-finished and finished product testing, installation, handover testing, and preventive testing by power departments. It effectively detects manufacturing defects such as material selection, welding, loose connections, missing strands, and broken wires in transformer coils, as well as potential hazards that may arise after operation.

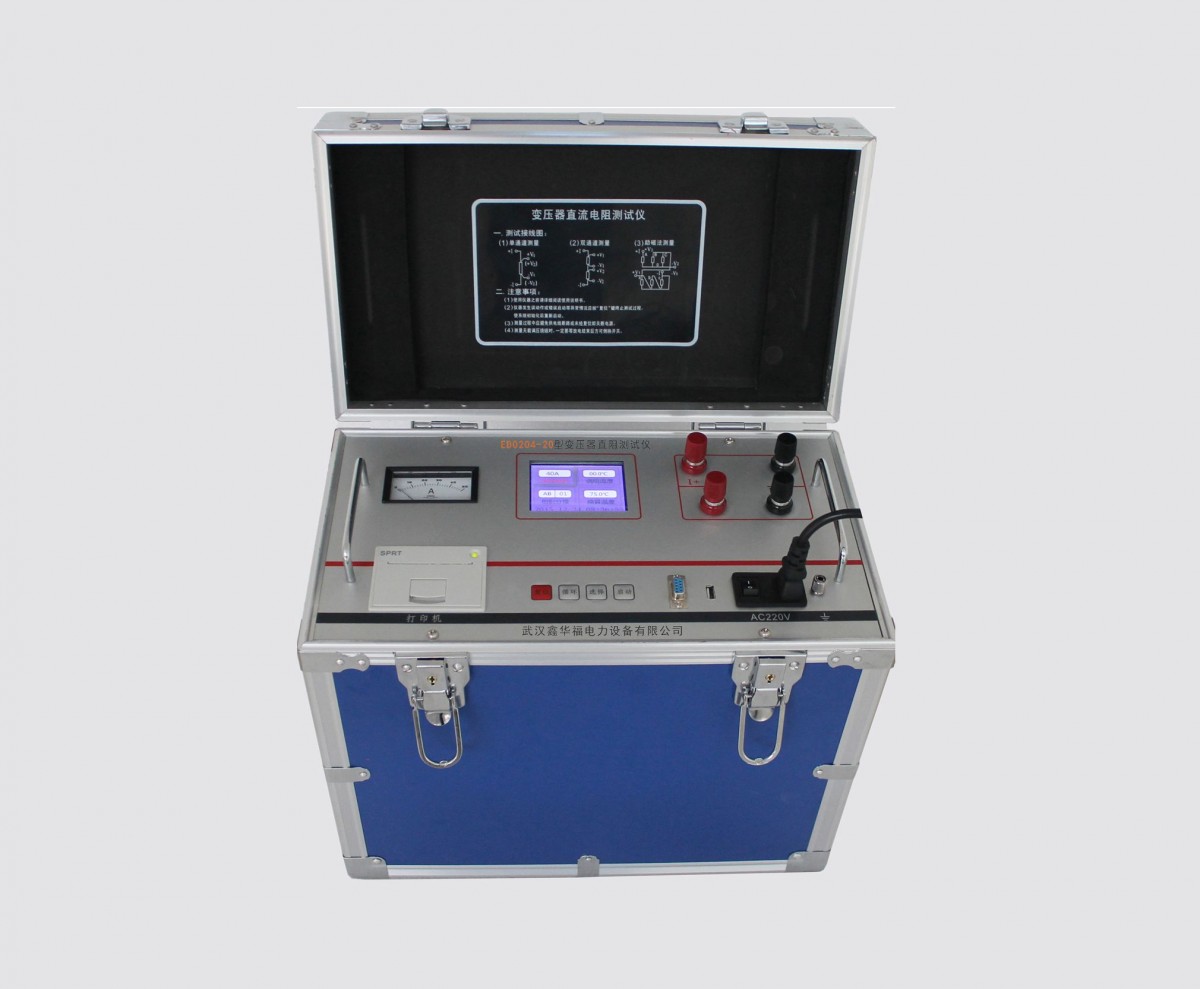

 ED0204-10BThe Type DC Resistance Tester is an innovative product featuring an integrated large-capacity lithium battery. The instrument and test cable are designed as a single unit, making the product compact and easy to carry. The product is suitable for measuring inductive test items such as transformers, current transformers, and reactors, as well as resistive test items like copper bars, wires, and switch contact points. The instrument offers fast and highly accurate testing.

Product Features

◆ Battery-powered or lithium-ion powered220VAdaptive power supply for communication, a single charge allows for continuous testing of over a hundred transformer direct resistance tests, with a simple and convenient testing process.

Output six current levels.zuiLarge Output10AElectricityzuiMajor Output25VVoltage, and can automatically select current for convenience and speed.

Wide range, high precision,500uΩ～50KΩ。

◆ Features resistance-temperature conversion function.

◆ Featuring multiple protection functions such as back EMF protection, open-circuit protection, power-off protection, and overheat alarm.

◆4.3The industrial-grade high-brightness color LCD screen maintains clear visibility even in bright sunlight.

◆Features onboard storage and USB flash drive storage.
