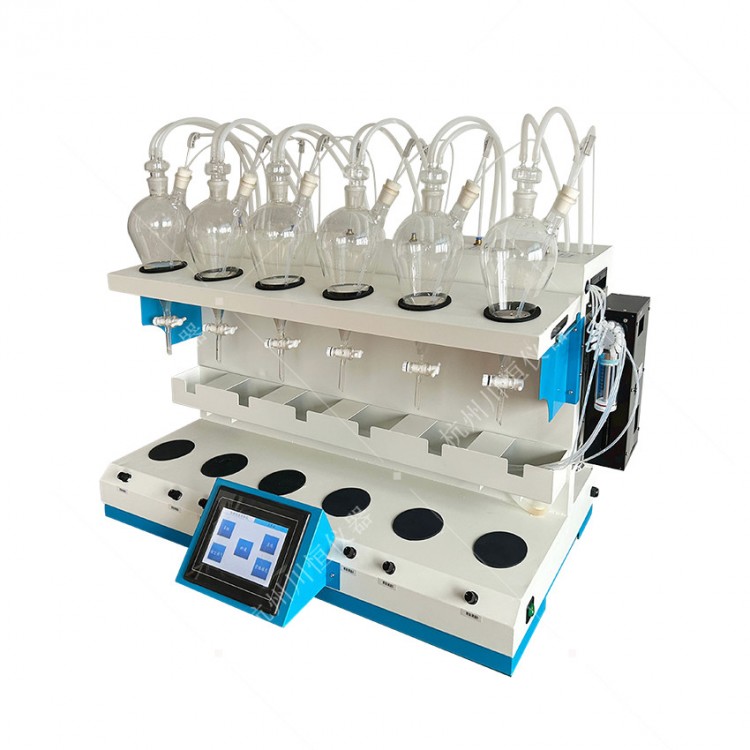

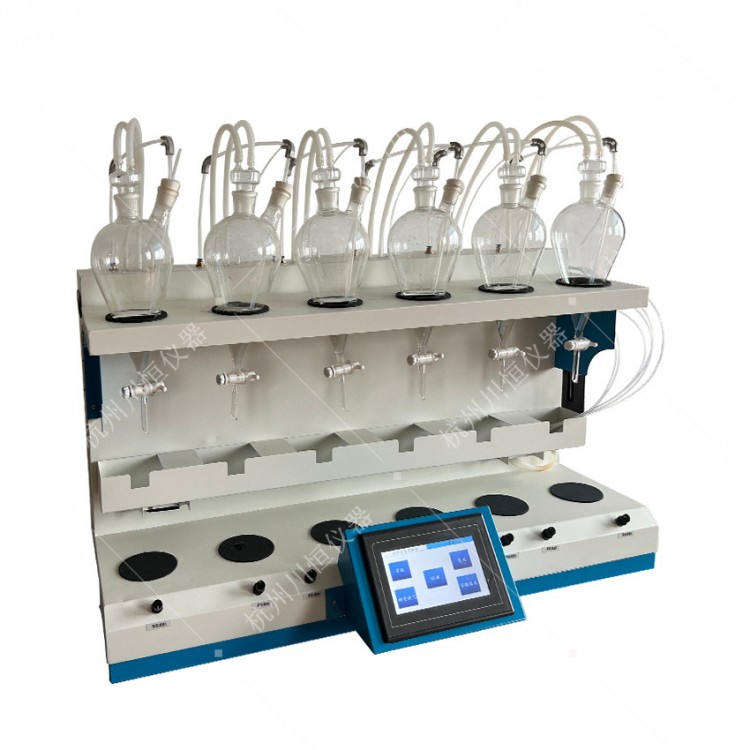

CH-CQ-6D Liquid-Liquid Extraction Instrument - Automatic, Precise Sample Loading, One-Touch Extraction

CH-CQ-6D Liquid-Liquid Extraction Instrument - Automatic Precise Sampling, One-Touch ExtractionThis is an automated experimental platform specifically designed for precise separation, with its core value lying in the standardization and intelligentization of traditional liquid-liquid extraction processes. The instrument, equipped with a high-precision pump valve system and a motion control unit, can perform microscale-level precise transfer of target solvents, ensuring extremely minimal dosing errors for each sample, thereby fundamentally eliminating偶然 errors from manual operation. The automatic sample loading module further supports continuous processing of multiple sample queues, enabling complex and continuous extraction processes to be completed unattended, providing a reliable automated solution for the sample pretreatment phase in the laboratory.

"The 'One-Click Extraction' feature is the essence of this equipment's operation, highly integrating the time-consuming steps of oscillation, sedimentation, and liquid separation from traditional extraction. Users can simply preset the program on the intuitive control panel or the accompanying software to initiate the fully automated operation process. The instrument intelligently controls the oscillation strength and duration to form a stable emulsion, then precisely adjusts the sedimentation time to ensure complete separation of the two phases, and finally achieves precise separation and collection of the target phase through sophisticated phase probe technology. This design not only significantly improves experimental efficiency but also ensures a high degree of reproducibility between batches by precisely controlling process parameters."

The CH-CQ-6D is widely applicable in environmental monitoring, food safety, drug development, and life sciences, particularly suited for high-throughput standardized testing tasks. It liberates laboratory personnel from repetitive, time-consuming work and potential exposure to toxic reagents, simultaneously enhancing data quality and work efficiency while ensuring experimental safety. This equipment represents the trend of modern analytical chemistry sample pretreatment towards automation and standardization, and is one of the key tools for building efficient and intelligent laboratories.

Liquid-Liquid Extraction Apparatus CH-CQ-6D - Automatic, Precise Sample Injection, One-Touch ExtractionKey Features:

1. 7-inch large LCD touch screen, one-touch operation system, screen fixed in front of the machine for easy operator access, allowing self-set of various instrument parameters.

2. Supports extraction bottles in various specifications; all gas valves are made of PTFE material.

3. 6 operating systems, capable of independently extracting 6 batches of samples, with one-touch extraction and oscillation, automatic settling and layering, with individual control for each sample.

4. Extraction time, extraction rate, intermittent time, and extraction cycle can all be independently set and adjusted, with a buzzer alert feature included.

5. Automatic extraction, degassing, collection, draining, and cleaning functions.

6. Equipped with a stainless steel telescopic waste liquid tank, suitable for various reagent usage requirements, featuring an automatic filtration system, no manual drainage needed.

7. Features built-in waste liquid activated carbon filtration and purification, reducing environmental pollution.

8. The automatic cleaning function employs a pressure-regulated scatter-wide-angle cleaning, covering the entire inner wall of the separatory funnel, ensuring a more reliable cleaning effect.

9. The entire unit features electric leakage protection, over-voltage and over-current protection devices, and is equipped with 6 independent voltage stabilization systems, enhancing the consistency of the machine's extraction efficiency.

10. Extraction power can be adjusted freely via the dial.

11. Features a stand with different-sized extraction bottles, featuring a snap-on design for easy and convenient replacement.

12. The machine can be remotely operated via mobile app, with SMS reminder feature (upgradable)

13. Utilizes a high-precision metering pump for automatic, precise sampling, eliminating the need for manual addition and ensuring quick and convenient operation.

Liquid-Liquid Extraction Apparatus CH-CQ-6D - Automatic Precise Sample Injection, One-Touch ExtractionTechnical Specifications:

Extraction Function

(1) Time Setting: 0-999s; (2) Extraction Times: 0-99 times; (3) Extraction Interval: 0-999 seconds.

(4) Extraction Strength: adjustable from mild to strong; (5) Layering Method: automatic extraction program in operation, automatic settling and layering, manual liquid release.

2. Cleaning Function

(1) Time Setting: 0-999s; (2) Washing Cycles: 0-99 times;

(3) Cleaning interval: 0-999 seconds; (4) Cleaning method: Pressure-scattered wide-angle cleaning.

3. Sample Addition: Automatic Sample Addition

4. Waste Liquid Treatment: Waste liquids are filtered and adsorbed by an activated carbon storage tank before being collected and processed centrally, suitable for extraction experiments with various samples.

5. Exhaust Treatment: Automatic exhaust release; exhaust gases are filtered and adsorbed by a filter tank before being collected and processed centrally.

6. Display Method: 7-inch Large LCD Touch Screen

7. Sample Quantity: 6 pieces, standard with 6 x 250ml, 500ml, 1000ml, or 2000ml extraction bottles (standard with 1000ml)

8. Power Voltage: 220V ± 22V, 50Hz 9. Rated Power: 400W

9. Dimensions: 120cm x 150cm x 180cm
