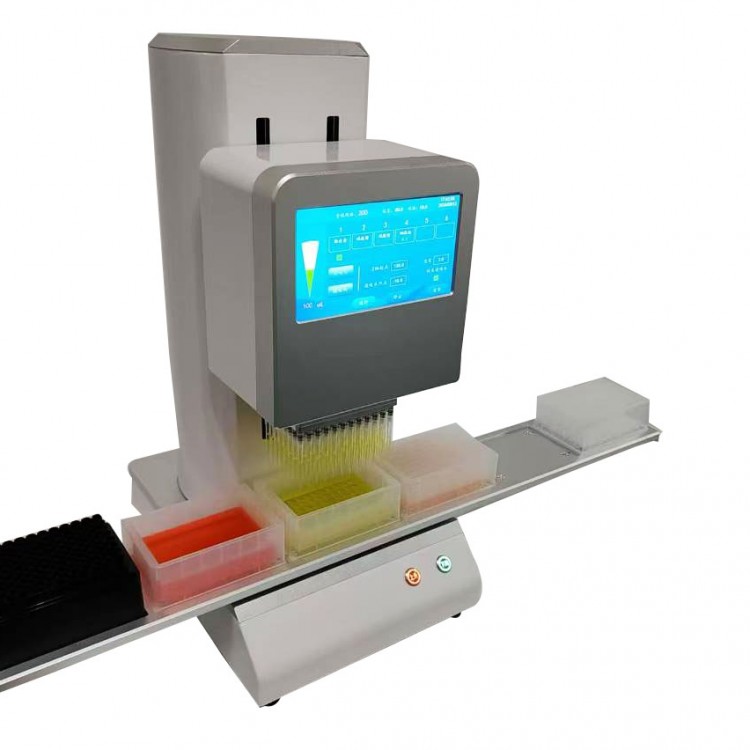

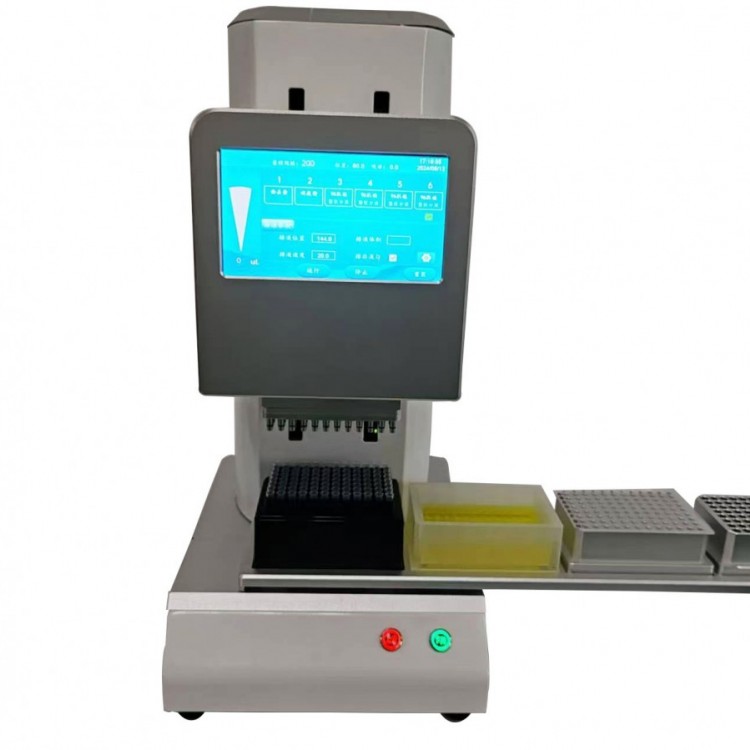

CNFY96-6T Pipetting Workstation, Continuous Fractionating 6-Position

CNFY96-6T Pipetting Workstation, Continuous Liquid Transfer 6 StationThis is a high-throughput, high-precision automated liquid handling platform, with its core advantage lying in its innovative continuous fractionation function. The workstation features an integrated six-position independent fractionation channel, enabling efficient and rapid continuous fractionation operations on 96-well plates or other standard containers without the need to change tips. This design significantly enhances the throughput of reagent dispensing and sample processing, particularly suitable for applications requiring extensive repetitive fractionation steps, such as large-scale screening, ELISA experiments, or PCR system construction.

This work station features advanced servo drive and a high-precision injection pump system, ensuring excellent accuracy and reproducibility for liquid transfer from microliters to milliliters. The user-friendly touch screen control interface makes method editing and operation processes intuitive and simple. Users can flexibly set the volume, speed, and target position of each station. Its modular structure supports seamless integration with other laboratory automation equipment such as robotic arms, plate shakers, or temperature control modules, allowing for easy construction of customized fully automatic experimental production lines.

The CNFY-96R is dedicated to providing stable and reliable automation solutions for life sciences, drug development, and clinical testing. Its six-position continuous liquid handling design not only significantly reduces consumables costs and operation time but also minimizes human error through standardized procedures, ensuring uniformity and reproducibility of experimental results. With its exceptional performance, flexible expandability, and user-friendly operation, the device serves as a powerful tool to enhance laboratory efficiency and research quality.

CNFY96-6T Pipetting Workstation, Continuous Fractionating 6-PositionKey Features:

1. Equipped with a 7-inch LCD touch screen, the interface is simple and clear, with single-machine control and easy operation.

2. Engineered with ultra-compact and lightweight design for easy maneuverability in labs and placement in clean benches, fume hoods, and safety cabinets, allowing for work in confined spaces.

3. One-touch pipetting, continuous liquid separation, gradient dilution, and uniform mixing, all without manual operation.

4. Prevent sample addition reaction time discrepancies during simultaneous 96-channel pipetting, perfectly catering to your diverse needs.

5. Compatible with most lab consumables, sample tubes, pipette tip boxes, microplates, liquid aspiration grooves, and liquid injection grooves that meet the SBS standard.

CNFY96-6T Pipetting Workstation, Continuous Liquid Separator, 6 PositionsTechnical Specifications:

Model: CNFY-96R

2. Sample Channel: 96 Channels

3. Range: 20ul, 200ul, 1000ul (3 options available)

4. Number of Workstations: Selectable from 2-6 workstations

5. Applicable Board Types: 96/384 hole boards and various general-purpose board types

6. Volume Range: 0.5-1000ul

7. Dispensing Increment: 0.1ul

8. Display: 7-inch High-Definition Touchscreen

9. Transfer Principle: Air displacement

10. Nozzle Installation: Automatic Nozzle Mounting and Dismounting

11. Product Features: Gradient Dilution, Continuous Decanting, Blowing and Mixing Uniformly

12. Sample Accuracy: 10ul CV≤2.0%, Accuracy≤1.0%; 200ul CV≤2.0%, Accuracy≤1.0%; 1000ul CV≤1%, Accuracy≤1%

13. Connectivity: External foot switch and connection to other automated instruments available.

14. USE Connection: Remote Software Upgrade Available

15. Dimensions: 410*340*555mm (3 stations) / 810*340*555mm (6 stations)

16. Power Voltage: AC 220V, 50Hz

17. Power: 100W

Weight: 25 kg
