Adjustable Long Handle Filter Head

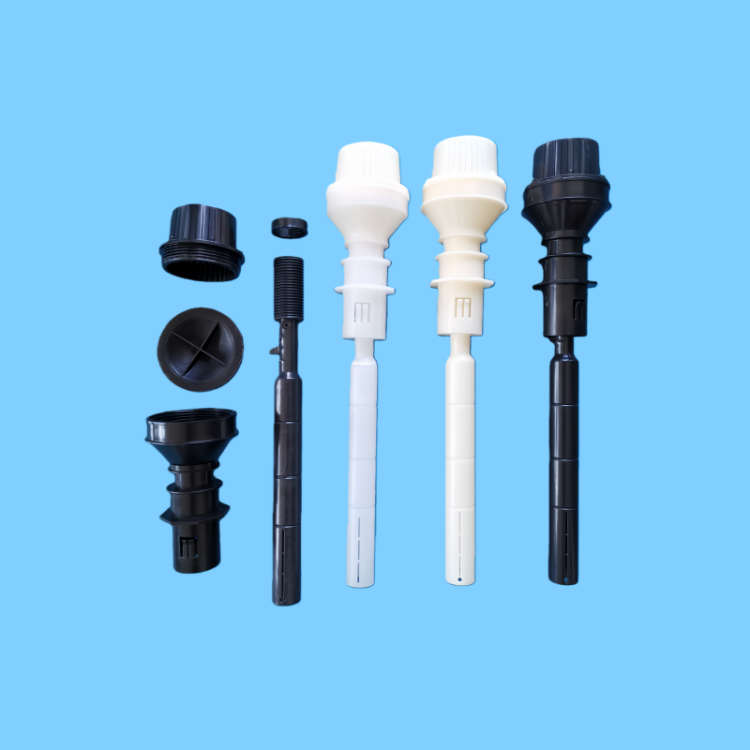

The adjustable long-handled filter head is mainly used with ABS integrated cast filter plates, consisting of three parts: the filter cap, filter rod, and embedded base. The filter rod features a screw with up and down adjustment capabilities, allowing the rotation of the rod to adjust the intake holes on the rod to maintain the same horizontal height.

Adjustable Filter Head Technical Requirements:

       The filter head surface should be smooth, free of cracks, shrink marks, bubbles, and overflows. The gaps in the filter cap should be free of defects such as missing parts, overflows, and blockages.

Adjustable Filter Head Technical Parameters: (Unit: mm)

Adjustable Range: The adjustable range of the filter rod within the pre-buried base should be 0-50mm, with the minimum adjustment being 0.4mm.

QSK-II Type Adjustable Long Handle Filter Head Technical Parameters Diagram:

Illustration: 1- Filter Cap, 2- Adjustable Thread, 3- Inlet Hole, 4- Adjustment Flap and Anti-Loose Strip, 5- Retaining Pin, 6- Filter Head Mounting Base, 7- Filter Rod, 8- Inlet Slot
