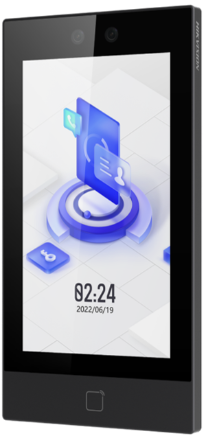

• Screen Specifications: 7-inch touch screen display, aspect ratio 9:16, screen resolution 600*1024.
Camera Specifications: Equipped with a 2MP wide dynamic binocular camera, featuring a starry-level image sensor, no need for white light fill light, facial recognition remains effective in low light or dark environments.
• Authentication Methods: Supports facial recognition, card swipe (IC card, mobile NFC), password authentication, fingerprint (only available in -F models), and QR code function (only available in -QR models).
• Facial Verification: Utilizes deep learning algorithms, supports facial comparison function; photo and video anti-fake supported; 1:N facial comparison speed ≤ 0.35s, facial verification accuracy ≥ 99%.
• Storage Capacity: Local support for 6,000 face databases, 10,000 cards, 3,000 fingerprints, and 50,000 event records.
• Certification results show that it is configurable: The "Name" and "Employee ID" information on the successful certification interface can be configured for display or not.
• External Security Module: Supports connection of access control security modules via RS485, preventing door locks from being opened when the main unit is maliciously damaged.
• External Card Reader: Supports connection of 1 card reader via RS485 or Wiegand (W27/W35) interface, also enabling single-door anti-reverse function.
• Access Control Schedule Template: Supports management of 255 schedule templates, 128 weekly schedules, and 1024 holiday schedules; features management of permanent open and closed time periods.
• Combination Authentication: Card swipe + PIN, card swipe + facial recognition, facial recognition + PIN, etc.
• Multi-factor Authentication: Door access requires multiple personnel authentication (face recognition, card swipe, etc.) before opening.
• Alarm Function: The device supports anti-theft alarm, door forced open alarm, coercion card and coercion password alarm.
• Event Upload: In online status, the device certification results and联动抓拍照片 are uploaded to the platform in real-time. The feature of resuming upload after internet disconnection is supported; events generated when the device is offline will be re-uploaded upon reconnection to the platform.
• Single Machine Usage: The equipment supports local management, including local registration of faces, inquiries, settings, and management of device parameters.
