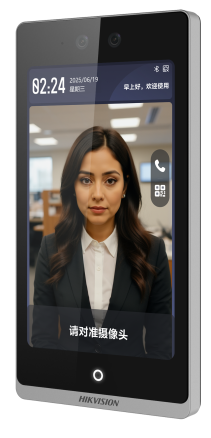

Screen Specifications: 7-inch LCD touch screen, screen ratio 9:16, screen resolution 600*1024.
• Camera specifications: Equipped with a 2MP wide dynamic dual-eye camera, utilizing star-level image sensor, no need for white light fill light, face recognition remains effective in low light or dark environments.
• Basic Authentication: Supports facial recognition, card swipe (IC cards, mobile NFC cards, CPU card serial numbers and encrypted content, ID card serial numbers), and password authentication methods
• Expandable Authentication: Can be connected to an ID card tail plug for authentication comparison; can be connected to a fingerprint tail plug for fingerprint recognition; can be connected to a QR code tail plug for more sensitive QR code authentication; supports single-person combination authentication with multiple methods
• Recognition Performance: Utilizes deep learning algorithms, supporting single or multiple person authentication (up to 5 people simultaneously); photo and video anti-fake capabilities; 1:N face recognition speed < 0.2s, accuracy ≥ 99%; face verification distance > 2m.
• Mask Detection: Supports mask detection mode, configurable for mask reminder mode, mandatory mask mode, and linked to access control; • Mask Reminder Mode: Identity verification can be performed without a mask, and a reminder to wear a mask is given upon successful verification; • Mandatory Mask Mode: Identity verification is not possible without a mask, and a reminder to wear a mask is provided.
• Video Intercom: Supports video intercom with the Hikvision Intercom App, indoor units, and management units; supports one-click dialing to indoor or management units; supports secondary door intercom or perimeter intercom mode.
• Video Preview: Supports remote video preview in the management center, compatible with NVR devices for video surveillance recording, encoding format H.264; (Not supported for models with lifetime 4G data plan)
• Certification interface configurable: The "Call" and "Password" button icons on the main certification interface can be separately configured for display or not.
• Certification results show that it is configurable: The "Photo", "Name", and "Employee ID" information on the successful certification interface can be configured for display or not; and supports desensitization display for Name and Employee ID.
• Voice Customization for Certification Results: Integrates text-to-speech (TTS) and voice synthesis technology, allowing for the customization of voice announcements for both successful and unsuccessful certifications across four time slots. Additionally, the successful certification voice can overlay the announcement of the name.
• Information Release: A picture show and a welcome message program are broadcasted at different times; the picture show supports pictures (JPG format, recommended resolution of 600*640, up to 8 pictures in rotation); the welcome message program supports uploading background images and setting welcome messages.
• Theme Mode: Supports certified mode and advertising mode themes; • Certified Mode: The certification interface displays a preview image, showing the name, employee ID, and facial image of the certifier during the certification process; • Advertising Mode: Supports the playback of image programs, and allows configuration for whether to display the preview image when facial recognition fails.
• External Security Module: Supports connection of a private RS485 interface to a door control security module, preventing door locks from being opened if the host is maliciously damaged.
• External Card Reader: Supports connection of 1 card reader via Wiegand (W26/W34/W27/W35) interface.
• Card Reader Mode: Supports dealer's private RS485 or Wiegand (W26/W34/W27/W35) interface to access control panels, operating in card reader mode.
• Plan Templates: Supports management of 255 plan templates, 128 weekly plans, and 1024 holiday plans; supports management of regular open and closed time periods.
• Storage Capacity: Basic model supports 10,000 face databases, 50,000 cards, and 150,000 event records (other models please refer to the specifications table)
• Multiple Authentication: Door access requires passing multiple person authentication (facial recognition, card swipe, etc.) before entry.
• Unauthorized Personnel Verification: Supports the distribution of unauthorized personnel information via 4200, enabling local verification of unauthorized personnel and reporting unauthorized personnel authentication events.
• Alarm Function: The equipment supports anti-theft alarms, door forced open alarms, coercion card and coercion password alarms, unauthorized personnel alarms, etc.
• Event Upload: Real-time upload of device certification results to the platform while online, supporting offline continuation of uploads; events generated when the device is offline will be re-uploaded upon reconnection to the platform.
• Platform Management: Supports integration with 4200 for local area network centralized management, supports integration with Hikvision Interconnect and Hikvision Cloud Eye platforms for management, enabling cloud access control, cloud visitor management, cloud intercom, and remote door opening functions.
• Open Interface: Equipment supports Foscam, ISAPI, and ISUP 5.0 protocols for interfacing, enabling access control and visitor management services (4G models only support interconnection use, not stream interfacing).
• Standalone Use: The device supports local management, including local registration of faces, inquiries, settings, and management of device parameters; also supports mobile and PC web operations for personnel management and authentication configuration. It enables local attendance tracking, managing shifts, attendance rules, holidays, and scheduling, and supports USB flash drive export of attendance reports, including total attendance reports, attendance records, and abnormal attendance reports. Note: Local attendance is available for up to 1500 individuals. If the device has more than 1500 individuals when local attendance is enabled, it will prompt that the current number of individuals exceeds the attendance limit. Please delete individuals and try again; the final version does not support local attendance.

Screen Specifications

Dimensions:

7-inch Vertical Screen

Operation Method:

Touch Operation

Type:

IPS Monitor

Video Specifications

Lens Quantity:

Binocular, one path for thermal imaging, one path for visible light

Pixel:

200W

Audio Parameters

Sound Quality:

Noise suppression and echo cancellation supported

Network Parameters

Wired Networking:

Support

Wireless Network:

Optional: WiFi, 4G

Wi-Fi：

Support

Physical Interface

Network Port:

1 RJ45

Door Lock Export

1 piece

Door Open Button:

1 piece

Magnetic Door Switch Input:

1 piece

IO Input:

2 pieces

IO Output:

1 piece

Anti-theft:

1 piece

RS-485：

1 piece

Wigan:

1 piece

USB：

2: 1 Type-C at the bottom of the equipment; 1 6-pin white socket at the back for cable exit

Audio Interface:

3.5mm audio jack

Certification Parameters

Card Type:

CPU card serial number; Second and third generation ID card serial number; NFC; IC card

Functional Parameters

QR Code Recognition:

Optional QR Code Recognition Module

Voice Announcement:

Support

Time setting function:

Support
