• Equipment supports wired or WiFi networking (with W model), dual network redundancy for added convenience

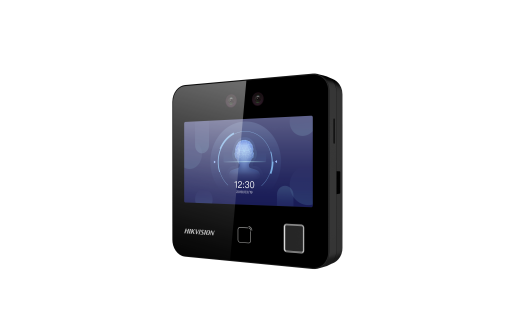

• Features a 4.3-inch LCD touch screen, supporting local video preview and real-time face detection
• Storage Capacity: Locally supports 1,500 face databases, 3,000 cards, 3,000 fingerprints (-F model), and 150,000 event records.
• Supports configuration of room number for call, or one-touch call to indoor unit or management unit; supports two-way communication with indoor unit or management unit; supports sub-door intercom or perimeter machine mode.
• Supports mobile and PC web operations, allowing for personnel management, intelligent configuration, access control parameters, and other settings. Convenient and quick, no need to rely on platform software.
• Supports integration with the Hikvision Interconnect APP, enabling cloud-based access control, attendance, and intercom functions, as well as one-touch door opening and attendance management configuration applications.
• The device supports local management, including local registration of faces, inquiries, settings, and management of device parameters, local attendance configuration, and local modification of administrator passwords, M1 card and NFC on/off functions.
• External Security Module: Supports connecting to a control security module via a dealer's private RS485 interface, preventing the door lock from being opened if the host is maliciously damaged.
• Card Reader Mode: Supports connecting to access control systems via dealer private RS485 or Wiegand (W26/W34/W27/W35) to be used in card reader mode.
• Supports facial recognition, card swipe (Mifare/IC card, mobile NFC card, CPU card serial number, ID card serial number), password, QR code, facial recognition + password, facial recognition + card swipe, card swipe + password, authentication via facial recognition or card swipe
• Voice Customization for Certification Results: Integrates Text-to-Speech (TTS) and voice synthesis technology, allowing for the customization of voice announcements for both successful and failed certifications across 4 separate time slots. Additionally, the voice for successful certifications can overlay the name announcement.
• Theme Modes: Supports Standby Advertisement Mode, Simple Mode, and Theme Mode.
• For indoor use only
Screen Specifications
Dimensions:
4.3-inch landscape display
Operation Method:
Touchscreen Operation
Video Specifications
Pixel:
200w
Audio Parameters
Network Parameters
Wired Network:
Supported
Wireless Network:
N/A
Physical Interface
Network Port:
1 RJ45
Door Lock Export
1 piece
Door Open Button:
1 piece
Magnetic Door Sensor Input:
1 piece
Anti-theft:
Support
RS-485：
1 piece
Wigan:
1 piece
USB：
1 piece
Capacity Information
Face Capacity:
1500
Card Capacity:
3000
Event Capacity:
15W
Certification Parameters
Fingerprint Module:
N/A
Card Type:
M1 Card; CPU Card Serial Number
Functional Parameters
Real Person Verification
Support photo/video anti-counterfeiting
Other Parameters
Power Supply:
DC12V
Power Consumption:
12W
Operating Temperature:
-10 ~40℃
