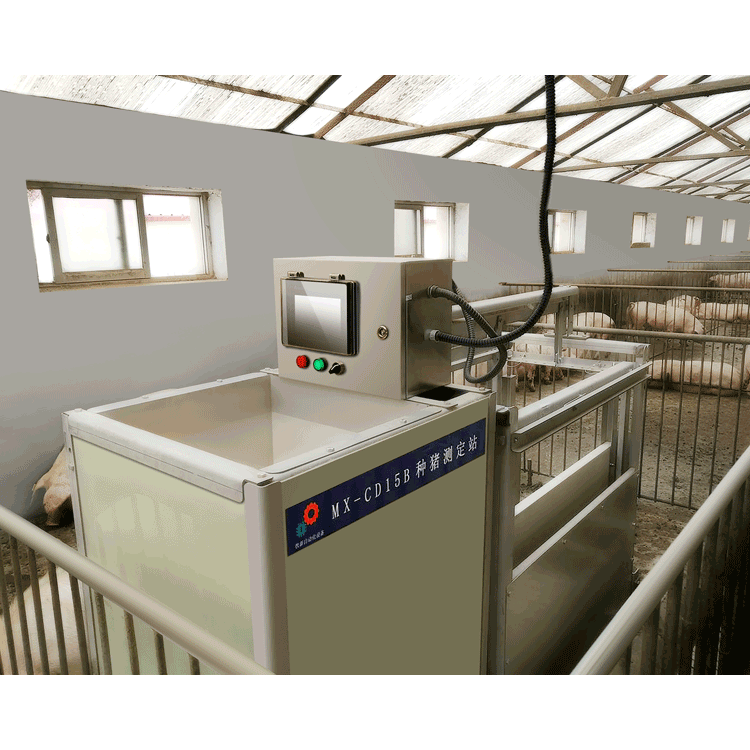

Pig Breeding Station Measurement Principle

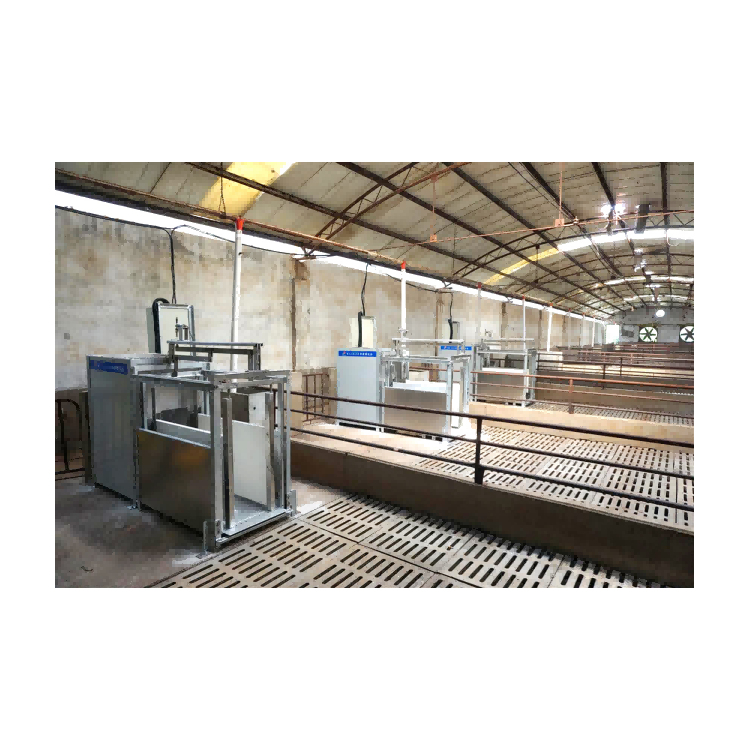

The Yangzhou Muxin intelligent boar testing system utilizes RFID passive electronic ear tags for identification, recognizing each individual pig entering the station and dynamically and continuously measuring and recording their feeding process. Each testing pen in the system is equipped with a testing station, which can accommodate 12 to 15 testing pigs. When the testing boars with electronic ear tags enter the testing station to feed, the station immediately identifies the electronic ear tag number. Based on the ear tag, a testing record is established for each individual. Upon the end of the feeding process, the system automatically calculates, records, and measures the time of entry and exit to the testing station, as well as the amount of feed consumed. Simultaneously, the pigs stand on individual weight scales, which record the weight during the feeding. According to pig habits, each testing boar enters the testing station to feed approximately 12 to 15 times a day, sorted by grade. The system automatically accumulates the feed consumption of each pig for the day, updates the database, and uses the data from the computer-compiled weight measurements as the boar's daily weight. This data serves as the basis for calculating daily weight gain and feed conversion.
System Functionality
The sow growth performance automatic measurement system can accurately determine various precise data during the growth process of sows, automatically generate various reports, and automatically draw growth performance curves. It provides index parameters for sow selection and breeding, and can also compare and select feed formulas based on the precise data of actual feeding effects. It has created necessary conditions for improving the breeding and production levels of pigs in our country, and promoting the industrialization and upgrading of sow breeding in our country. The system has realized the following functions:
Automated control of feeding and measurement processes.
2. Automatic feeding pig recognition
3. Automatically identify the ear tag number of each pig, the start time of eating, the duration of eating, and the amount of food consumed, and calculate the daily food intake.
4. Automatically measure daily weight and calculate daily weight gain.
5. Automatically measure the age of chickens at 30Kg, 50Kg, and 100Kg.
6. Automatically calculate daily feed return.
7. Automatically generate daily measurement detail sheets.
8. Automatically generate daily age segment statistics tables.
9. Automatically generate measurement results reports.
10. Automated plotting of growth performance curves over the measurement period
Feature Highlights
Controller: PLC Master, Touch Screen
Power Supply: Distribution box 220V, equipment 24V, battery useable for over 8 hours after power failure
Equipment Power: 50W
Motor Model: Stepper Motor, Brushless, Maintenance-Free
Determine individual count: 15 pieces
Measurement Range: Standard above 25 kg, with specialized measurement equipment for breeding pigs (can be restricted feeding) Feed Scale Precision: Feed Scale Range 3000g, Weighing Error ≤ ±2g
Scale Accuracy - The weight scale has a range of 300.0 Kg with a weighing error of ≤ ±0.2 Kg.
Radio Frequency Identification (RFID): Inductive Distance: 20cm-25cm, Response Time ≤0.5ms
Display Information: Ear Tag, Weight, Feed Intake, Feed Conversion Ratio
Work Environment: Temperature: -10℃ to 50℃; Humidity: 15% to 80% RH
Primary Material: 304 Stainless Steel, PP Sheet
Data Transmission: RS485 between measurement stations, VPN between measurement fields; data accessible via mobile phone.
Key Features
Automatically peel, automatically deduct faeces gross weight
The metal body is entirely made of 304 stainless steel.
Field operations utilize a touch screen, featuring rich display content with multi-level screens and simple operation.
Data transmission viewing is simple and convenient.
Data from the measuring station is uploaded to Alibaba Cloud via the internet, allowing for data viewing through a browser without the need for software installation. Data can also be accessed on mobile devices, and interfaces can be provided for direct calls by breeding software like Fengtong.
