Principles of boar testing station

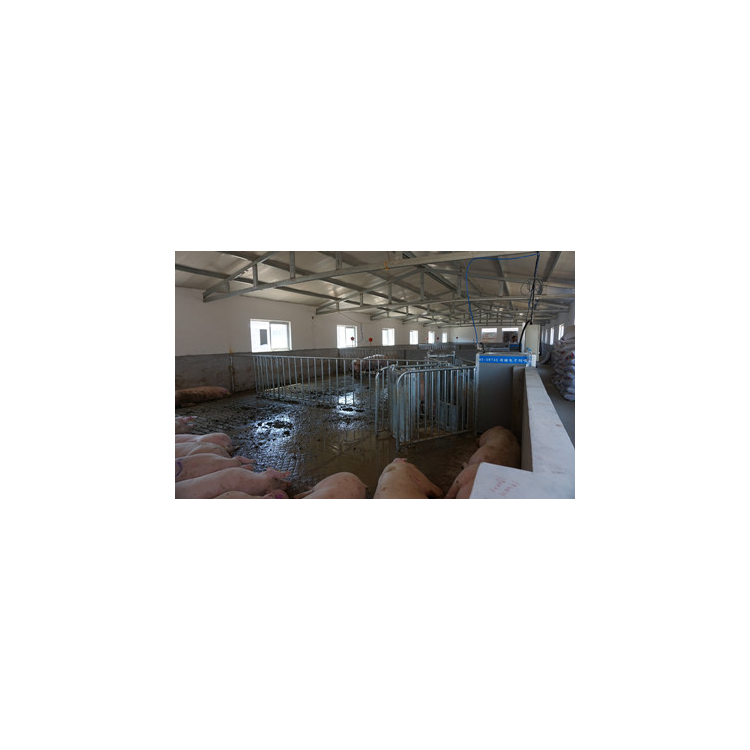

The Yangzhou Muxin Intelligent Pig Testing System utilizes RFID radio frequency passive electronic ear tags for identification, recognizing the individual identity of each pig entering the station, and dynamically measuring and recording their feeding process continuously. Each testing pen in the system is equipped with a testing station, which can accommodate 12 to 15 testing pigs. Upon the entry of testing boars with electronic ear tags into the testing station for feeding, the station immediately identifies the electronic ear tag number of the testing boar. Based on the ear tag, the station establishes a testing record for each individual. Upon completion of the feeding process, the system automatically calculates, records, and measures the time of entry and exit of the testing station for the boars, as well as their feed intake. Simultaneously, the pigs stand on individual weighing scales while feeding, which records their weight during the feeding. According to the pigs' habits, each testing boar enters the testing station for feeding approximately 12 to 15 times daily, sorted by grade. The system automatically accumulates the feed intake of each boar for each feeding into a daily total, updates the database, and uses the computer-summarized and analyzed data of each pig's weight observed during each monitoring as the daily weight of the testing boars. This data serves as the basis for calculating daily weight gain and feed conversion rates.
System Functionality
The sow growth performance automatic measurement system can accurately determine various precise data during the growth process of sows, automatically generate various reports, and automatically draw growth performance curves. It provides index parameters for sow selection and breeding, and can also compare and select formula feed based on the precise data of actual feeding effects of feed. It creates necessary conditions for improving the breeding and production levels of pigs in our country, and promoting the industrialization and upgrading of sow breeding in our country. The system achieves the following functions:
Automated feeding and measurement processes.
2. Automatic feeding pig recognition
3. Automatically identify the ear tag number, start time, duration, and intake volume of each pig's feeding, and calculate the daily intake volume.
4. Automatically measure daily weight and calculate daily weight gain.
5. Automatically measure the age of chickens weighing 30Kg, 50Kg, and 100Kg.
6. Automatically calculate daily feed return.
7. Automatically generate daily measurement detail sheets.
8. Automatically generate daily age segment statistics.
9. Automatically generate measurement result reports.
10. Automatic plotting of growth performance curves over the measurement period
Features
Controller: PLC Host, Touch Screen
Power Supply: Distribution box 220V, equipment 24V, battery usage for over 8 hours after power failure
Equipment Power: 50W
Motor Model: Stepper Motor, Brushless, Maintenance-Free
Determine individual count: 15 pieces
Measuring Range: Standard for 25 kg and above, with specialized measuring equipment for breeding pigs (restraining feed intake available); Feed Scale Precision: Feed Scale Range 3000g, Weighing Error ≤ ±2g
Scale Accuracy - The weight scale has a range of 300.0 Kg with a measurement error of ≤ ±0.2 Kg.
RFID: Inductive Distance: 20cm-25cm, Response Time ≤0.5ms
Display Information: Ear Tag, Weight, Feed Intake, Feed-to-Meat Ratio
Work Environment: Temperature: -10℃ to 50℃; Humidity: 15% to 80% RH
Primary Material: 304 Stainless Steel, PP Sheet
Data Transmission: RS485 between measurement stations, VPN between measurement fields, data accessible via mobile phone
Key Features
Automatically peels and deducts the fecal gross weight
The main body is made entirely of 304 stainless steel.
On-site operations use a touch screen with rich display content, featuring multi-level screens for easy operation.
Data transmission viewing is simple and convenient.
Data from the measurement station is uploaded to Alibaba Cloud, and can be viewed through a browser without the need for software installation. Data is accessible on mobile devices, and interfaces can be provided for direct use by breeding software like Fengdon.
