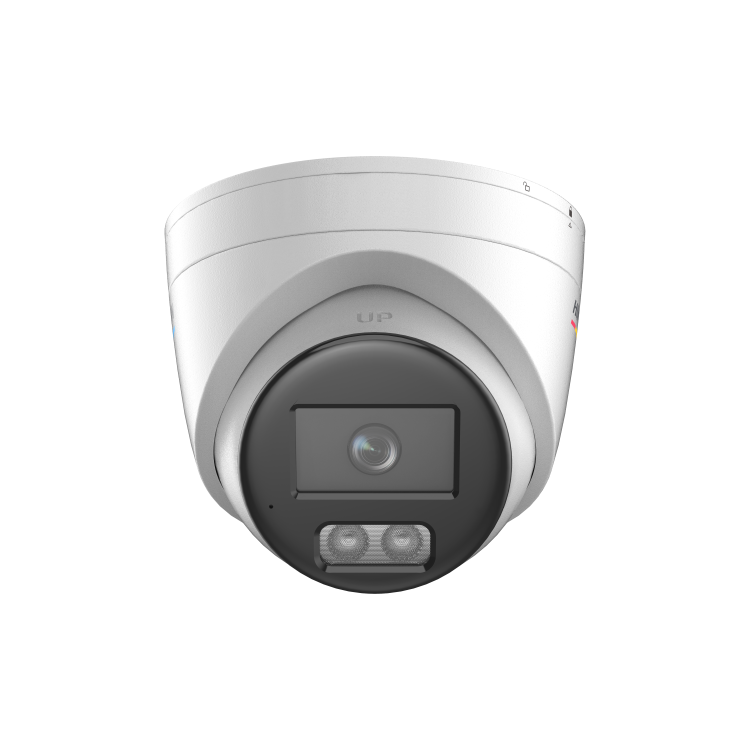

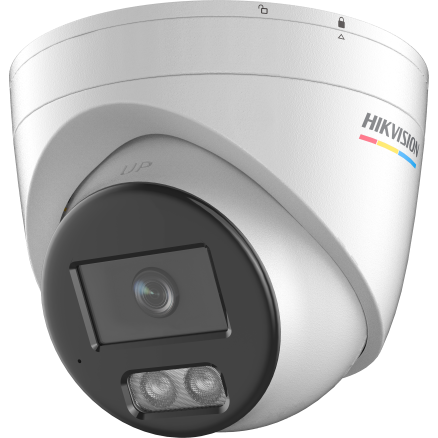

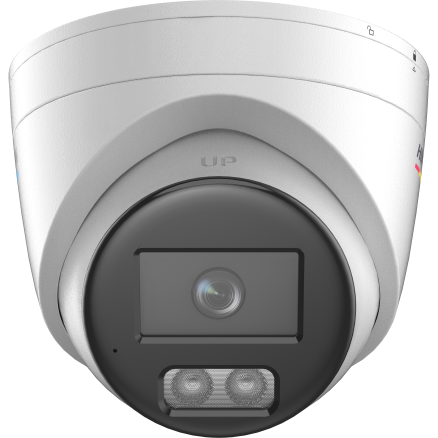

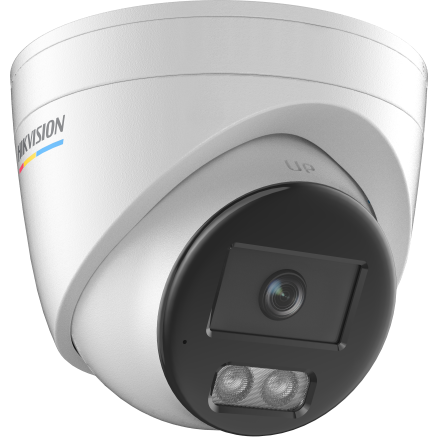

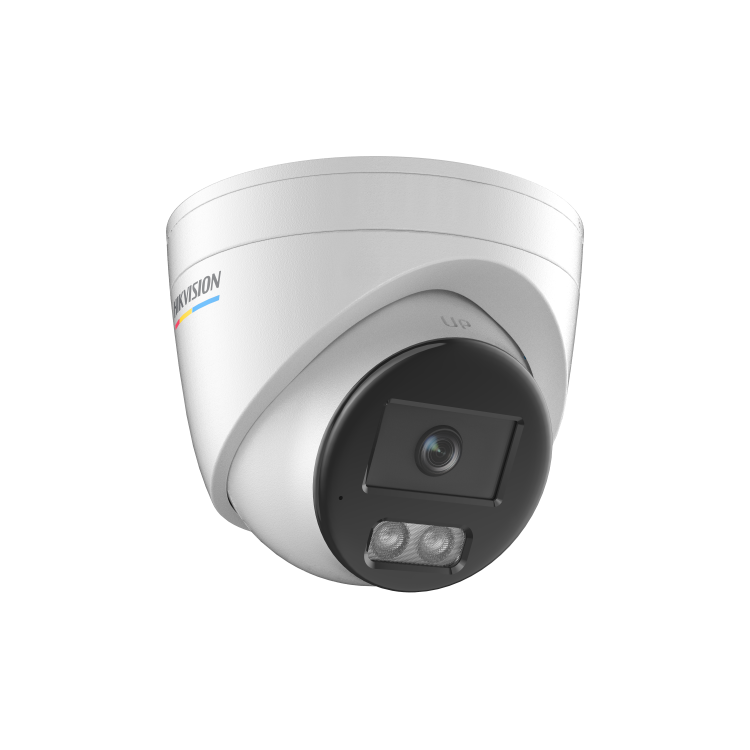

• Full-color high-sensitivity sensor, F1.0 ultra-wide aperture lens, providing clearer video stream input
• Maximum resolution up to 3200 × 1800 @ 20 fps
• Supports ROI (Region of Interest) enhanced encoding, compatible with Smart265/264 codecs, and can adaptively adjust bit rate distribution based on the scenario, effectively saving storage costs.
• Backlight compensation supported, strong light suppression, 3D digital noise reduction, 120 dB wide dynamic range
• Supports soft light fill, with a maximum照射 distance of 30 m
• Built-in 1 microphone
• Meets IP66 dustproof and waterproof design, with high reliability
Video
Maximum Image Size:
3200 × 1800
Main Stream Frame Rate Resolution:
50 Hz：20 fps（3200 × 1800，2560 x 1440，1920 × 1080，1280 × 720）
Sub-code stream frame rate resolution:
50 Hz：20 fps（1280 × 720，640 × 480，640 × 360）
Video Compression Standards:
Main Stream: H.265/H.264, supports super intelligent coding; Sub Stream: H.265/H.264/MJPEG
Video Compression Bitrate:
32 Kbps~16 Mbps
H.264 Encoding Type:
baseLine Profile/Main Profile/High Profile
H.265 Encoding Type:
Main Profile
Bit Rate Control:
Set bit rate, variable bit rate
SVC：
Support
ROI：
Support for setting 1 fixed region for the main stream
Event
Alarm Triggered:
Motion Detection (with human shape detection), Anomaly
Smart Event:
Area intrusion detection, boundary breach detection
Audio
Audio Compression Standards:
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Compression Bitrate:
64 Kbps（G.711 ulaw/G.711 alaw）/16 Kbps（G.722.1）/16 Kbps（G.726）/32~160 Kbps（MP2L2）/16~64 Kbps（AAC-LC）
Audio Sampling Rate:
8 kHz/16 kHz
Audio Environmental Noise Filtering
Support
Internet Transmission
Network Protocol:
TCP/IP，ICMP，HTTP，HTTPS，FTP，DHCP，DNS，DDNS，RTP，RTSP，RTCP，NTP，UPnP，SMTP，IGMP，QoS，IPv6，IPv4，UDP，Bonjour，SSL/TLS
Simultaneous preview routes:
Up to 6 channels
Interface Protocol (API):
Open Network Video Interface, ISAPI, SDK, GB28181 (2016)
User Management:
Up to 32 users with three-tiered user permission management: Administrator, Operator, and Regular User
Network Storage:
Supports NAS (supports both NFS and SMB/CIFS)
Client:
iVMS-4200
Browser:
Use Local Service Preview: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
Image Settings:
Mirror, video masking, saturation, brightness, contrast, sharpness, AGC, white balance adjustable via client or browser
Day/Night Switch Mode
Day and night, automatic and timed switch
Image Enhancement:
Backlight compensation, strong light suppression, 3D digital noise reduction
Interface
Internet:
1 RJ45 10/100 M Auto-negotiating Ethernet Port
Audio:
1 built-in microphone
Camera
Sensor Type:
1/1.8" Progressive Scan CMOS
Minimum Illuminance:
Color: 0.0005 Lux
Shutter:
1/3 s~1/100,000 s
Wide Dynamic Range
120 dB
Adjustable Angle:
Horizontal: 0°~360°, Vertical: 0°~75°, Rotation: 0°~360°
Lens
Focal Length & Field of View:
2.8 mm: Horizontal field of view: 104°, Vertical field of view: 55°, Diagonal field of view: 127° 4 mm: Horizontal field of view: 92°, Vertical field of view: 46°, Diagonal field of view: 112° 6 mm: Horizontal field of view: 56°, Vertical field of view: 30°, Diagonal field of view: 66°
Lens Size Interface:
M16
Aperture Type:
Fixed Aperture
Maximum Aperture Number:
F1.0
Depth of Field Range:
2.8 mm：3.4 m~∞ 4 mm：3.8 m~∞ 6 mm：8.4 m~∞
Fill Light
T8 Fluorescent Light Tube
Soft Lighting
Fill Light Distance:
Up to 30 m
Anti-overexposure protection:
Supported
Certification
Protection:
IP66
Standard Specifications
Leverage Mode:
Upload to FTP/NAS, Upload Center, Email, Video, Screenshot
Product Dimensions:
Ø129.2 × 97.1 mm
Packaging Dimensions:
165 × 165 × 115 mm
Equipment Weight:
460 g
Net Weight with Packaging:
750 g
Startup and operating temperature and humidity:
-30 °C to 60 °C, humidity less than 95% (non-condensing)
Universal Functions:
Heartbeat, password protection, watermark, pixel calculator
Restore to factory settings:
Supports client or browser recovery
Current and Power Consumption:
DC: 12V, 0.58A, Max Power Consumption: 7.0W PoE: IEEE 802.3af, Class 3, Max Power Consumption: 8.0W
Power Supply Method:
DC: 12V ± 25%, with reverse polarity protection; PoE: IEEE 802.3af, Class 3
Power Interface Type:
Ø5.5mm round hole
