• Compatible with network cameras adhering to ONVIF, RTSP, and GB28181 standards
• Supports preview, storage, and playback of high-definition network video up to 1200W pixels
• Supports H.265, Smart265, H.264, and Smart264 encoding with front-end adaptive access
• Supports IPC centralized management, including IPC parameter configuration, information import/export, and upgrade functions
• 1 HDMI port, 1 VGA port, supporting 4K+1080P dual output
• Supports instant replay function, allowing the current recording of a specified channel to be replayed under the preview screen without affecting the preview of other channels.
• Support synchronized playback and multi-channel synchronized reverse playback
• Supports lock protection for critical video files
• Supports two storage modes: Hard Disk Quota and Hard Disk Group, allowing for different recording save capacities or cycles to be allocated to various channels.
• Supports 2 SATA interfaces
• Supports GB28181, ISUP, and Foscam protocol access platforms
• Supports personnel and vehicle classification search with associated video playback
• Supports perimeter detection functions such as regional intrusion, boundary crossing detection, entering a region, and leaving a region
• Supports intelligent image search functionality, when paired with a text search camera, can quickly retrieve targets from device video recordings
• Features intelligent text search, supports open semantic search, simply input text via the text search camera for quick retrieval
Master Control Unit
Intelligent Analysis
Target List Database:
Supports 16 whitelist databases, with a capacity of 50,000 cards per database.
Target Capture:
1 Lane (8MP) Video Stream
Target Comparison:
8-image stream
Perimeter Security:
2 streams (4MP) video or 8 streams of images
Intelligent pedestrian and vehicle detection system
8-channel (8MP) video stream
Smart Text Search:
8 channels
Intelligent Image Search:
8-way
Audio Parameters
Audio Decoding Format:
G.711ulaw,G.711alaw,G.722,G.726,AAC,MP2L2,PCM
Audio Output:
1 Road, RCA Interface
Voice Intercom Input:
1st Road, RCA Connector
Hard Drive Management
Pallet position:
2 SATA interfaces
Single-disc Capacity:
Maximum support 12TB
Network Management
Network Protocol:
HTTPS, UPnP, SNMP, NTP, SADP, SMTP, PPPoE, IPv6

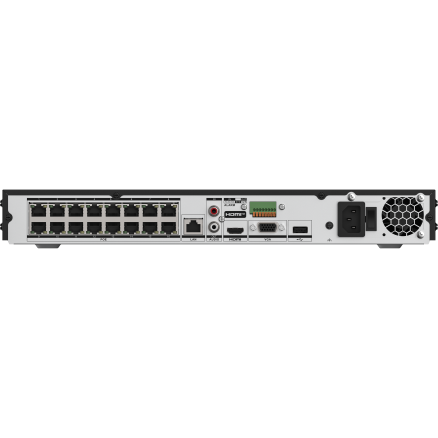

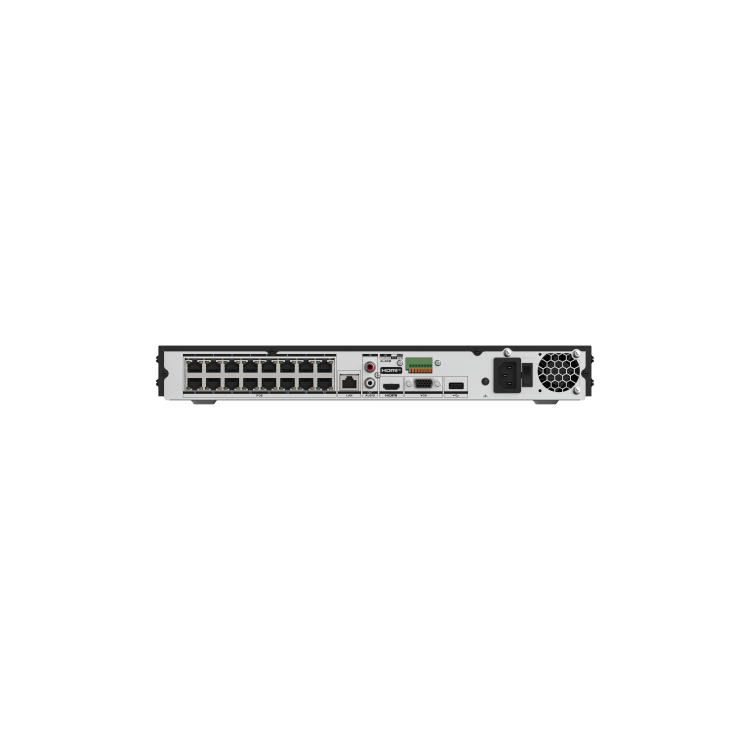

External Interface
Network Interface:
1 piece, RJ45 10/100/1000Mbps Auto-Negotiating Ethernet Port
USB Port:
1 USB2.0 (front), 1 USB2.0 (rear)
Alarm Input:
4 channels, switch quantity (0~5V high and low level)
Alarm Output:
1st Road, Relay
PoE
PoE interface:
8 units, RJ45 10/100Mbps auto-sensing Ethernet port
PoE Standard:
IEEE 802.3af/at
PoE Output Power:
≤120W
General Specifications
Power specifications:
AC 200V-240V,180W
Power Consumption (excluding hard drive):
≤15W
Operating Temperature:
-10℃ ～55℃
Operating Humidity:
10% RH to 90% RH (no condensation)
Case Type:
1U 380 Series Enclosure
Weight (without hard drive):
≤2.5kg
Chassis Dimensions:
384mm (width) × 315mm (depth) × 52mm (height)
Packing List:
Main unit ×1, Quick Start Guide ×1, Adapter ×1, Power cable ×1, SATA data cable ×2, SATA power cable ×1, Network cable ×1, Mouse ×1, Screws (various)
Other
Smart Engine Unit
System Parameters
Number of video access lines:
8-way
Network Input Bandwidth:
80Mbps
Network Output Bandwidth:
160Mbps
Video Resolution:
12MP/8MP/7MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Video Parameters
Video Output:
1 HDMI port, 1 VGA port; supports up to 4K+1080P dual output
HDMI Output:
Resolution: 4K (3840×2160)/30Hz, 2K (2560×1440)/60Hz, 1080P (1920×1080)/60Hz, UXGA (1600×1200)/60Hz, SXGA (1280×1024)/60Hz, 720P (1280×720)/60Hz, XGA (1024×768)/60Hz
VGA Output:
Resolution: 1080P (1920×1080) / 60Hz, UXGA (1600×1200) / 60Hz, SXGA (1280×1024) / 60Hz, 720P (1280×720) / 60Hz, XGA (1024×768) / 60Hz
Master Output Split Screen
HDMI: 1/2/4/6/8/9 Picture
Auxiliary Mouth Split Screen
VGA: 1/2/4/6/8/9 Screens
Video Decoding Format:
H.265,Smart265,H.264,Smart264
Decoding Capability:
24×1080P (12×1080P with Smart enabled)
Local Sync Playback:
Up to 8 channels
