• Compatible with network cameras that meet ONVIF, RTSP, and GB28181 standards
• Supports preview, storage, and playback of high-definition network videos up to 32MP resolution
• Supports H.265, Smart265, H.264, Smart264 encoding front-end adaptive access
• Supports IPC centralized management, including IPC parameter configuration, information import/export, and upgrade functions
• 2 HDMI ports, 2 VGA ports, supports dual 4K HDMI output
• Supports instant replay function, allowing the current recording of a specified channel to be replayed under the preview screen without affecting other channel previews.
• Supports up to 16-channel synchronized playback and multiple synchronized reverse playback
• Supports locking protection for critical video files
• Supports both hard disk quota and hard disk group storage modes, allowing different recording save capacities or cycles to be allocated to different channels.
• Supports 16 SATA ports, 1 eSATA port
• Dual Gigabit Ethernet cards, supporting network fault tolerance and multi-homing settings, etc.
• Supports GB28181, ISUP, and Foscam protocol access platforms
• Supports network detection functions (network traffic monitoring, packet capturing, network connectivity)
• Supports personnel and vehicle category search with associated video playback
• Supports perimeter detection functions including regional intrusion, boundary crossing detection, entry into a region, and exit from a region.
• Supports intelligent image search functionality, paired with the intelligent search camera, allows for quick retrieval of targets in device video recordings.
• Supports intelligent text search function, supports open semantic search, simply input text via the smart search camera for quick retrieval
Master Control Unit
Intelligent Analysis
Target List Database:
Supports 16 list databases, each with a capacity of 50,000 entries.
Target Capture:
4 streams (2MP) video streams
Target Comparison:
16-image stream
Intelligent Text Search:
32 channels
Smart Image Search
32 lines
Perimeter Defense:
4 streams (2MP) video streams, full channel image streams
Audio Parameters
Audio Decoding Format:
G.711ulaw;G.711alaw;G.722;G.726;AAC;PCM;MP2L2
Audio Output:
2 pieces, RCA interface
Voice Intercom Input:
One, RCA Interface
Hard Drive Management
Bin Location:
16 SATA interfaces (supporting hot swapping of hard drives)
Maximum single disk capacity:
Maximum support 16TB
Array Type:
Not supported
Expanded Storage:
1 eSATA port
Network Management
Network Protocol:
IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, PPPoE

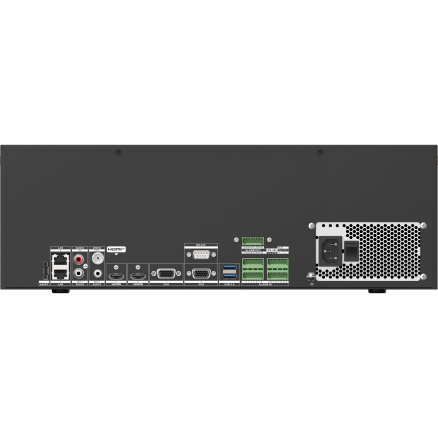

External Interface
Network Interface:
2 pieces, RJ45 10M/100M/1000M auto-sensing Ethernet port
Serial Interface:
1 port, RS-485 Full Duplex Serial Interface | 1 port, Standard RS-232 Serial Interface
USB Port:
2 USB 2.0 (front), 2 USB 3.0 (rear)
Alarm Input:
16 channels, switch quantity (0~5V high and low level)
Alarm Output:
9 circuit, relay, where the 9th circuit is the Ctrl 12V power output
General Specifications
Power specifications:
AC200V~240V，250W
Power Consumption (excluding hard drive):
≤50W
Operating Temperature:
-10℃～＋55℃
Operating Humidity:
10% to 90% RH, no frost, no condensation
Case:
3U rackmount case
Dimensions:
442mm (W) × 498mm (D) × 146mm (H)
Weight (excluding hard drive):
≤7.1kg
Others
Smart Engine Unit
System Parameters
Number of video access lines:
32-way
Network Input Bandwidth:
320Mbps
Network Output Bandwidth:
256Mbps
Video Resolution:
32MP/24MP/12MP/8MP/7MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Video Parameters
Video Output Mode:
2 HDMI ports, 2 VGA ports; supports dual 4K HDMI output from different sources
Preview Split Screen
1/2/4/6/8/9/16/25/36 screens
Auxiliary mouth split screen:
1/2/4/6/8/9/16/25/36 screens
HDMI Output:
HDMI1：4K（3840×2160）/30Hz，2K（2560×1440）/60Hz，1080P（1920×1080）/60Hz HDMI2：4K（3840×2160）/30Hz，2K（2560×1440）/60Hz，1080P（1920×1080）/60Hz
VGA Output:
VGA1：1080P（1920×1080）/60Hz VGA2：1080P（1920×1080）/60Hz
Video Decoding Format:
H.265,Smart265,H.264,Smart264
Decoding Capability:
32×1080P (20×1080P with Smart ON)
Live Replay:
Up to 16 channels
