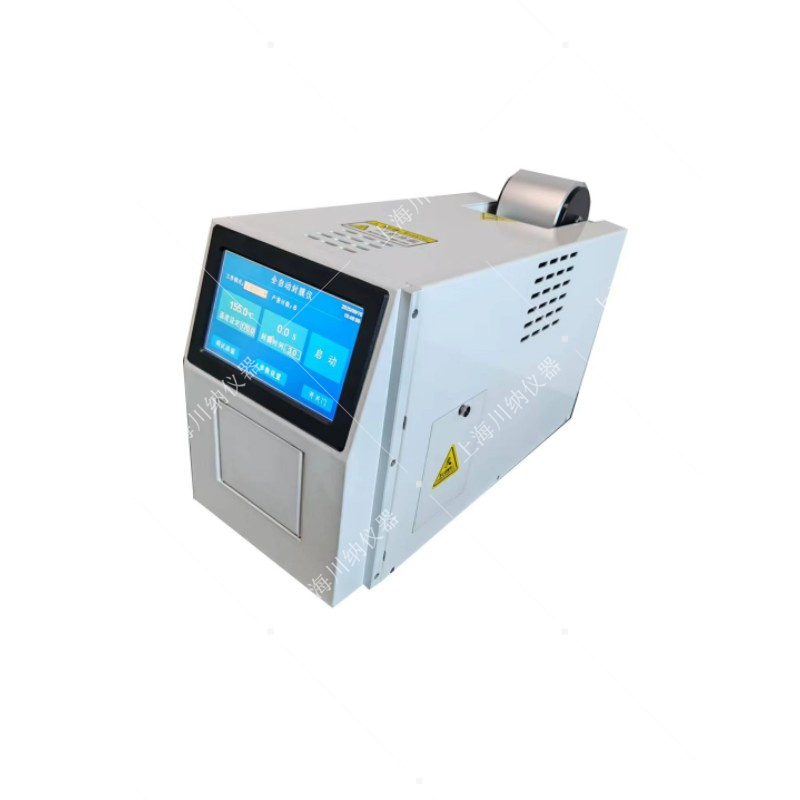

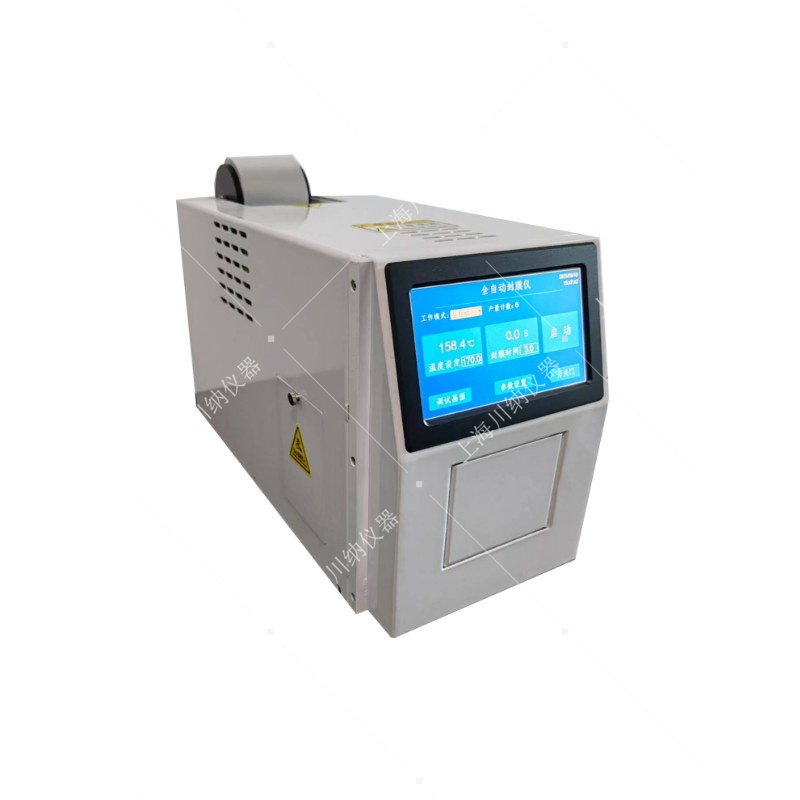

Fully Automatic Sealing Film Machine CNZFM-2000, Compatible with QPCR Cold Sealing FilmOne of its core advantages lies in its professional compatibility with various mainstream QPCR cold-seal films. It achieves a flat, secure, and bubble-free seal for standard 96-well or 384-well QPCR plates, solely through precise pressure and temperature control systems, without the need for heating. This feature fully meets the critical requirements of all QPCR experiments based on fluorescent dyes or probes: it ensures absolute airtightness to prevent evaporation and cross-contamination, while also completely avoiding issues such as reagent evaporation, denaturation, or film deformation that could arise from heating, providing the primary guarantee for the accuracy and reproducibility of downstream amplification reactions.

This exceptional compatibility with QPCR cold-seal membranes not only expands the application range of the equipment but also significantly enhances the efficiency and standardization of laboratory operations. Operators no longer need to manually adjust complex heating temperature and time parameters based on different membrane materials. The CNZFM-2000's automated program allows for a one-button, standardized sealing process. Each sealing pressure is uniform and consistent, ensuring a highly uniform sealing effect among all wells on the reaction plate, eliminating the uncertainty of manual operation. This means higher throughput, fewer operational discrepancies, and more reliable result quality for high-throughput detection, clinical diagnosis, or large-scale experiments requiring continuous sealing of multiple plates.

Selecting the CNZFM-2000 essentially introduces a highly reliable automated quality control step into the critical QPCR experimental process. Its stable compatibility with cold-sealing film technology directly safeguards the integrity of precious samples and reagents in the early stages of reaction. The stability and reproducibility of the entire machine design ensure that experimental results are not affected by the fluctuations of the sealing step, minimizing human error. Therefore, it is not just a simple packaging tool, but also a crucial aid for modern molecular laboratories to achieve process standardization, enhance data reliability, and ensure a successful experiment on the first try.

All-in-One Sealing Machine CNZFM-2000, Compatible with QPCR Cold Sealing FilmKey Features:

1. Sealed and compatible with QPCR cold-sealing films; users can freely set and choose to use.

2. The software design features an intuitive, easy-to-learn, and user-friendly color screen interface. One-touch startup with real-time display during operation.

3. Compatible with various sizes of microplates, deep well plates, 384, 48, 96 PCR plates, 8-tube strips, PCR plates, enzyme-linked plates, cell culture plates, etc.

4. Utilizes roll film feeding for continuous heat sealing.

5. Microprocessor-controlled temperature with precise accuracy, ensuring consistent sealing film effect with an even heat-sealing plate structure.

7. Adapter Options: Available with various types of adapters, offering a wider range of compatible consumables and broader application of the instrument.

8. Can be set for automatic entry into deep sleep mode at a specified time.

Automatic Sealing Film Machine CNZFM-2000 Compatible with QPCR Cold Sealing FilmTechnical Specifications:

Model: CNFM-2000
2. Applicable Range: Various sizes of deep well plates, 384, 48, 96 PCR plates, 8-tube PCR plates, enzyme-linked plates, cell culture plates, and more.
3. Sealing Film Materials: Piercing Film, Aluminum Foil, Strong Heat Seal Film, Transparent Film, Breathable Film, Tear-Off Film, Pressure-Sensitive Film, etc.
4. Sheet Material: PP (Polypropylene) / PS (Polystyrene) / PE (Polyethylene).
5. Film Type: 78mm-80mm roll film compatible with sheet film sealing.
6. Heat-seal Height: Adaptive height auto-adjustment.
7. Heating Rate: 60 seconds to 100℃, 300 seconds to reach 280℃
8. Automatic loading/unloading: Smart motor control for automatic opening and closing of the cabin door.
9. Laminating Speed: 15-20 seconds.
10. Heat Sealing Temperature: Adjustable from room temperature to 280°C.
11. Temperature Control Accuracy: ±1°C.
12. Shrink Wrap Time: adjustable from 0.1 to 10 seconds.
13. Gas Source: Built-in gas source.
14. Energy-saving Function: Set time to automatically enter deep sleep mode.
15. Pollution Control: Enclosed operation, automatically discharged through the hatch upon completion of work.
