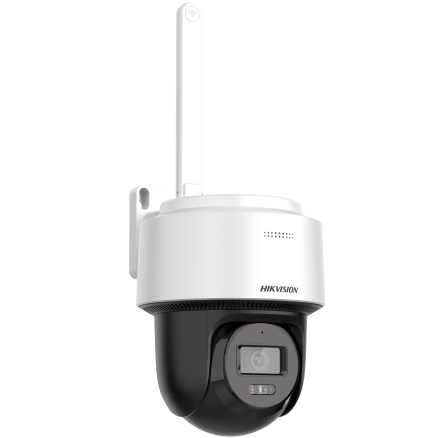

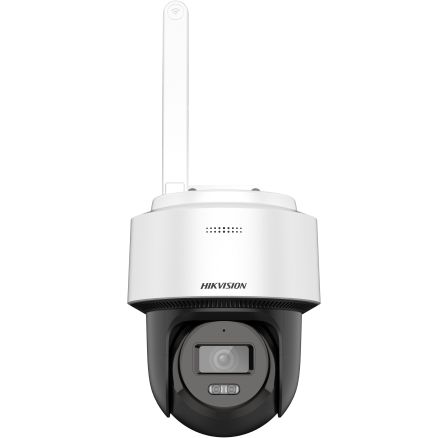

• Maximum resolution up to 2560 × 1440 @ 25 fps, capable of outputting real-time images at this resolution
• Supports digital wide dynamic range, backlight compensation, strong light suppression, 3D digital noise reduction, adaptable to various environments
• Features Wi-Fi capability with an external antenna, free from interference and obstructions, capable of transmitting up to 120 meters in open areas.
• Dual illumination support for white light/IR light, with white light reaching up to 25 m and IR light reaching up to 25 m
• 1 built-in microphone, 1 built-in speaker, supports two-way voice communication
• Meets IP66 dust and water resistance design, strong anti-interference capability
Basic Parameters
Sensor Type:
1/2.7″ Progressive Scan CMOS
Minimum Illuminance:
Color: 0.005 Lux
Backlight Compensation
Support
Wide Dynamic Range
Digital Wide Dynamic Range
High Light Suppression:
Support
3D Noise Reduction
Support
Image Settings:
Saturation, brightness, contrast, sharpness
Maximum Resolution:
2560 × 1440
Lens
Focal Length:
Fixed focal length
Field of View:
2.8 mm, Horizontal Field of View: 94°, Vertical Field of View: 49°, Diagonal Field of View: 114° 4 mm, Horizontal Field of View: 70°, Vertical Field of View: 35°, Diagonal Field of View: 85°
Maximum Aperture Number:
F1.6
Tripod
Number of preset points:
300 units
Range:
0°-345°
Vertical Range:
0°-80°
Horizontal Speed:
4~25°/s
Vertical Speed:
4~20°/s
Video
Master Stream Frame Rate Resolution:
50 Hz：25 fps（2560 × 1440，1920 × 1080，1280 × 720）
Sub-code stream frame rate resolution:
50 Hz：25 fps（768 × 432）
Video Compression Standard:
H.265/H.264
Video Compression Bit Rate:
32 Kbps~8 Mbps
H.264：
baseline Profile/Main Profile/High Profile
H.265：
Main Profile
Audio
Audio Compression Standards:
G.711/AAC-LC
Audio Compression Bitrate:
G.711alaw ：64Kbps;AAC-LC：16 kbps，32 kbps，64 kbps
Audio Sampling Rate:
8 kHz/16 kHz
Environmental Noise Filtration:
Support
Internet
Supported Protocols:
IPv4/IPv6，HTTP，Qos，DNS，NTP，RTSP，RTP，RTCP，TCP/IP，UDP，DHCP，Bonjour
Interface Protocol:
ISAPI, Hikvision SDK, GB/T28181 protocol, Open Network Video Interface
Wi-Fi
Wireless Standard:
IEEE 802.11 b/g/n/ax
Frequency Range:
2.4 GHz~2.4835 GHz
Channel Bandwidth:
20/40 MHz
Mixing Method:
IEEE802.11b：CCK，QPSK，BPSK IEEE802.11g：OFDM IEEE802.11n：OFDM IEEE802.11ax：OFDMA
Transmission Speed:
IEEE802.11b: Up to 11 Mbps IEEE802.11g: Up to 54 Mbps IEEE802.11n: Up to 150 Mbps IEEE802.11ax: Up to 114 Mbps
Effective Transmission Distance:
120 m (unobstructed and undisturbed; varies by environment)
Interface
Audio:
1 built-in microphone, 1 built-in speaker
Network Interface:
RJ45 network port, auto-sensing 10 M/100 M network data
Reset:
Support
Fill Light
Lighting Type:
Dual support for infrared and white light supplementary lighting, with intelligent supplementary lighting capability
Lighting Distance:
White light extends up to 25 m, infrared light up to 25 m
Anti-overexposure to supplementary lighting
Supported
Wavelength Range:
Infrared 850 nm
General Specifications
Operating temperature and humidity:
Turn on supplemental lighting: -30 °C to 40 °C, humidity less than 95% (no condensation); Turn off supplemental lighting: -30 °C to 50 °C, humidity less than 95% (no condensation)
Storage humidity:
-30 °C to 50 °C, humidity less than 95% (non-condensing)
Environmental Usage Instructions:
1. Do not use the equipment in environments with vibration or impact, such as vehicles, high-speed trains, ships, port cranes, and large-scale mining machinery, etc. 2. Avoid using the equipment in areas with severe corrosion, strong acids, high salinity, and alkalinity, such as offshore islands, offshore platforms, ships, chemical industries, fumigation, coastal areas (within 5 km), and other special corrosive environments. 3. Do not operate the equipment in strong electromagnetic interference environments, such as the main transmission direction of broadcast tower antennas, substation closing zones, near power transmission lines of the power grid, overhead contact wires, radar, medical nuclear magnetic resonance, and near antennas of 4G/5G/FM base stations, etc. 4. Do not use the equipment in extremely hot, cold, dusty, or high humidity conditions for extended periods. Refer to the working temperature and humidity requirements.
Universal Features:
Mirror, password protection, video masking, watermark technology
Power Supply:
Ø5.5mm round connector, DC: 12V ± 25%, 0.75A, Max power consumption: 9W, Reverse polarity protection supported *Customer needs to provide a DC12V, Ø5.5mm round connector power adapter
Dimensions:
Product Dimensions: 164 × 185.7 × 131.9 mm; Packaging Dimensions: 224 × 178 × 230 mm
Weight:
Unit Weight: 600 g, Package Weight: 900 g
Certification
Protection:
IP66, Waterproof against heavy rain
Event
Routine Event:
Motion Detection (Supports Human Detection), Anomaly
Alarm联动：
Upload Center, Audio Alarm, Capture Image
Agreement
Client:
iVMS-4200
System
Power-off Memory:
Support
Restore Factory Settings
Supports RESET button, client or browser resets
