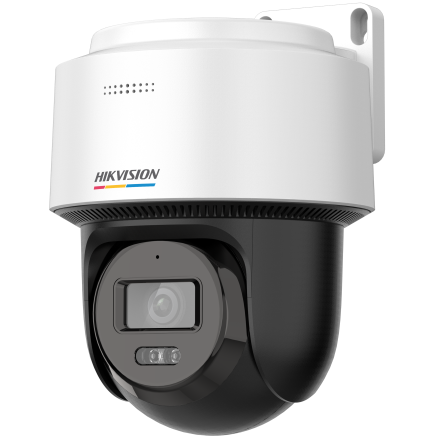

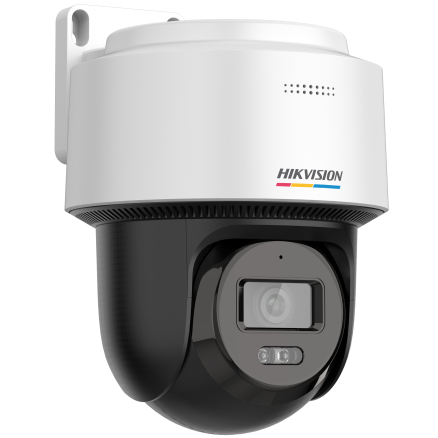

• Full-color high-sensitivity sensor, F1.0 ultra-wide aperture lens, providing clearer video input for smart applications
• Maximum resolution up to 1920 x 1080 @ 25 fps, capable of outputting real-time images at this resolution
• Supports digital wide dynamic range, backlight compensation, strong light suppression, 3D digital noise reduction, adaptable to various environments
• Features soft light fill, with a maximum illumination distance of up to 30 meters
• 1 built-in microphone, 1 built-in speaker, supports two-way voice communication
• Meets IP66 dust and water resistance design, strong anti-interference capability
Basic Parameters
Sensor Type:
1/2.7" Progressive Scan CMOS
Minimum Illuminance:
Color: 0.0005 Lux
Wide Dynamic Range
Digital Wide Dynamic Range
Lens
Focal Length:
Fixed focal length
Field of View:
2.8 mm, Horizontal Field of View: 106.1°, Vertical Field of View: 56.8°, Diagonal Field of View: 126.5°; 4 mm, Horizontal Field of View: 83.6°, Vertical Field of View: 44.6°, Diagonal Field of View: 99.1°
Maximum Aperture Number:
F1.0
Depth of Field Range:
2.8 mm：1.5 m~∞ 4 mm：2.1 m~∞
Tripod
Pre-set Points
300
Horizontal Range:
0°~345°
Vertical Range:
0°~80°
Horizontal Speed:
4~25°/s
Vertical Speed:
4~20°/s
Video
Maximum Resolution:
1920 × 1080
Main Stream Frame Rate Resolution:
50 Hz：25 fps（1920 × 1080，1280 × 720）
Sub-code stream frame rate resolution:
50 Hz：25 fps（640 × 480，640 × 360）
Video Compression Standard:
H.265/H.264/MJPEG
Video Compression Bitrate:
32 Kbps~8 Mbps
H.264 Encoding Type:
baseLine Profile/Main Profile/High Profile
H.265 Encoding Type:
Main Profile
Audio
Audio Compression Standards:
G.711/G.722.1/G.726/MP2L2/AAC-LC/PCM/MP3
Audio Compression Bit Rate:
64 Kbps（G.711ulaw/G.711alaw）/16 Kbps（G.722.1）/16 Kbps (G.726)/32 kbps-192 kbps（MP2L2）/8 Kbps~48 Kbps（PCM）/8Kbps~160Kbps（MP3）/16 Kbps~64 Kbps（AAC-LC）
Audio Sampling Rate:
8 kHz/16 kHz
Environmental Noise Filtering:
Support
Internet
Supported Protocols:
TCP/IP，DHCP，DNS，DDNS，NTP，HTTP，HTTPS，RTP，RTCP，RTSP，IPv4，IPv6，UDP，QoS，Bonjour
Interface Protocol:
ISAPI, Hikvision SDK, GB/T28181 protocol, Open Network Video Interface, ISUP 5.0
Interface
Network Interface:
RJ45 port, auto-sensing 10M/100M network data
Audio:
1 built-in microphone, 1 built-in speaker
Restore to factory settings:
Support
Fill Light
Tungsten Halogen Light Type:
Soft Light Bulb
Fluorescent Light Distance:
Up to 30 meters
Anti-overexposure protection:
Supported
General Specifications
Usage Environment Instructions:
1. Do not operate the equipment in vibration or impact environments such as vehicles, trains, ships, port cranes, and large mining machinery, etc. 2. Do not use the equipment in highly corrosive, acidic, or saline-alkaline areas like offshore islands, platforms, ships, chemical industries, fumigation, coastal areas (within 5 km), and other special corrosive environments. 3. Avoid using the equipment in environments with strong electromagnetic interference such as broadcast tower antennas, substation switchgear areas, near power transmission lines, overhead trolley collectors, radar, medical MRI, and near 4G/5G/FM base station antennas, which are prone to high-frequency radiation. 4. Do not use the equipment in extreme hot or cold, dusty, or long-term high humidity conditions; refer to the working temperature and humidity requirements.
Universal Features:
Password protection, video masking, watermark technology
Power Supply Method:
DC: 12V ± 25%, 0.75A, Max Power Consumption: 9W PoE: IEEE 802.3af, 0.3A, Class 3, Max Power Consumption: 10.5W *Please provide a DC 12V, Ø5.5mm round pin power adapter yourself.
Operating Temperature and Humidity:
Turn on the supplemental light: -30℃ to 40℃, humidity less than 95% (no condensation) Turn off the supplemental light: -30℃ to 50℃, humidity less than 95% (no condensation)
Dimensions:
Product Dimensions: 164 × 185.7 × 131.9 mm; Packaging Dimensions: 205 × 167 × 289 mm
Weight:
Equipment Weight: 600 g, Packaged Weight: 900 g
Certification
Protection:
IP66, Waterproof against heavy rain
Image Enhancement:
Backlight compensation, strong light suppression, 3D digital noise reduction
Image Settings:
Mirror, Saturation, Brightness, Contrast, Sharpness
Event
Routine Event:
Motion Detection, Anomaly
Alarm联动
Email, Upload Center, Upload FTP, Audio Alarm
