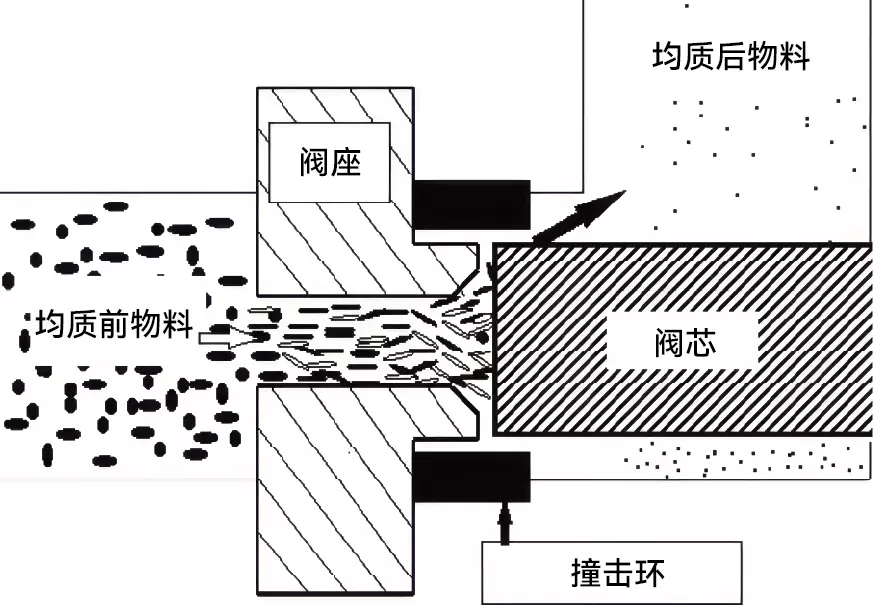

Operating Principle:

Material is transported to a size-adjustable valve group under the reciprocating motion of the plunger, where it is subjected to intense compression. As the material passes through a throttling slit at high speed, it impacts the homogeneous valve, generating cavitation, impact, and shearing effects, thereby achieving homogenization, emulsification, crushing, and dispersion of the material.

Product Features

Precision Blasting · Nanometric Homogenization

Ultra-High Pressure Dynamic Homogenization Technology (≤3000 bar)

Standard overvoltage and overload protection, mechanical pressure relief device

Customized Development of Exclusive Homogeneous Valve Assemblies

Equipment supports online cleaning and sterilization.

Intelligent touch control system, available with optional automatic control

Reliable, durable, and long-lasting stability

Full range meets all needs from laboratory research and development to pilot production.

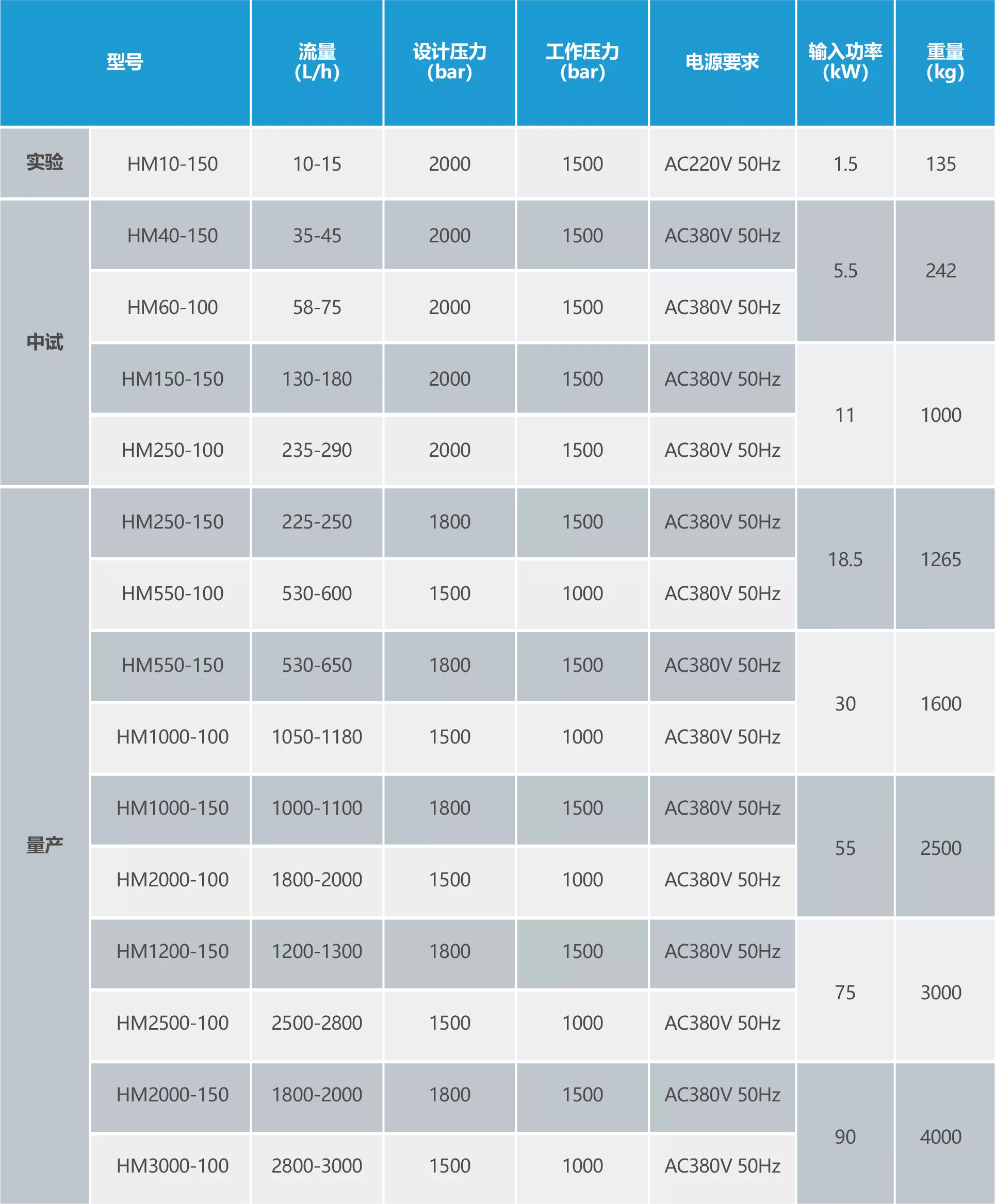

Product Specifications
