Features:

Due to the multi-directional movement of the blending drum, it facilitates numerous cross-mixing points within the drum, resulting in a high mixing effect with uniformity over 99.9%. The loading coefficient can reach up to 0.9 (typically 0.4-0.6 for conventional mixers), with a shorter mixing time and higher efficiency.

The machine's unique mixed drum design boasts a finely polished inner wall with no dead corners, ensuring no contamination of materials, easy discharge, and straightforward cleaning operation.

Operating Principle:

This machine, during operation, due to the multi-directional movement of the mixing drum, accelerates the flow and diffusion of various materials during the mixing process. At the same time, it avoids the phenomenon of material segregation and accumulation caused by centrifugal force in general mixers, ensuring a thorough mix with no dead spots, effectively maintaining the high quality of the mixed materials.

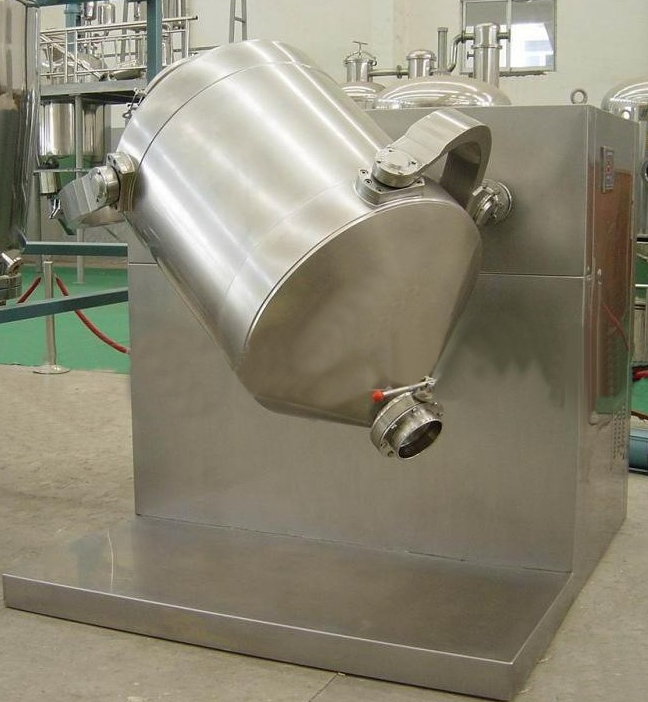

Structure: The machine is composed of the base, transmission system, electrical control system, multi-directional motion mechanism, and mixing drum. The mixing drum, which comes into direct contact with materials, is made of high-quality stainless steel and both the inner and outer walls are mirror-polished.

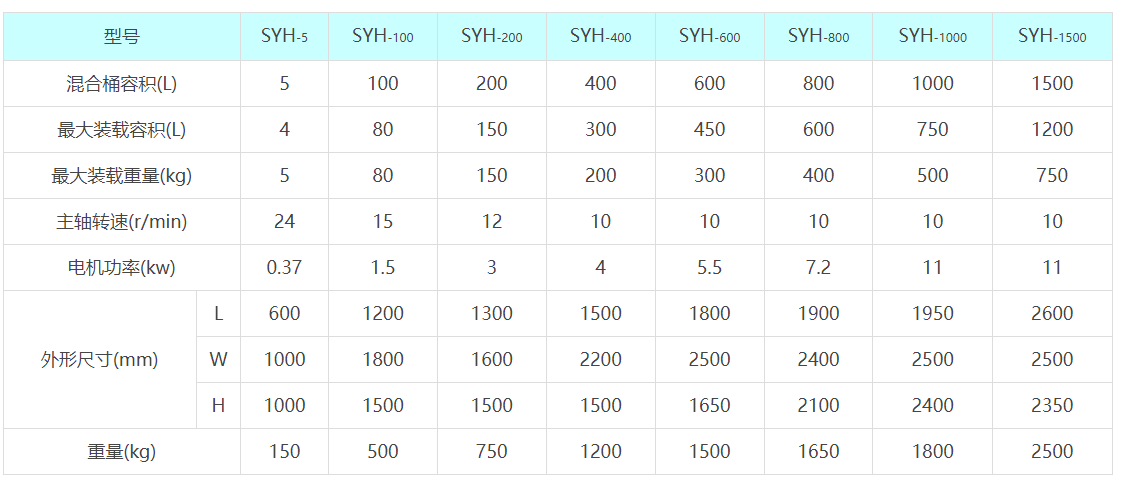

Technical Specifications:
