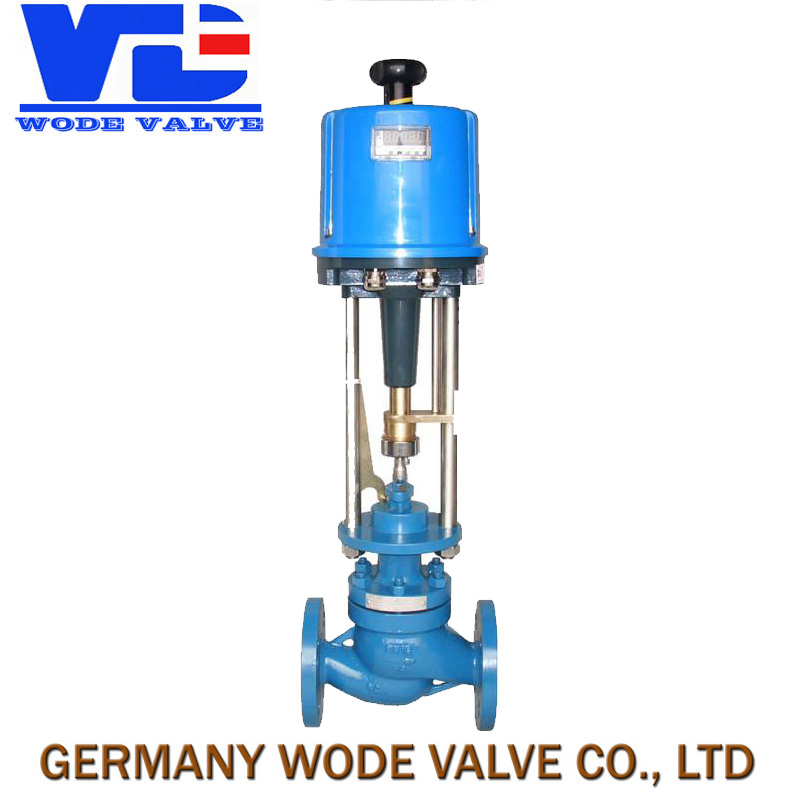

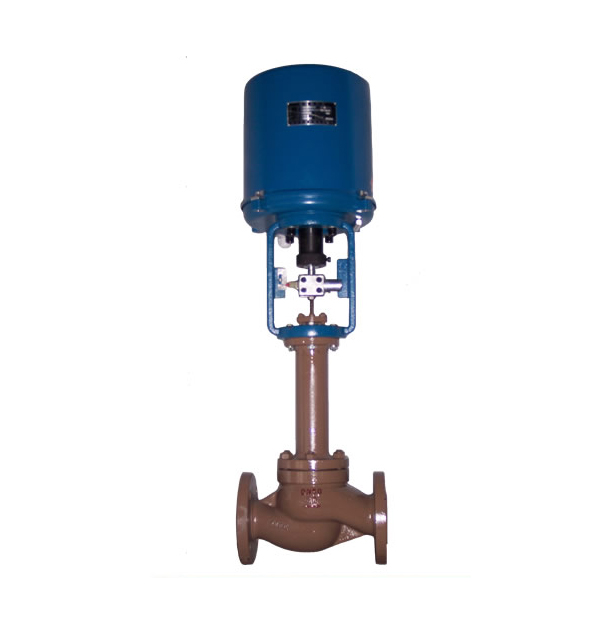

Imported Electric Bellows Control Valve
Import Electric Steam Regulating Valve, Bellows Sealed Regulating Valve, Bellows Regulating Valve Structure and Principle
1. Imported Electric Corrugated Pipe regulating valve Product Overview
Germany's VorwerkWODEOur imported electric corrugated tube regulating valve, by2SBSeries(OrPSLSeries)Electrical actuator and low flow resistance valve body assembly, electric actuator features an integrated structure with a servo amplifier, and input control signals(4-20mADCOr1-5VDC)The valve can be controlled to adjust the opening degree with power, achieving regulation of process parameters such as pressure, flow rate, liquid level, and temperature. The electric bellows regulating valve features an upper guidance structure, which is compact and efficient.SStreamlined channels with minimal pressure drop and high flow rates, wide adjustable range, and high precision flow characteristics. The electric bellows regulating valve features a bellows-sealed structure on the valve cover, suitable for the regulation of highly corrosive, flammable, explosive, volatile, and precious metal media. The electric bellows regulating valve is also applicable in vacuum conditions.
Import Electric Wavy Pipe Regulating Valve Primary Technical Specifications
（1Valve Body Parameters
Nominal Bore Size DN | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | |
Valve Seat Diameter dN | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | |
Rated Flow CoefficientKV | Single Seat | 11 | 17.6 | 27.5 | 44 | 69 | 110 | 176 | 275 | 440 | 630 | 1000 | 1600 |
Cage-like | 9 | 15 | 23 | 35 | 59 | 95 | 148 | 236 | 355 | 568 | 885 | 1260 | |
Sleeve | 10 | 16 | 25 | 40 | 63 | 100 | 155 | 250 | 370 | 580 | 900 | 1300 | |
Permitted Pressure Difference(MPa) | Single Seat | 3.2 | 3.0 | 2.0 | 1.8 | 1.5 | 1.4 | 1.0 | 0,7 | 0.6 | 0.5 | 0.3 | 0.28 |
Cage-style | 5.8 | 5.0 | 4.9 | 4.3 | 3.0 | 3.7 | 3.5 | 3.1 | 2.8 | 2,8 | 2.4 | 2.0 | |
Coupler | 6.4 | 5.2 | 5.2 | 4.6 | 4.6 | 3.7 | 3.7 | 3.5 | 3.1 | 3.1 | 2.6 | 2.2 | |
Rated Stroke | 16 | 25 | 40 | 60 | 100 | ||||||||
Valve body style | Direct Cast Ball Valve | ||||||||||||
Nominal Pressure | PN1.6、2.5、4.0、6.4MPaOrANSIClass150～Class600 | ||||||||||||
Flange Standard | GB/T9113、 JB/T79、HG20594and other standards | ||||||||||||
Connection Type | Flange(FF RF RTJ)Welding(SW BW)Thread(Applicable to1″Within) | ||||||||||||
Valve cover style | Bellows Seal Type-40～+350℃ | ||||||||||||
Cover type | Bolt-tensioned | ||||||||||||
Sealed packing material | VType PTFE, PPL, asbestos textile filler, graphite filler | ||||||||||||
Valve body material | Cast Steel(WCB)Stainless steel(CF8、CF8M、CF3、CF3M)Chromium-molybdenum steelWCB+F46 | ||||||||||||
Valve core style | Single Seat Plug Valve Core, Sleeve Type Valve Core, Caged Valve (High Pressure Difference) | ||||||||||||
Flow characteristics | Linear, equal percentage | ||||||||||||
Valve core material | Stainless Steel (304、316、316L) | ||||||||||||
Note: Germany Vard Regulating Valve for OxygenWODEValves are made of stainless steel and undergo degreasing treatment.
（2Actuator Parameters
Actuator Model | 3810、PSL、2SBRotork, Siemens, OMA |
Key Technical Parameters | Power Voltage:AC 220V、AC 380VSpecial Custom OrderDC 24V; (Others) |
Input Signal:4-20mAOr1-5V·DCOutput Signal:4-20mA·DCSpecial CustomizationRS485Communication Interface | |
Protection Grade: EquivalentIP65Explosion-proof marking:ExdⅡBT4OptionalBT6、CT4、CT6Hand-operated function: Handle | |
Ambient Temperature:-25～+70℃Ambient Humidity:≤95% |
Section 3: Import Electric Bellows Control Valve Structure Diagram
Note: Due to the website layout, please contact Ward's authorized agents for specific dimensions.
If you have any questions.Please call us, and we will certainly do our best to provide you with excellent service! If you need to inquire about more detailed product information, welcome to contact German Vorde.WODEAuthorized First-Level Distributor: Beijing Yongdebao Valve Co., Ltd.
