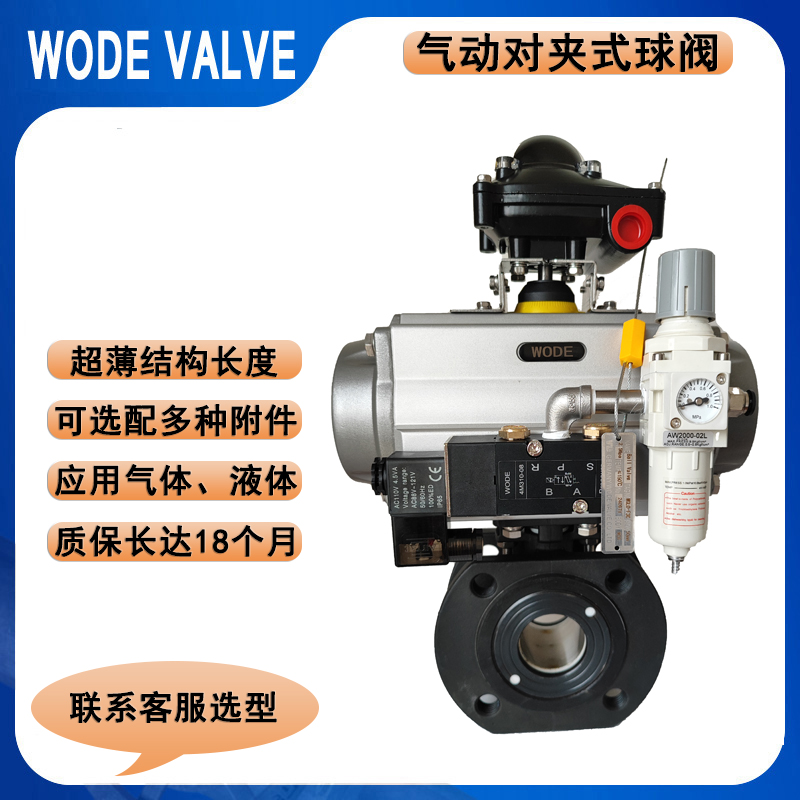

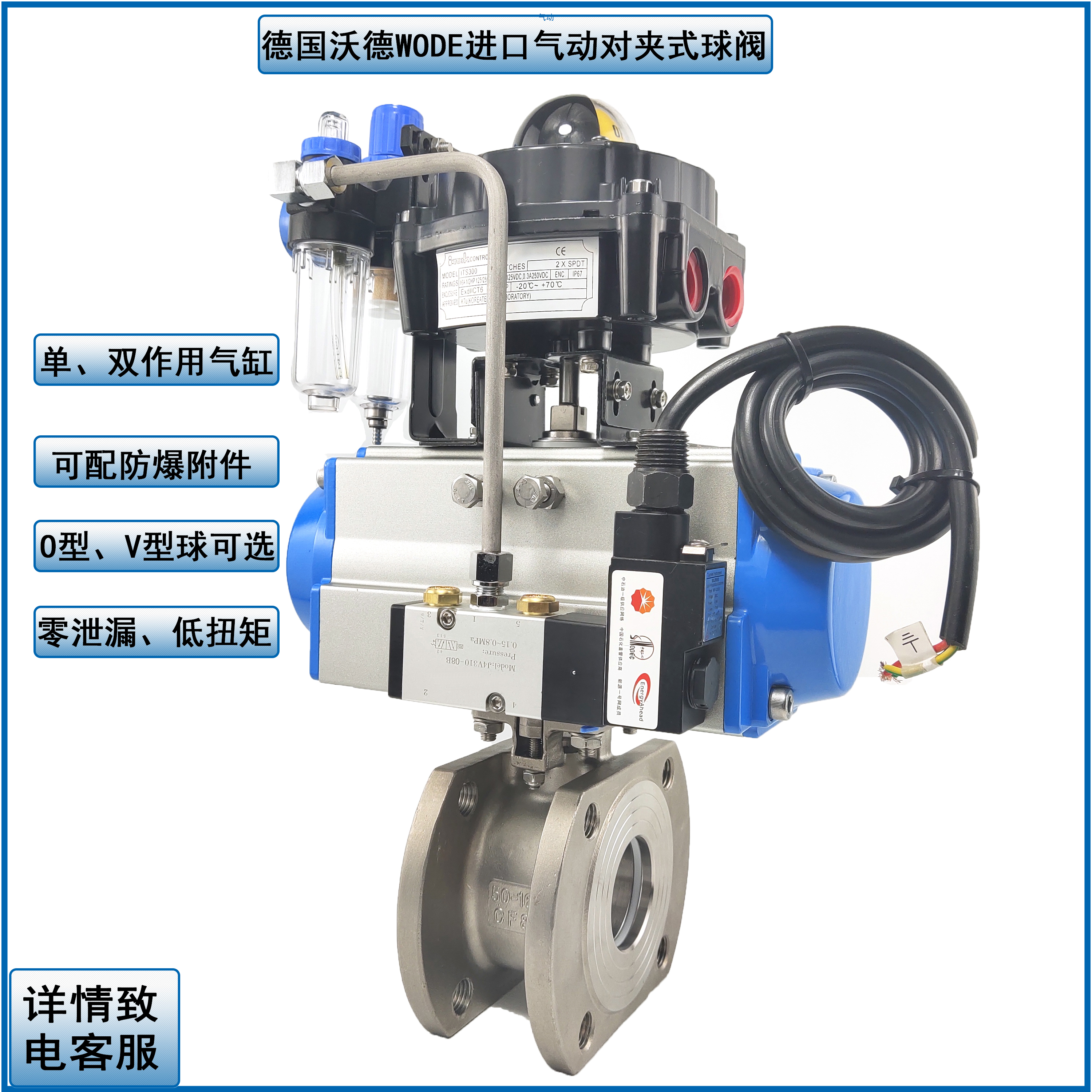

Imported Pneumatic Light-Type Wafer Ball Valves (Imported Pneumatic Ultra-Short Type Ball Valves, Imported Pneumatic Wafer Ball Valves, Imported Italian-Type Ball Valves)

Brand: German WODE

Imported pneumatic slim ball valves are the latest generation of ultra-short flange distance ball valves meticulously designed by engineers at WODE Valve Co. They feature V-shaped and O-shaped ball core channels, offering minimal fluid resistance, making them the least resistive among all valve types. These pneumatic slim ball valves are characterized by compact structure, small size, light weight, and easy installation. They are widely used in the oil, chemical, metallurgy, power plant, and light industry sectors for automatic regulation or cut-off control of oil, water, gas, and pulp or fibrous fluids.

Product Features

1. Pneumatic slim ball valve with an integral valve body without any pipe connections, thus unaffected by pipeline or bolt pressure, and since the valve body has no pipe connections, the pressure shell is not susceptible to pressure "abrupt changes."

2. Pneumatic slim ball valves have low fluid resistance; their resistance coefficient is equal to that of a pipe section of the same length.

3. The pneumatic slim ball valve body is shorter than a standard flanged ball valve, suitable for situations where multiple valves are required on the same pipeline in a factory.

Pneumatic Actuator

Utilizing the latest GTD or ATD series pneumatic actuators, featuring double-acting and single-acting (spring return) options, gear-driven for safety and reliability; large bore valves are equipped with AW series pneumatic actuators for fork-type transmission, with a rational structure and high output torque, available in both double-acting and single-acting versions.

1. Gear-type double piston, high output torque, compact size.

2. Cylinder made of aluminum alloy material, lightweight and aesthetically pleasing.

3. Manual operation mechanisms can be installed at the top and bottom.

4. Rack and pinion connection for adjustable opening angle and rated flow rate.

5. Actuators are available with signal feedback indication and various accessories for automated operation.

6. The IS05211 standard connection facilitates the installation and replacement of the product.

7. The adjustable set screws at both ends allow the standard product to have a ±4° adjustable range at 0° and 90°, ensuring synchronization accuracy with the valve.

Imported Pneumatic Thin-Wall Butterfly Ball Valve Technical Parameters and Performance

Pneumatic Slim Ball Valve Actuator Technical Specifications Pneumatic Slim Ball Valve Body Specifications

Type Double-acting piston and spring-return type Nominal Bore Size DN15～200mm

Gas Source Pressure Double-acting: 2-8bar / Single-acting: 4-8bar Nominal Pressure PN1.6、2.5、4.0、6.4MPa

Output Torque Double-acting: 4N•m ~ 10560N•m Valve shaft material Stainless Steel

Single-acting: 7N•m to 2668N•m Valve Body Material Carbon steel, 304/316/316L stainless steel

Operating Temperature

Room Temperature Type: -20℃ to 80℃ (Nitrile O-Ring)                           Material: Spherical 304/316/316L Stainless Steel

High Temperature Type: -20℃ to 160℃ (Fluorine Rubber O-Ring) Valve Seat Seal PTFE, PPL, metallic seals

Action Range 0～90°±5° Temperature PTFE ≤ 180°C, PPL ≤ 350°C, Metal Sealed ≤ 450°C

Interface thread 1/8″、1/4″、3/8″、1/2″ Applicable Medium Water, oil, viscous fluids, slurries, strongly oxidizing media, etc.

1/8″、1/4″、3/8″、1/2″

Valve Position Signal Locator: 4-20mA / Transmitter: Full open/full close signal Features Compact structure, small size, light weight, easy installation

Attachment Options

Choose from the following accessories based on different controls and requirements:

Position Feedback Switch (also known as Limit Switch, optional explosion-proof remote feedback switch signal).

Electromagnetic Valve: Double-acting select two-position five-way, single-acting select two-position three-way (optional explosion-proof).

Tri-pack: Offers gas source pressure stabilization, filtration, and cylinder lubrication.

Handwheel Mechanism: The handwheel mechanism allows for manual opening and closing of the valve.

Electrical Locator: Inputs 4-20mA signal for valve adjustment function.

Order Instructions

1. Pneumatic Actuator Type: Double-acting, Single-acting

2. Medium Type, Temperature, Pressure

3. Required Attachments: Solenoid Valve, Positioner, Signal Feedback, Gas Source Processing Tripartite Assembly, Manual Mechanism

Note: Due to varying operating conditions and different customer requirements, prices may vary. Please refer to the agent's quotation for the specific price.
