1. Overview of Usage

Widely used in research and application fields such as biochemical, chemical pharmaceutical, medical health, agricultural research, and environmental protection, for powder drying, baking, and sterilization of various glass containers. Particularly suitable for rapid and efficient drying of heat-sensitive, easily decomposable, oxidizable substances, and complex composition items.

2. Advantages of Vacuum Drying Technology:

Vacuum environments significantly lower the boiling points of liquids that need to be evaporated, thus vacuum drying can be easily applied to heat-sensitive materials.

For samples that are difficult to dry, such as powders or granular samples, vacuum drying can effectively shorten the drying time.

Mechanically complex parts or other porous samples are cleaned and then subjected to vacuum drying, leaving the samples completely dry without any residual substances.

Utilize greater safety – completely eliminate the possibility of explosion due to heated oxides under vacuum or inert conditions.

Compared to conventional drying that relies on air circulation, powdered samples are not blown or moved by the flowing air.

3. Product Features

The heating element is located on the internal partition inside the cabinet, reducing the heating time by 50% compared to traditional vacuum drying ovens (except for models 6050, 6050B, and 6051).

A large LCD screen with multiple data display on a single screen, menu-style operation interface, easy to understand and operate. (Optional)

Special process stamped aluminum shelf, with high-temperature non-oxidation and fast heat conduction. Maximizes the reduction of heat loss.

Rectangular workshop, maximizing effective volume; microcomputer temperature controller, precise and reliable temperature control.

Tempered, bulletproof double-glazed door with a clear view of the objects inside the observation room; allows for inert gas inflation.

The tightness of the door closure can be adjusted to any degree by the user, with a fully formed silicone door seal ring to ensure a high vacuum inside the box.

The interior is constructed of stainless steel plates, while the exterior casing is made of high-quality cold-rolled steel plates, with a surface electrostatic powder coating.

Storage, heating, testing, and drying are all conducted in an oxygen-free or inert gas atmosphere, preventing oxidation.

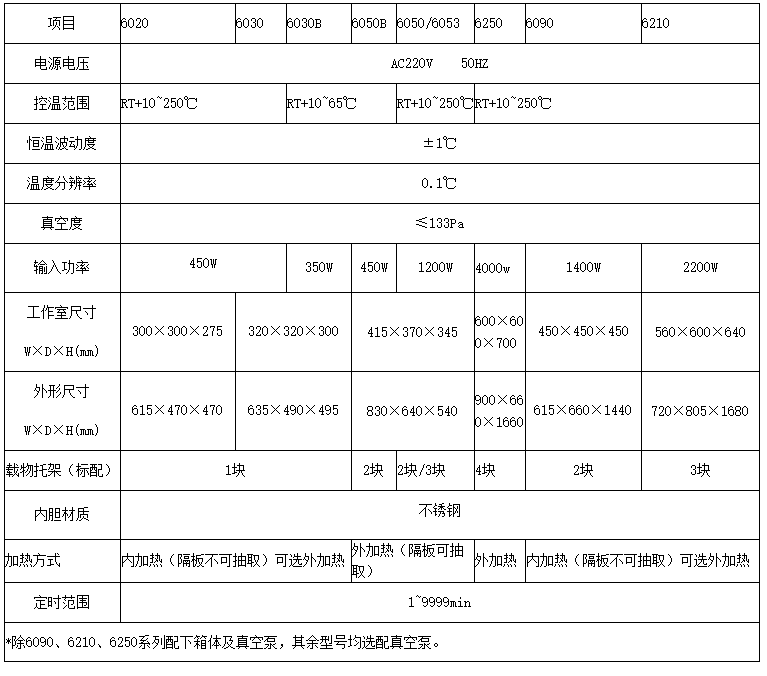

4. Technical Specifications

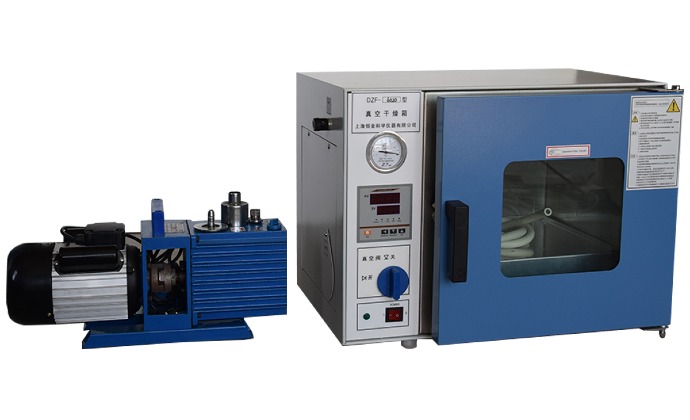

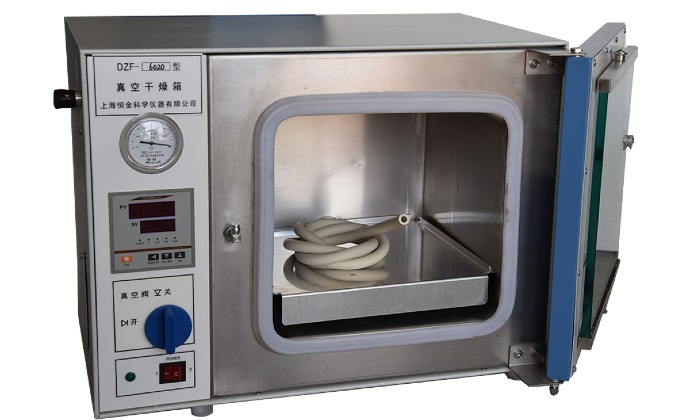

The exterior views of the DZF6020, DZF6050, DZF6030B, and DZF6020, DZF6030 models are as follows:

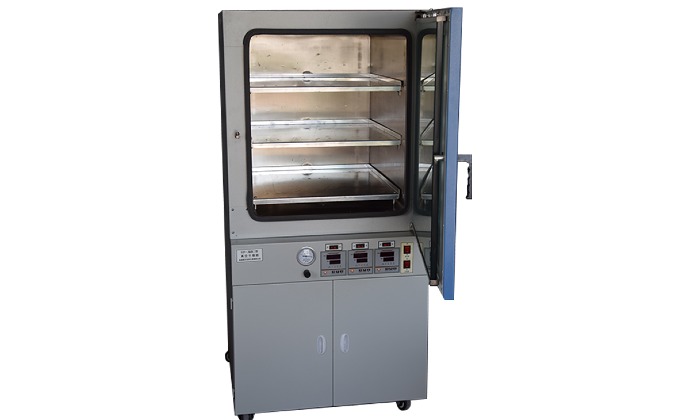

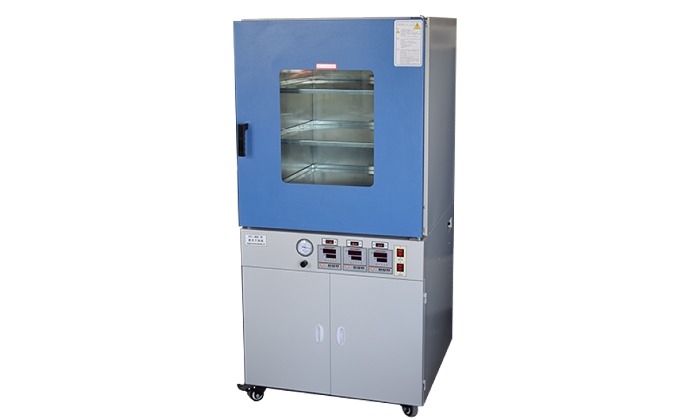

The appearance images of the models DZF6090, DZF6210, DZF6050B, DZF6020, and DZF6250 are as follows:
