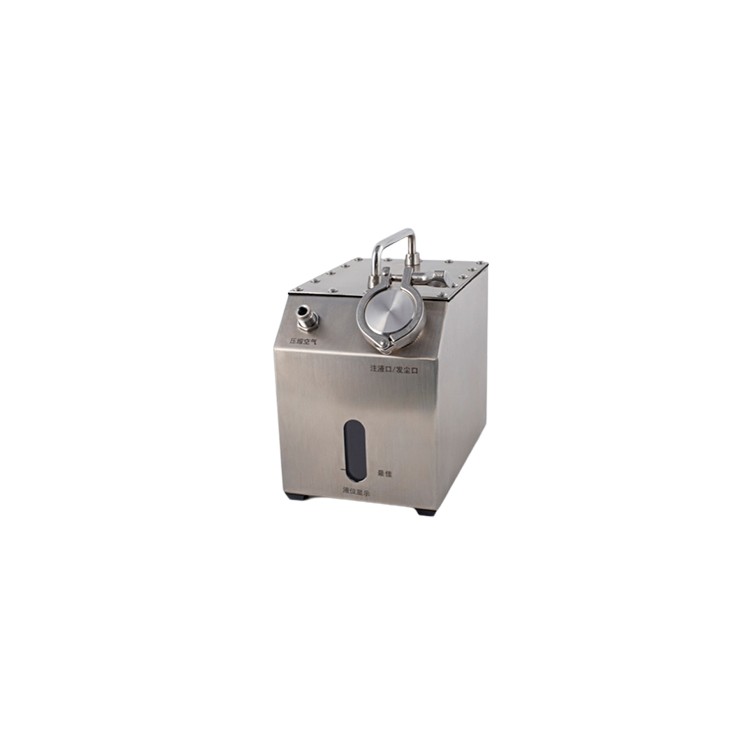

The LS-QF-8 aerosol generator is a portable cold aerosol generator independently researched and produced by our company. This type of generator is suitable for air flow rates of ≤50000 m³/h and can produce a polydisperse aerosol with a concentration of 0.5 to 2×10P/h. It meets the HEPA filter testing requirements for air supply systems in all small to large cleanrooms. The LS-QF-8 produces a continuous, stable aerosol particle and is convenient for solution refilling.
Note: Customers are required to self-configure the compressor pump or gas source.
Model | LS-QF-6 |
Airborne Particle Emission Range | 50 ～8100ft³/min(1.4～229m³/min) |
Aerosol generation rate | 0.5～2.5×10 P/h (0.3～0.5μm) |
Generate Type | 7 Laskin Nozzles |
Aerosol particle size distribution | 0.02～2μm |
Aerosol type | DEHS Cold-Flowing Multi-Dispersant |
Dimensions | 235×150×250mm |
Weight | 3.6KG |
External gas source (compressed air) | Less than 0.7 MPa clean and stable gas supply |
