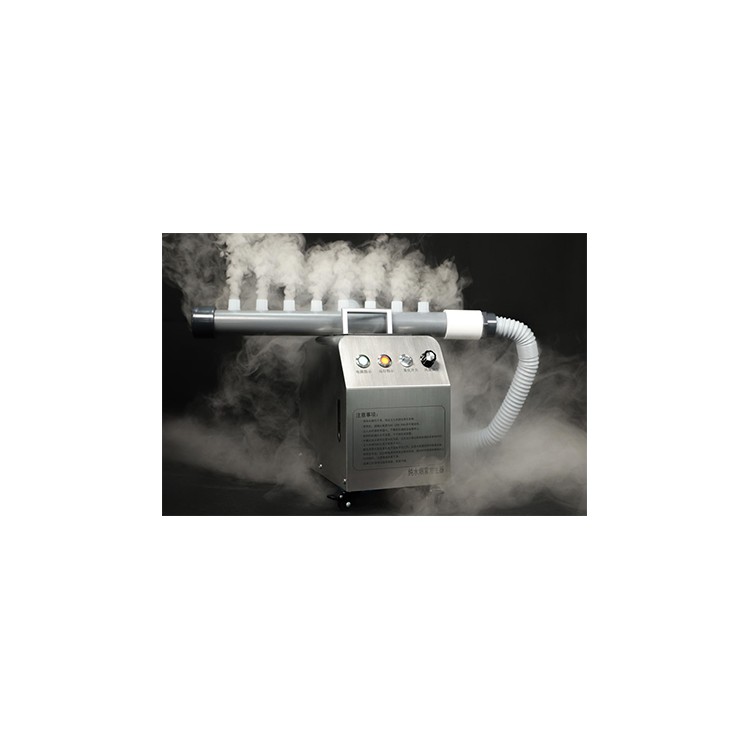

The LS-YW-8 smoke generator produces high-concentration steam (particle size range: 1-10μm, concentration over 80%), with high visibility and no pollution. After the steam is dispersed in a clean room, there are no residues. According to ISO 14644-3 and GMP regulations, the acceptance of clean rooms requires an evaluation of air flow direction. The LS-YW-8 smoke generator is suitable for clean rooms, local clean environments, air flow pattern filming, and is widely used in semiconductor and pharmaceutical clean rooms.
Model | LS-YW-8 |
Mist emission quantity | ≥6500mL/h |
Aerosol particle size | 1~10μm |
Output Rate | 0.95m³/min |
Mist Height | 120~150mm |
Water Capacity | 3500mL |
Input Voltage | AC 220V |
Rated Power Consumption | 216W |
Dimensions | 305×200×270mm |
Net Weight of the Main Unit | 7kg |
