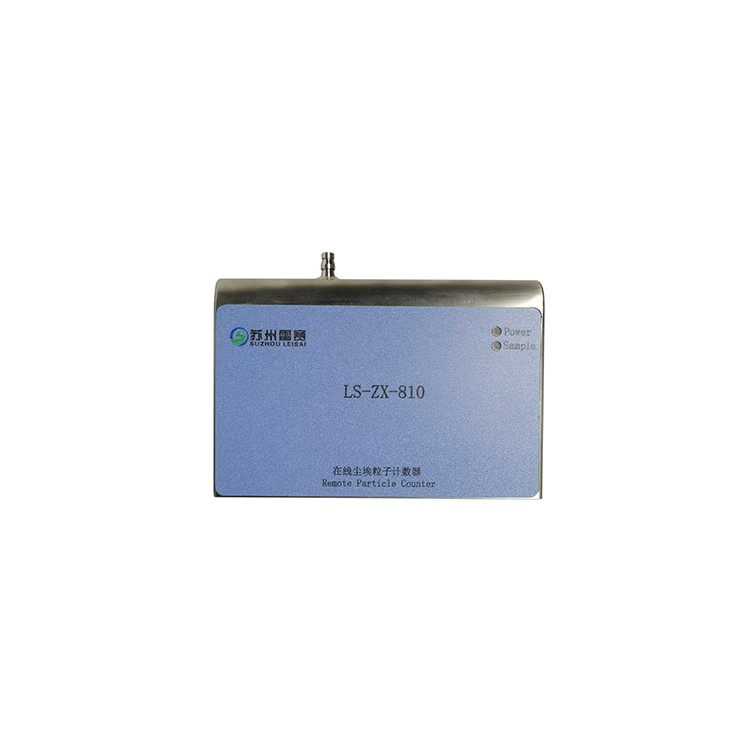

The LS-ZX-810 High-Flow Particle Counter is a testing instrument used in cleanroom environments for cleanliness monitoring and microparticle counting detection. Based on the principle of light scattering, it employs photoelectric sensing technology to detect dust particle sizes and count particle quantities. Compared to low-flow counters, this model has a sampling flow rate of 1 CFM (28.3 L/min), offering greater sampling flow and more precise detection, and has become an essential instrument for pharmaceutical GMP certification. Similarly, it can also be applied in clean environments such as electronics factories, hospital operating rooms, aerospace, precision machining, and the food industry. This instrument features high measurement accuracy, compact size, lightweight, and easy installation.
The product supports Modbus communication protocol RS-485 and various signal outputs. It allows for secondary development by users, enabling them to design their own online remote control software. Optional data analysis software developed by our company is available for purchase.
Model | LS-ZX-810 |
Sample Flow Rate | 28.3L/min ±5% （1.0CFM） |
Particle size range | 0.5μm,5μm, |
Laser Source | Laser Diode |
Air Pump | Imported air pumps, stable continuous operation, energy-saving and environmentally friendly |
Inspection Standards | JJF1190-2008，GB/T6167-2007 |
Repetitive Relative Error | Under identical measurement conditions, the repeatability of particle concentration continuous measurement values is less than 10%. |
Particle size distribution error | 0.5μm, 5μm particle size distribution error ±30% |
Particle concentration indication error | Particle counter operates normally, particles with a 0.5 micron particle size range The concentration indication error does not exceed ±30% FS. |
Self-cleaning time | ≤10min (Counting stops after three consecutive zeros within 10 minutes with 95% confidence) |
Communication Protocol | Modbus communication protocol, RS-485, RS-232 output |
Operating Voltage | DC24V/1A |
Material | Stainless Steel |
Size | 140*180*95mm |
