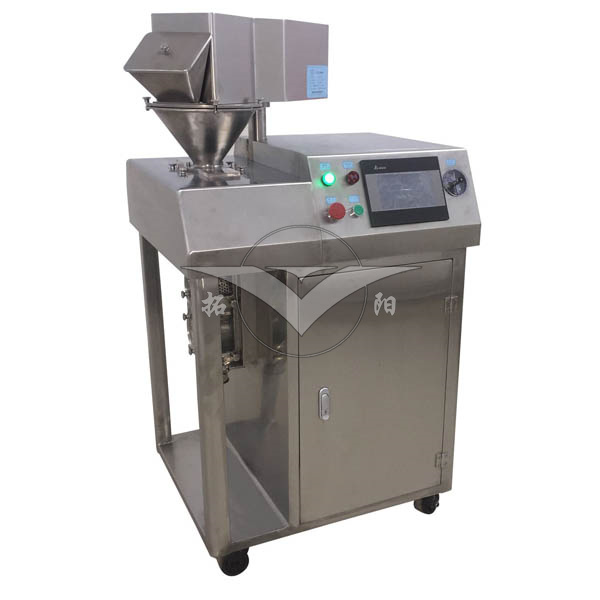

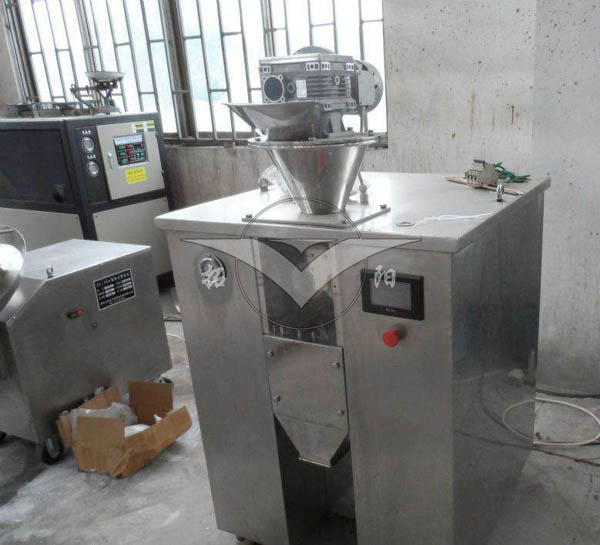

This equipment employs the latest roller control technology, adjusting physical fluctuations between different materials and batches of the same material, allowing for precise and repeatable adjustments of the granulator's process parameters (such as throughput, sheet density, roller pressure, and speed), effectively producing high-quality particles with enhanced stability, disintegration, and solubility. The equipment occupies minimal space, features simple processes, saves energy, and is environmentally friendly. It's easy to disassemble and clean, and the granulated material can be directly compressed into capsules. It is widely used in the pharmaceutical industry.
Features
The granulating unit and power unit of the equipment are installed in isolation in space to prevent cross-contamination.
2. Unique feeding system: The hopper features an innovative elliptical and aeration structure, ensuring smooth transitions that enhance the flow properties of raw materials. This design avoids phenomena such as bridging due to poor fluidity and air resistance, ensuring continuous production.
3. All components in contact with materials are easily removable and cleanable. The workshop is sealed, effectively preventing dust leakage and environmental contamination.
4. The extrusion wheel is made of special stainless steel material, ensuring suitable rigidity and hardness, strong corrosion resistance, and preventing material contamination.
5. Unique cooling, conveying, and paving systems: Ensures smoother material flow and more uniform density. It also effectively controls the surface temperature of the conveying equipment, preventing material from melting and sticking to the roller or from particle discoloration due to long-term continuous operation.
6. Unique extrusion device: Ensures consistent pressure for tabletting, even thickness of material, and automatic adjustment of roller gap, meeting finished granule requirements and production continuity.
7. Unique Cooling System: The equipment utilizes air or water cooling technology, allowing for controlled temperature rise on the pressure roller surface. It automatically adjusts the pressure roller temperature, preventing the sheet material from dissolving, sticking, or discoloring, as well as preventing condensation on the pressure roller, effectively reducing the likelihood of contamination.
8. Two-level Granule System: Coarse Granulation: Breaks large granules into smaller pieces; Fine Granulation: Separates out qualified products with minimal dust and high yield.
9. Granulated particles are screened by air flow after granulation, with qualified particles discharged and不合格 particles returned to the storage for a second granulation.
10. The equipment boasts a unique, stylish, and artistic appearance, featuring a visual design for easy observation and maintenance, enhancing the device's controllability.
11. Utilizes a user-friendly interface system, aesthetically pleasing and easy to operate.
12. Fully complies with GMP standards.
