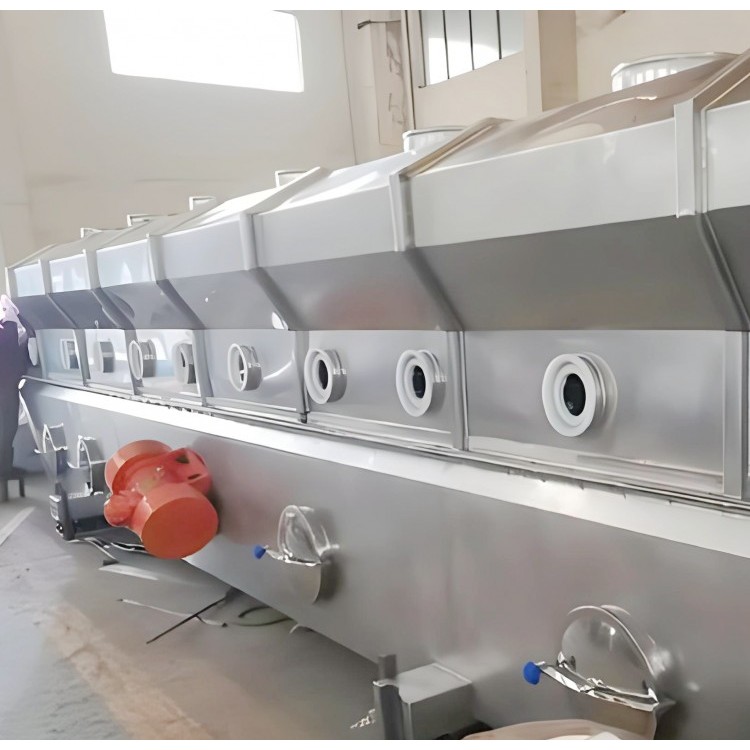

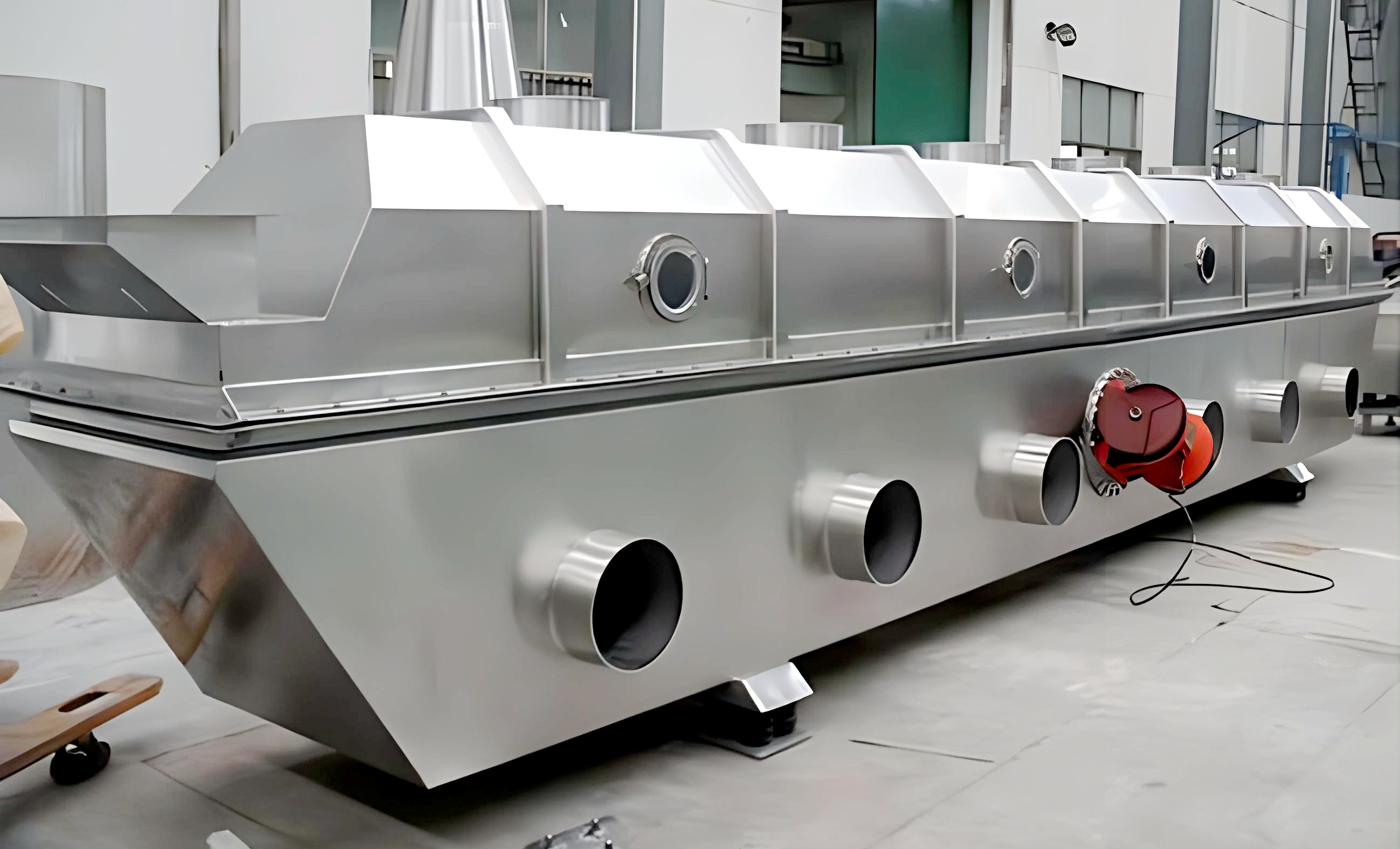

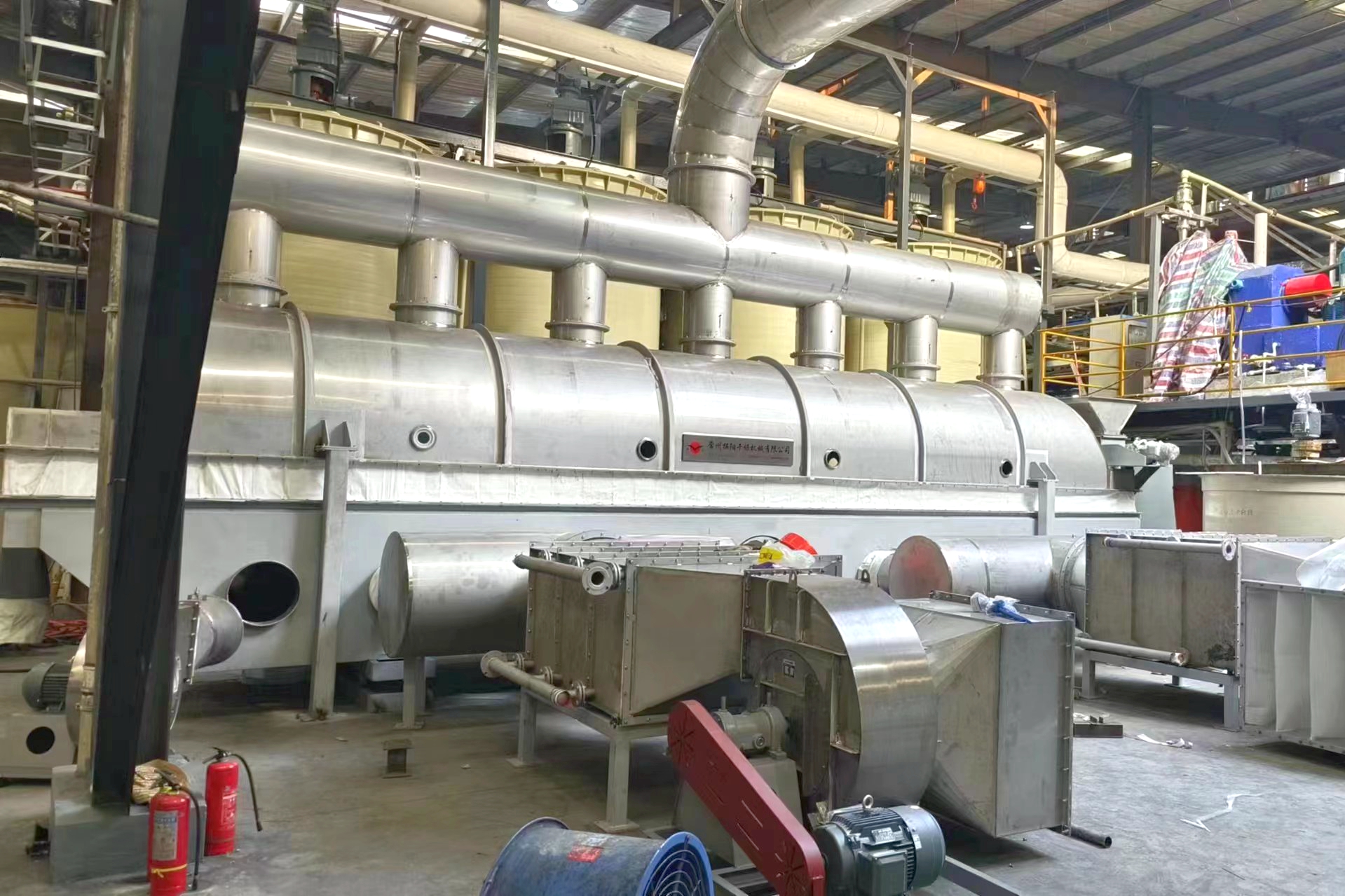

Product Overview: The ZLG Vibrating Fluidized Bed Dryer operates by introducing material into the machine through the feed port. Under the action of vibration, the material is continuously propelled forward in a horizontal direction. Hot air passes upwards through the fluidized bed and exchanges heat with the wet material. The wet air, after being dusted by a cyclone separator, is exhausted through the exhaust port. The dried material is discharged through the discharge port.
Vibration fluidized bed dryer operating principle
Material enters the machine through the feeding port and is continuously propelled forward horizontally under the action of vibration force. Hot air passes upwards through the fluidized bed and heat-exchanges with the wet material. The wet air, after being dust-separated by a cyclone separator, is exhausted through the exhaust port. The dried material is discharged through the discharge port.
Vibration Fluidized Bed Dryer Features
Material heats evenly, facilitates efficient heat exchange, boasts high drying intensity, and saves approximately 30% more energy than conventional dryers.
2. The vibration source is driven by a vibration motor, offering smooth operation, easy maintenance, low noise, and a long service life.
3. Fluidized bed stability without dead zones or blow-through. The form and rate of the bed perforations are crucial. Final moisture and yield can be controlled by the amplitude and feeding amount.
4. Excellent adjustability and broad applicability.
5. Minimizes surface damage to materials, suitable for drying fragile materials. Also maintains effectiveness even when the material particles are irregular. Significantly superior to a boiling bed.
6. Utilizes a fully enclosed structure, effectively preventing cross-contamination between materials and air, ensuring a clean working environment.
Vibration Fluidized Bed Dryer Application Range
1. Chemical & Pharmaceutical: Various tablet granules, xylitol, succinic acid, xylitol, mannitol, boric acid, borax, hydroquinone, malic acid, maleic acid.
2. Food Products: Alcohol, monosodium glutamate, sugar, casein, chicken essence, salt, slag, douban, seeds
3. Can also be used for material cooling and humidification.
