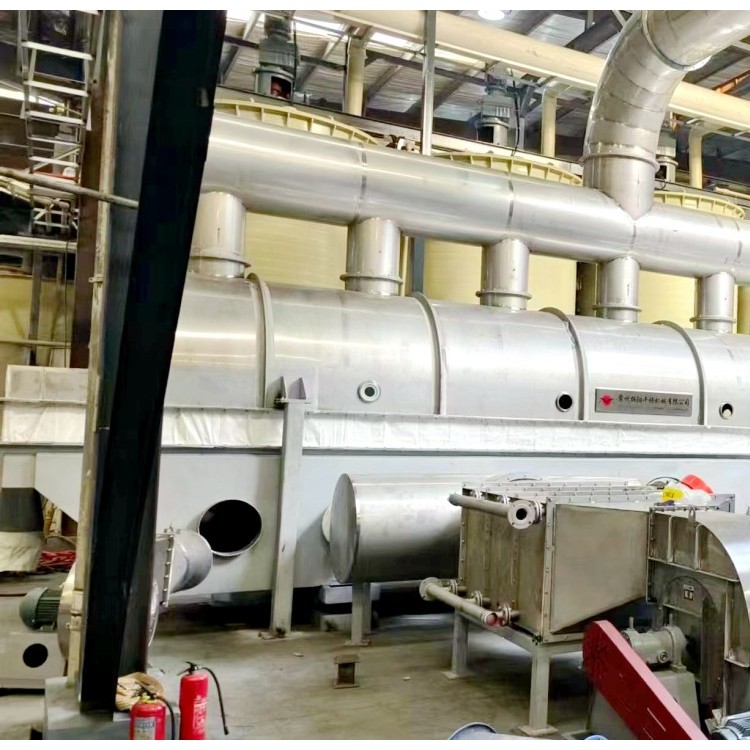

Product Overview: The ZLG Vibrating Fluidized Bed Dryer operates by feeding materials into the machine through the inlet. Under the action of vibration force, the materials are continuously propelled forward in a horizontal direction. Hot air passes upwards through the fluidized bed and the wet materials for heat exchange. The wet air is then purified through a cyclone separator and exhausted through the exhaust port. The dried materials are discharged through the discharge port.
Principle of Operation for Vibrating Fluidized Bed Dryer
Material enters the machine through the feed port and is continuously propelled forward horizontally under the action of vibration. Hot air passes upward through the fluidized bed and exchanges heat with the wet material. The wet air, after being dusted by the cyclone separator, is exhausted through the exhaust port. The dried material is discharged through the discharge port.
Vibration Fluidized Bed Dryer Features
Material heats evenly, achieves full heat exchange, has high drying intensity, and saves energy by approximately 30% compared to ordinary dryers.
2. The vibration source is driven by a vibration motor, ensuring smooth operation, easy maintenance, low noise, and a long service life.
3. Flow stabilization with no dead zones or blow-through; the design of the bed opening and the opening rate are crucial. Final moisture content and yield can be controlled by adjusting the amplitude and feeding quantity.
4. Good adjustability and wide applicability.
5. Minimizes surface damage to materials, suitable for drying fragile materials. Works effectively even when material particles are irregular. Significantly superior to a boiling bed.
6. The fully enclosed structure effectively prevents cross-contamination between materials and air, ensuring a clean working environment.
Vibration Fluidized Bed Dryer Application Scope
1. Chemical & Pharmaceutical: Various tablet granules, including xylitol, succinic acid, xylitol, mannitol, boric acid, borax, hydroquinone, malic acid, and maleic acid.
2. Food Products: Alcohol, monosodium glutamate, sugar, casein, chicken essence, salt, slag, broad bean paste, seeds
3. Also suitable for material cooling and humidification.
