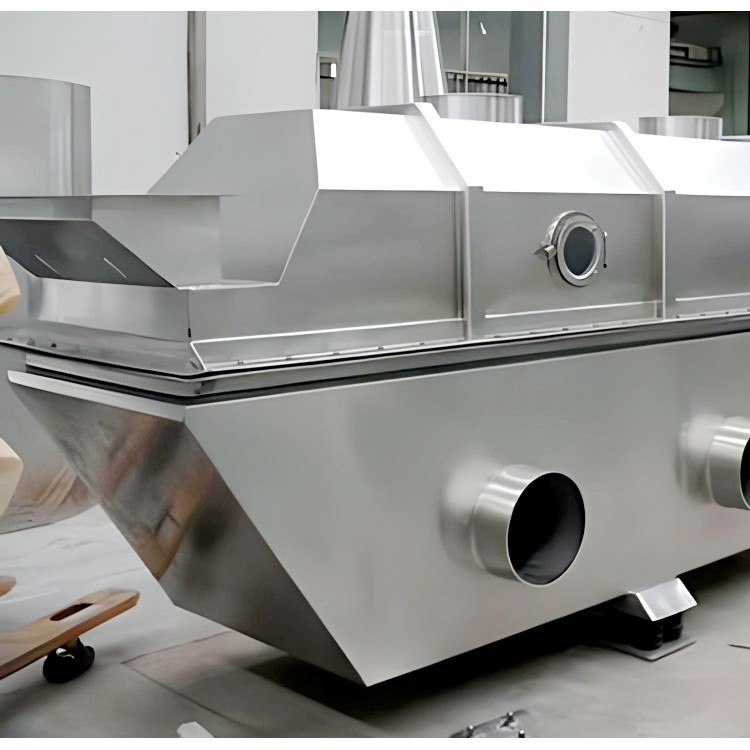

Product Overview: The ZLG Vibrating Fluidized Bed Dryer operates by feeding materials into the machine through the inlet, where they are continuously propelled forward in a horizontal direction under the action of vibration. Hot air passes upward through the fluidized bed and exchanges heat with the wet materials. The wet air, after being dusted by a cyclone separator, is exhausted through the outlet. The dried materials are discharged through the discharge port.
Principle of Operation for Vibrating Fluidized Bed Dryer
Material enters the machine through the feed port and is continuously propelled forward horizontally under the action of vibration force. Hot air passes upward through the fluidized bed and exchanges heat with the wet material. The wet air, after being dusted by a cyclone separator, is exhausted through the exhaust port, while the dried material is discharged through the discharge port.
Vibration Fluidized Bed Dryer Features
Material heats evenly, ensures thorough heat exchange, boasts high drying intensity, and saves energy by approximately 30% compared to standard dryers.
2. The vibration source is driven by a vibration motor, offering smooth operation, easy maintenance, low noise, and a long service life.
3. Fluidization is stable with no dead corners or blow-through. The design of the bed opening and the opening rate are crucial. Final moisture content and yield can be controlled by adjusting the amplitude and feeding amount.
4. Good adjustability and wide applicability.
5. Minimizes surface damage to materials, suitable for drying fragile materials. Also maintains effective operation even when the material particles are irregular. Significantly superior to a boiling bed.
6. Utilizes a fully enclosed structure, effectively preventing cross-contamination between materials and air, ensuring a clean working environment.
Vibration Fluidized Bed Dryer Application Range
1. Chemicals & Pharmaceuticals: Various tablet granules, xylitol, succinic acid, xylitol, mannitol, boric acid, borax, hydroquinone, malic acid, maleic acid.
2. Food: Alcohol, monosodium glutamate, sugar, casein, chicken essence, salt, slag, broad bean paste, seeds
3. Also suitable for cooling and humidifying materials.
