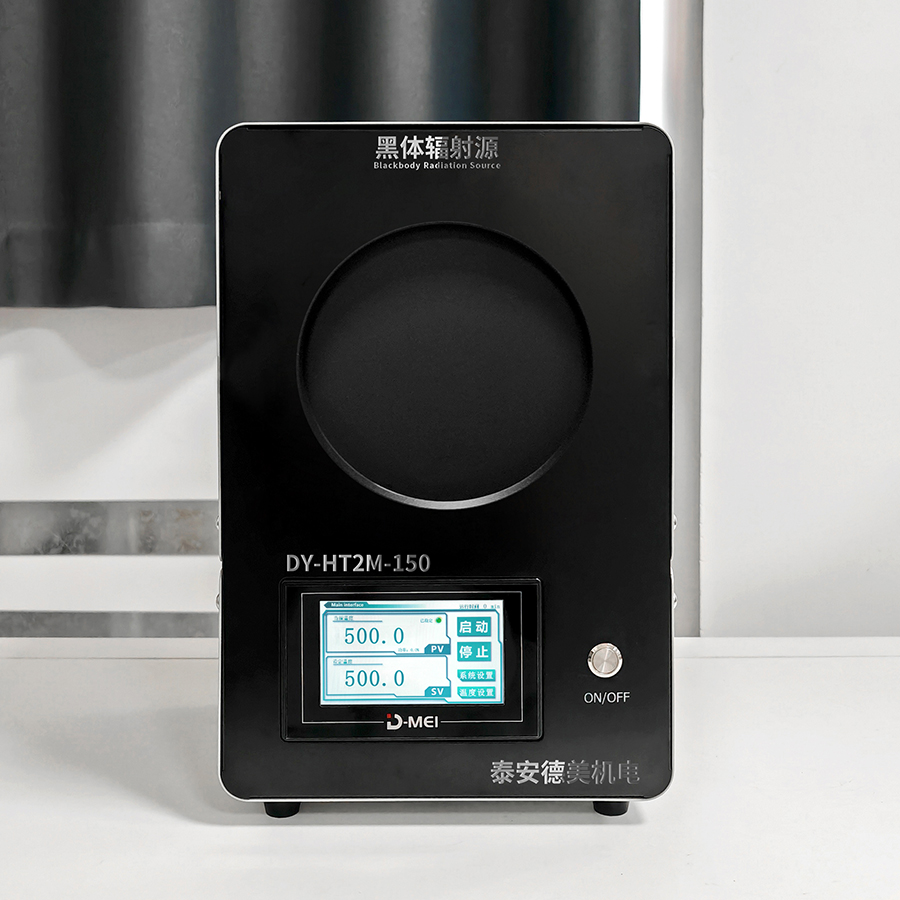

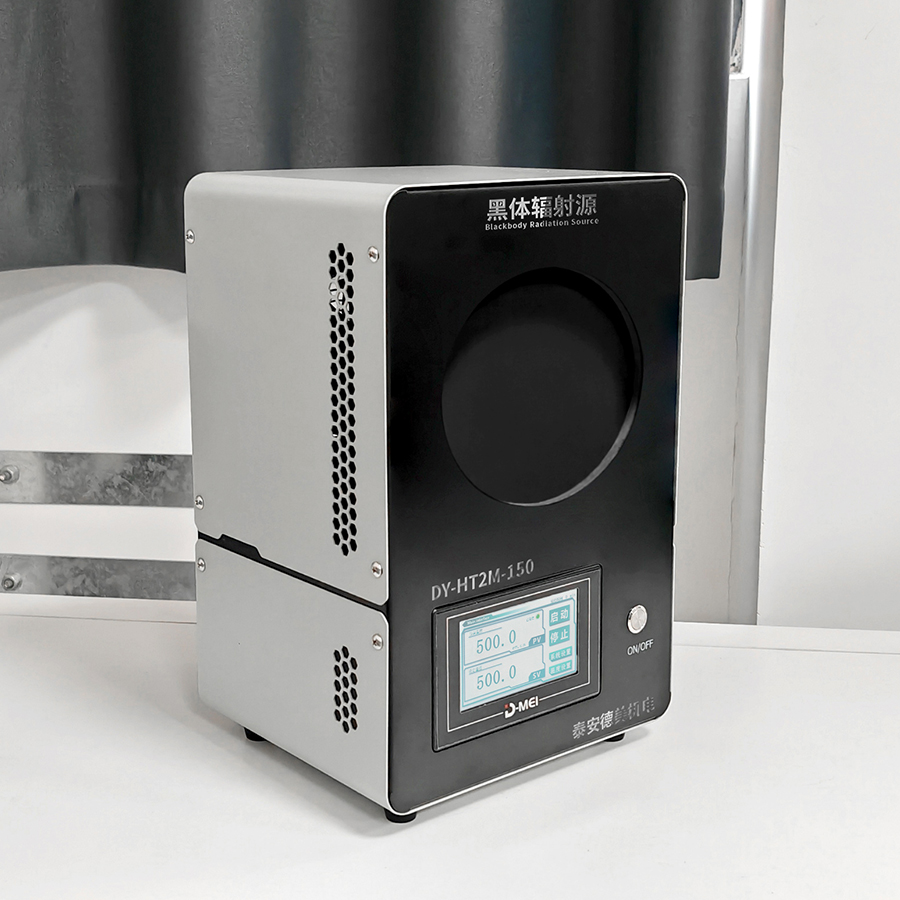

Product Introduction
Definition of Blackbody: An object that can absorb all external radiant energy and simultaneously radiate out all of its own energy.
Key technical specifications of the blackbody: emissivity of the blackbody, diameter of the blackbody aperture, temperature uniformity, and uncertainty of the radiant temperature. Therefore, to ensure the quality of the blackbody, they are typically designed in sections according to temperature. The blackbody we commonly refer to is an artificial blackbody. The emissivity of the artificial blackbody is close to 1 but not equal to 1.
The primary function of the bold instrument is to produce standard radiation at a certain temperature. Therefore, it is mainly used in temperature measurement for calibrating various radiation thermometers, such as optical pyrometers, infrared thermometers, and infrared thermography cameras.
The blackbody is primarily used in the industrial field for temperature measurement, with the main product being the blackbody furnace. Calibration and verification of radiation thermometers are usually carried out using the comparative method, which involves comparing the temperature replicated by the standard instrument with that replicated by the radiation thermometer being tested, typically through a high-stability radiation source (usually a blackbody radiation source) and other auxiliary equipment, to determine if it meets specifications or to provide calibration results.
Standard blackbody as a standard radiation source, mainly used for calibrating radiation thermometers, infrared thermometers, and radiation temperature sensor detectors. Our company currently possesses advanced blackbody technology, offering a full range of blackbody series products with wide temperature ranges. These products are compact, lightweight, and easy to carry, suitable not only for calibration of radiation thermometers in laboratories of various metrological institutions but also for on-site calibration.
Operation Procedures:JJG 856-2015规程 for Calibration of Industrial Radiation Thermometers
Product Features
More portable and lightweight. Higher precision.
2. User-friendly interface with Chinese display, touch operation, elegant and stylish.
3. One-touch temperature setting, easy to operate. Fast heating, precise temperature control.
4. We can customize language interfaces for multiple countries according to customer requests, facilitating export.
Product Advantages
1) Innovative design with an integrated furnace and temperature controller structure.
2) The heater is insulated from the housing, utilizing special software for pressure-limiting heating, eliminating the need for a high-power transformer.
3) Utilizes automatic temperature control with fast heating speed and excellent temperature stability, ensuring safety and reliability.
4) Easy to use, compact, lightweight, and portable, it is suitable for calibration in laboratories as well as on-site calibration work.
5) Large-area isothermal blackbody radiation surface, default emissivity at 0.95 upon shipment. Emissivity can be adjusted between 0.96 and 0.99 upon request.
6) Built-in multi-point independent temperature adjustment function.
7) Automatic Intelligent Adjustment: Equipped with advanced control algorithms featuring MH logic intelligent adjustment function and parameter self-tuning capabilities.
8) Program control feature, with 10 different program setting interfaces pre-installed, one-touch operation for convenience and speed, meeting various detection point requirements of users and enhancing detection efficiency.
9) Communication interface is customizable to RS232.
10) The equipment features memory function, allowing it to quickly resume to the previous setting state after a restart without the need for additional startup settings.
