Product Features
1) Human-machine interface with Chinese display, touch operation, stylish and elegant.
2) One-click temperature setting, simple operation. Fast heating, temperature control.
3) Can customize language interfaces worldwide according to customer requirements for export convenience.
Product Advantages
1. Emission Area: Up to 300mm x 300mm, compatible with various testing requirements.

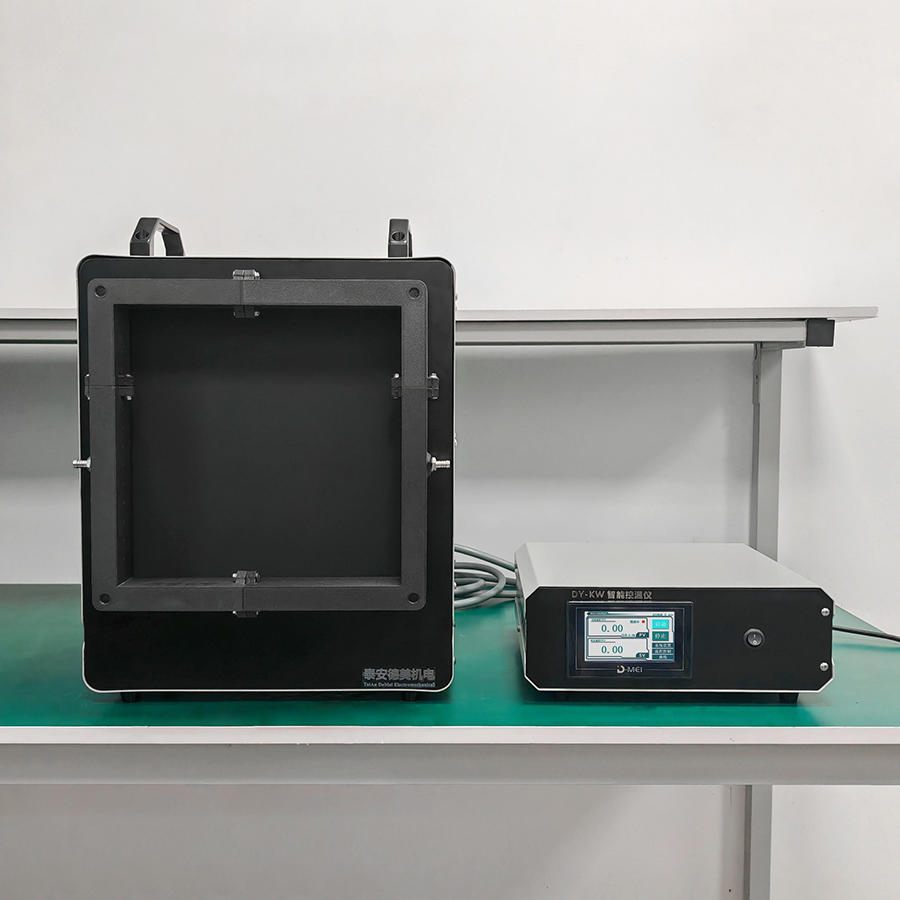

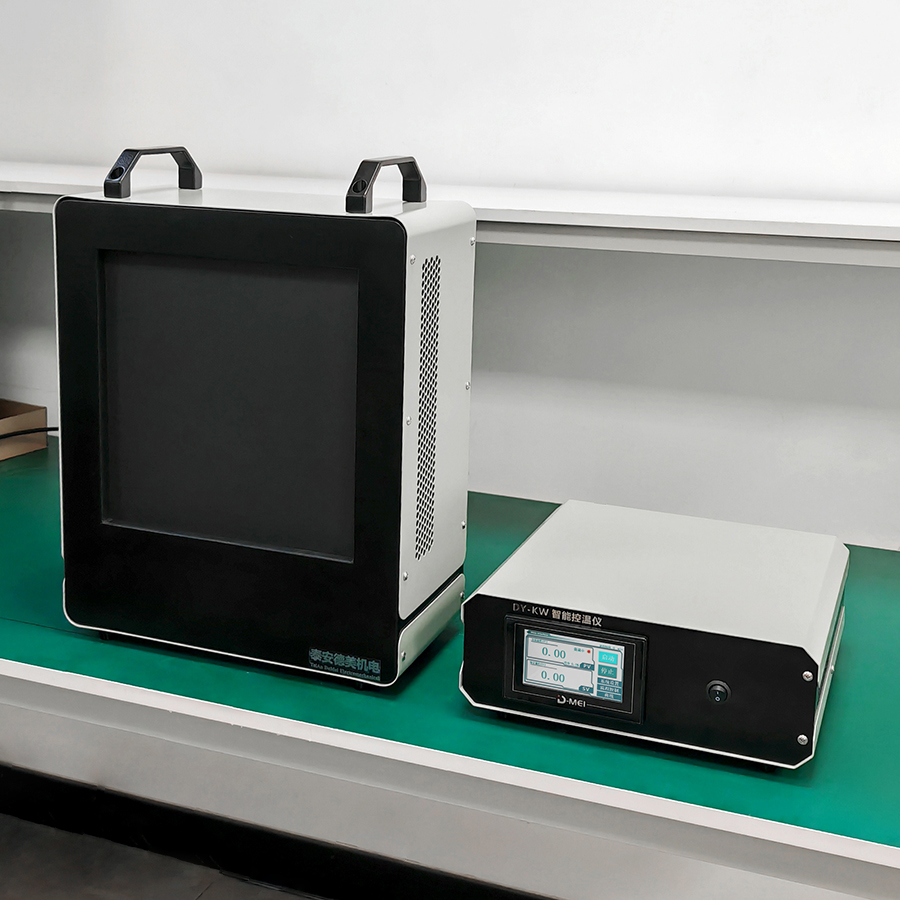

2. The blackbody radiation source features a split-type design, integrated with temperature control in an intelligent controller, and can be connected to a higher-level computer with communication capability. Temperature controllers are available in various styles.
3. Automatic Smart Adjustment: Equipped with advanced control algorithms featuring MH logic intelligent adjustment function and parameter self-tuning capability.
4. Built-in multi-point independent temperature correction function for the screen.
5. Communication Interface: RS232 serial port. Supports custom RS485, Ethernet, and wireless remote control operations.
6. Customizable handle design available, with customizable center height dimensions.
7. Can accommodate language interfaces in any part of the world as per customer requirements, facilitating export.
8. For configuration upgrades, please contact our company.The German-American Quantile App achieves one-click connectivity.Built-in temperature unit converter, measurement procedure database, etc.
9. The equipment features memory function, quickly restoring to the previous settings upon reboot without the need for additional startup configuration.
10. The 300mm radiating surface achieves a faster cooling rate, outperforming other industry-standard blackbody parameters, significantly enhancing testing efficiency.
11. Flexible and Expandable Coverage Area: Select different coverage areas based on usage requirements. Compatible with calibration for various field of view devices.
12. Utilizing an integrated refrigeration system and lightweight materials, the volume is reduced by 30% compared to similar products, making it easier to carry and install.
13. Smart control with a touch screen, featuring real-time monitoring and data export capabilities.
14. Wide Application: Full temperature range calibration suitable for medical infrared thermometers, industrial thermal imagers, vehicle-mounted night vision systems, and other equipment.
15. Particularly suitable for compact laboratory spaces and on-site mobile testing requirements.
