I. Product Overview

Air curtainCreate a temperature-separated air barrier that effectively prevents cold air from entering, offering exceptional heating comfort for doors in stores, offices, and public buildings. The windscreen machine boasts numerous intelligent energy-saving features, providing fully automatic protection at entrances and suitable for various application fields.

II. Product Features

Heat source; Steam

Utilizing a centrifugal motor for strong air delivery, high air pressure, and large air volume

Evenly dissipates heat, reducing heat loss

Seal doors for heating, prevent outdoor cold air from entering

Suited for industrial and mining enterprises, large shopping malls, public places, etc.

Centrifugal air curtain units feature an additional volute at the impeller, which enhances wind pressure and creates a stronger wind speed. Additionally, due to the volute's function, the noise level is typically lower than that of a through-flow air curtain unit. The wind speed generated by the impeller of a through-flow air curtain unit is generally lower than that of a centrifugal unit, so in terms of application height, it is relatively lower than that of a centrifugal air curtain unit. The height varies depending on the usage environment. JinchenCentrifugal air curtainThe effect needs to be much more pronounced.

III. Applicability Scope

Widely used in public buildings and frequently opened exterior doors of factories; or to prevent smoke from entering smoke-free areas during building fires; or to block dirty air, insects, and other contaminants from entering controlled areas. Additionally, it is extensively applied in supermarkets, hotels, cold storage facilities, stations, hospitals, restaurants, electronics, instruments, pharmaceuticals, food processing, precision manufacturing, chemical industry, footwear manufacturing, services, and commercial industries.

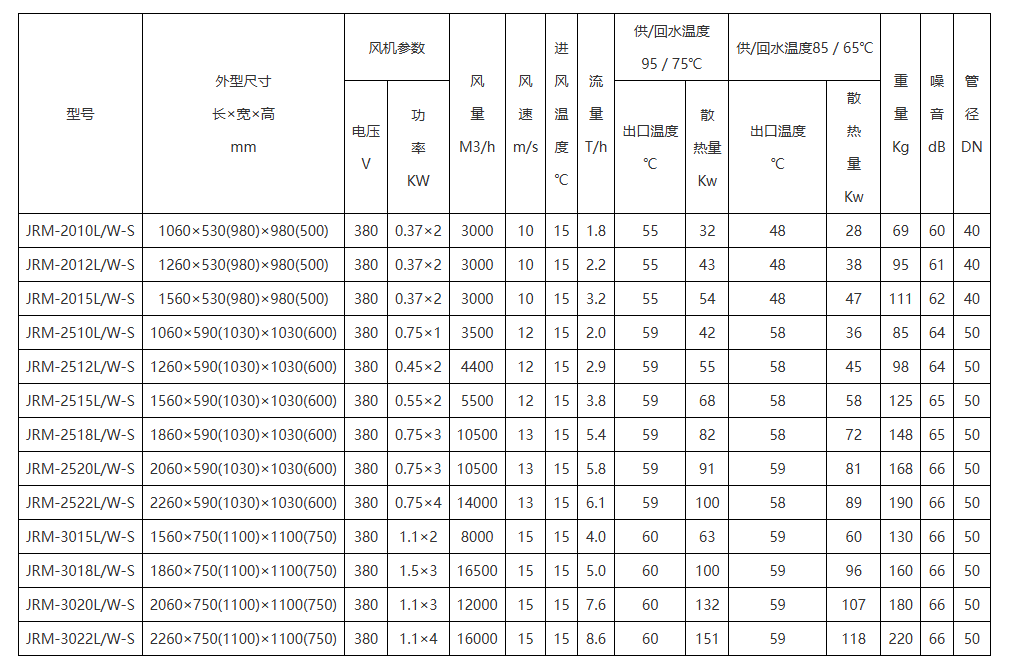

IV. Product Specifications

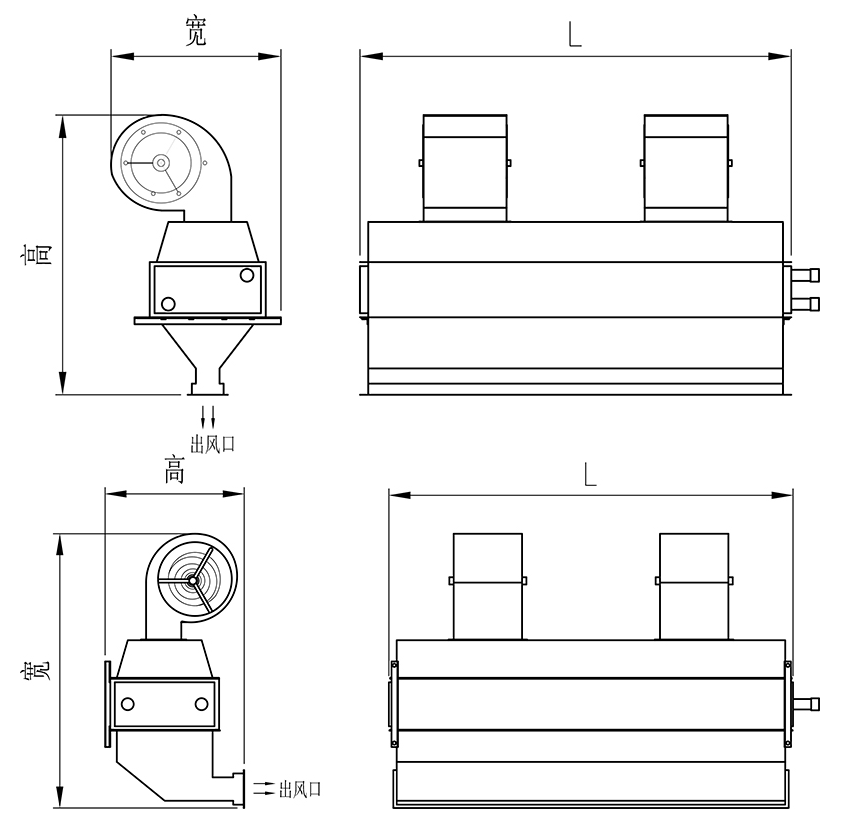

Section 5: Structural Diagram
