Wireless Printing Product Advantages:

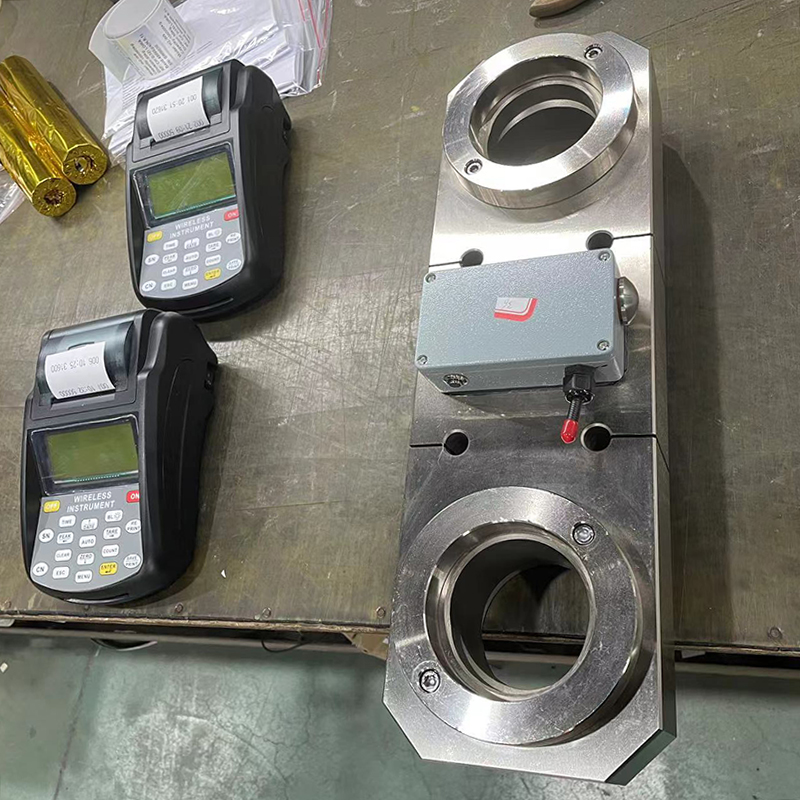

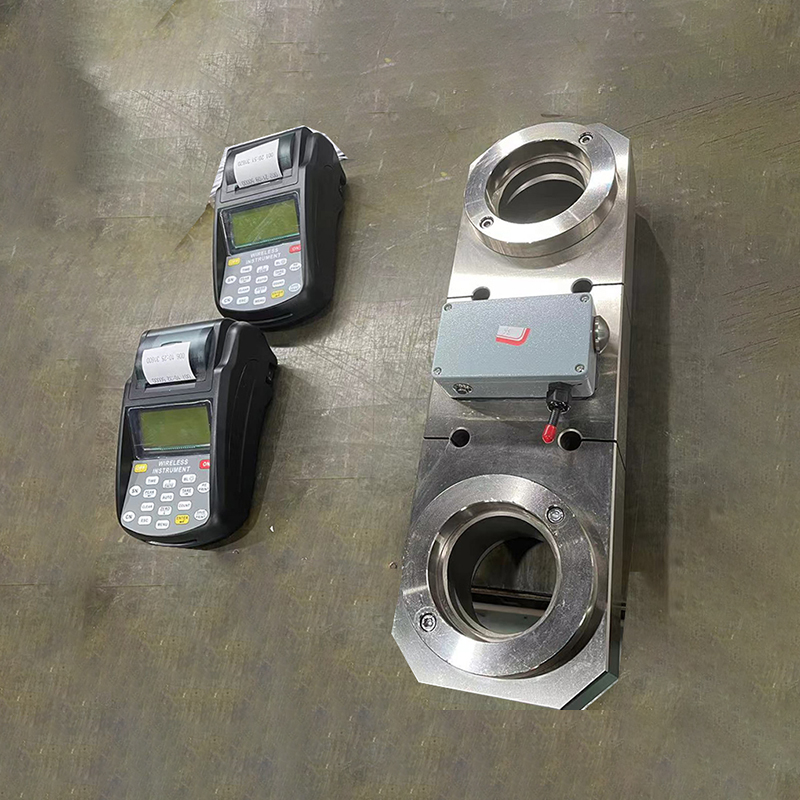

FH-V5Wireless Shanghai Yadoli Inspection Equipment Co., Ltd. As per the foreign customer's requirements, Independent innovation, a new product for industrial force measurement, the High precision, featuring our independently developed wirelessPrintInstruments, convenient to carryPeak catch force, with printing and control functions, featuring various communication interfaces, including RS232 and USB ports for easy computer communication.Gan TanThe W5 Wireless Force Gauge is actually an ideal force measurement product for the industrial hoisting field.
2. Wireless Features:
1. Robust construction with a novel integrated sensor design.
2. Measurement accuracy up to 0.05% within the range of 1-50 tons, 0.1% above 50 tons
All functions and units are clearly displayed on the white-backlit LCD.
4. The force gauge features a 1-inch high LCD digital display, easy to view from a distance.
5. Two programmable set points for convenient user configuration of safety warning thresholds.
6. The force gauge features a low-power design, ensuring operation of 3 standard "AA" alkaline batteries for over 50 hours.
7. Offer universal international units for ease of application: kilograms (kg), tons (t), pounds (lb), newtons (N), kilonewtons (kN).
8. Wireless gauges make parameter settings and instrument calibration both convenient and manageable.
9. WirelessV5Gauges offer a variety of operational functions:"Set to Zero," "Skin Off," "Peak Hold," "Cumulative," "Cumulative Search," "Cumulative Clear," "Unit Switch," "Voltage Search," and can print item number, product code, cumulative weight. Stores up to 2,000 data samples for easy access.
10. The dynamometer itself features 4 buttons: "Power On/Off", "Zero Set", "Peak Hold", and "Unit Switch".
11. Integrated antenna.
ThreeTechnical Specifications
Reference Standard | JB/T5669 |
Force Gauge Body Display | 25mm (1'') 5-digit LCD |
V5Instrument Display | 12mm (0.5'') 5-Digit LCD |
Power-On Zeroing Range | 20% Maximum Range |
Manual Zeroing Range | 4% Maximum Range |
Peeling Range | 20% Full Scale Range |
Stable Time | ≤ 5 seconds |
Overload Display | 100% Full Range + 9e |
Maximum Safe Load | 125% Full Scale Range |
Ultimate Load | 400% Full Scale Range |
Battery lifespan | ≥ 50 hours |
Unit Power Supply | LR6(AA) alkaline batteries. 1.5V x 3 |
Instrument Power Supply | USD interface power supply, lithium-ion battery optional |
Operating Temperature | - 10℃ ~ + 50℃ |
Working Humidity | ≤85% RH under 20℃ |
Wireless Range | 80 meters (default), 200 meters (optional) |
Wireless Frequency | 2.4GHz (default), 433MHz (optional) |
FourSpecs and Parameters
Model | Maximum Range(kg) | Minimum Order Quantity(kg) | Incremental value(kg) | Degrees (n) |
FH-V5-01 | 1000 | 10 | 0.5 | 2000 |
FH-V5-02 | 2000 | 20 | 1 | 2000 |
FH-V5-03 | 3000 | 20 | 1 | 3000 |
