I. Product Features

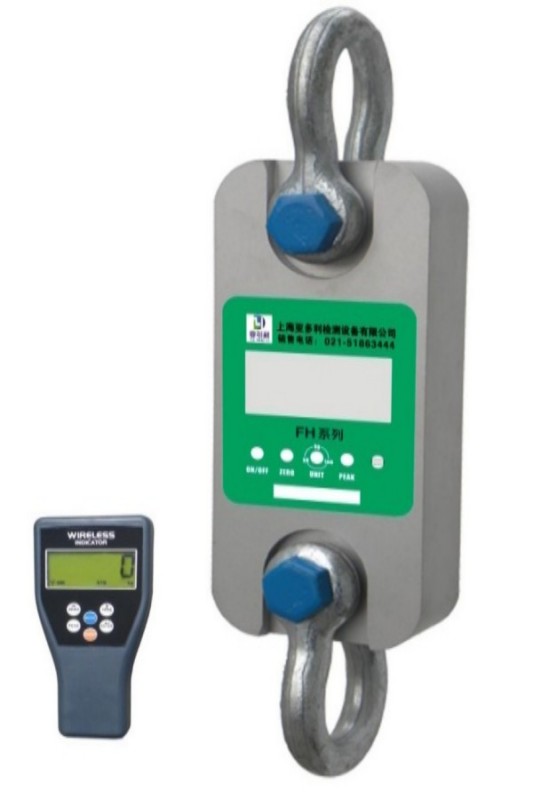

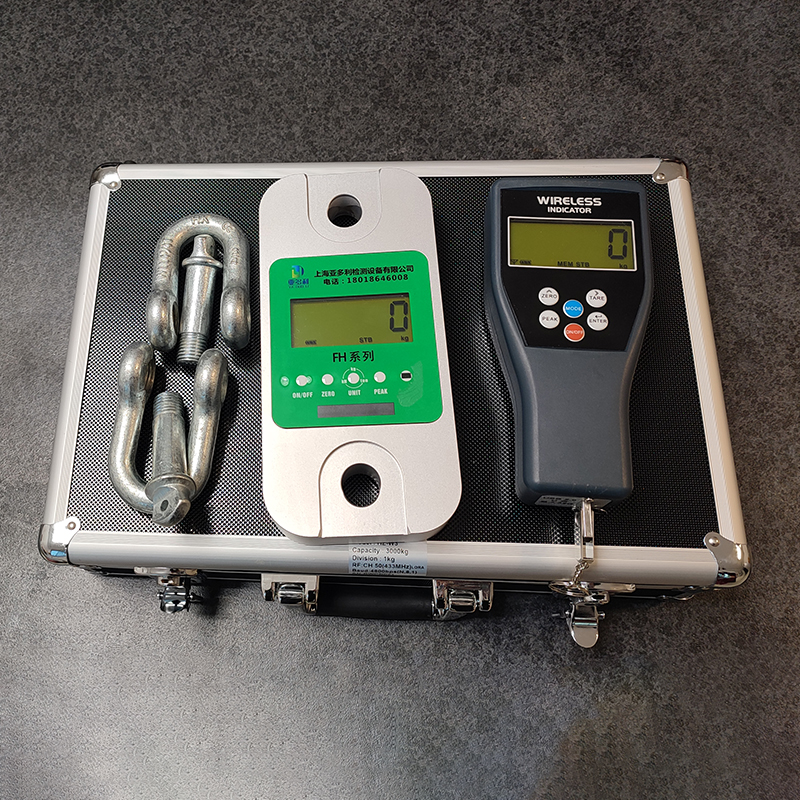

FH-V3Wireless is a product developed by our company in response to the requirements of international customers.Innovative independentlyProvide:R2 32 communication interface, offering communication protocols New product for industrial force measurementThe product boasts high precision and is equipped with our independently developed wireless tensiometer, making it convenient to carry and capable of capturing peak force values, truly an ideal force measurement product for the industrial hoisting field.
1.Robust structure with a novel integrated sensor design.
2.All features and units are clearly displayed on a backlit screen.On the LCD.
3.A 1-inch-high LCD digital display for easy viewing from a distance.
4.Two programmable set points for easy user adjustment of safety warning limits.
5.Low-power design for the main body3 standard "AA" alkaline batteries provide long-lasting operation for over 50 hours.
6Provide universal international units for ease of application: kilograms (kg, ton (t), pound (lb), Newton (N) QianniukN）。
7Wireless gauges make parameter settings and instrument calibration both convenient and easy to manage.
8.WirelessV3Gauges offer a range of operational features:"Zeroing," "Skinning," "Peak Holding," "Accumulation," "Cumulative" Search for quotes"Total Clear," "Unit Switch," "Voltage Check," Product ID, Total Weight,
9. Offer4 buttons: "Power On/Off", "Zero Set", "Peak Hold", "Unit Switch".
Built-in antenna.
Section 2:Product Specifications
Refer to Standards | JB/T5669 |
Load Cell Body Display | 25mm (1'') 5-digit LCD |
YadoliV3Instrument Display | 25mm (1") Character Height, 5-Digit LCD Display |
Power-On Zeroing Range | 20% Maximum Range |
Manual Zeroing Range | 4% Maximum Range |
Peeling Range | 20% Maximum Range |
Stable Time | ≤5 seconds |
Overload Display | 100% Full Scale + 9e |
Maximum Safe Load | 125% Maximum Measurement |
Ultimate Load | 400% Full Scale Range |
Battery life | ≥1500Hour |
Unit Power Supply | 4 LR6 (AA) alkaline batteries. 1.5V x 3 |
Instrument Power Supply | 4 LR6 (AA) Alkaline Batteries. 1.5V x 3 |
Operating Temperature | - 10℃ ~ + 50℃ |
Operating Humidity | ≤85% RH under 20℃ |
Wireless Range | 80 meters (default), 200 meters (optional) |
Wireless Frequency | 2.4GHz (default), 433MHz (optional) |
Section 3:Product Specifications
Model | Maximum Measurement(kg) | Minimum measurement(kg) | Graduation value(kg) | Degree markings (n) |
FH-V3-01 (1 ton) | 1000 | 10 | 0.5 | 2000 |
FH-V3-02 (2 tons) | 2000 | 20 | 1 | 2000 |
FH-V3-03 (3 tons) | 3000 | 20 | 1 | 3000 |
FH-V3-05 (5 tons) | 5000 | 40 | 2 | 2500 |
FH-V3-10 (10 tons) | 10000 | 100 | 5 | 2000 |
FH-V3-20 (20 tons) | 20000 | 200 | 10 | 2000 |
FH-V3-30 (30 tons) | 30000 | 200 | 10 | 3000 |
FH-V3-50 (50 tons) | 50000 | 400 | 20 | 2500 |
FH-V3-100 (100 tons) | 100000 | 1000 | 50 | 2000 |
FH-V3-150（150 tons | 150000 | 1000 | 50 | 3000 |
FH-V3-200 tons (200 tons) | 200000 | 2000 | 100 | 2000 |
（Boxes over 30 tons, not including Lü containers）
