I. Product Features
◆Robust structure with a novel integrated design.
◆Measurement accuracy reaches 0.1% of the rated range.
All features and units are clearly displayed on the backlit LCD with white illumination.
◆1-inch high LCD digital display for easy viewing from a distance.
◆Two programmable setting points for easy user adjustment of safety warning thresholds.
Low power design ensures that 3 standard "AA" alkaline batteries provide over 100 hours of operation.
◆Offering universal international units for easy application: kilograms (kg), tons (t), pounds (lb), newtons (N), kilonewtons (kN).

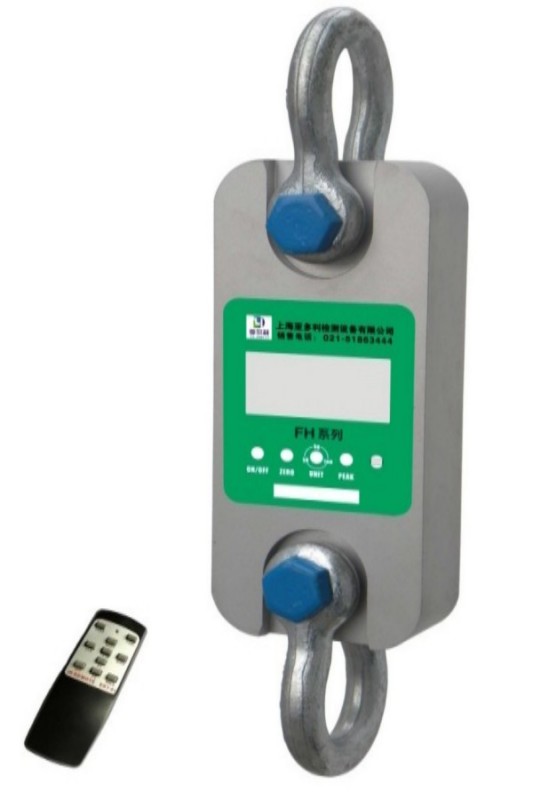

The infrared remote control makes parameter settings and instrument calibration both convenient and manageable.
◆Infrared remote controller offers various operation functions: "Zero Set", "Tare", "Peak Hold", "Accumulation", "Accumulation Query", "Accumulation Clear", "Unit Switch", "Voltage Query", "Shutdown".
◆Tension gaugeIn-house supplied4 buttons: "Power On/Off", "Zero Set"Peak Maintenance"Unit Conversion"、"Switch Units".
II. Technical Specifications
Refer to Standards | JB/T5669 |
Display | 25mm (1’’) 5PositionLCD |
Power-On Zeroing Range | 20% Maximum Range |
Manual Zero Span | 4% Maximum Range |
Skinning Range | 20%Maximum Range |
Stable Time | ≤10 Second |
Safe Load Capacity | 125%MaximumRange |
Ultimate Load | 400%MaximumRange |
Continuous Operating Time | ≥100Hour |
Power Supply | “LR6(AA)”Alkaline battery. 1.5Vⅹ3 |
Operating Temperature. | - 10℃ ~ + 40℃ |
Working humidity | ≤85% RH under 20℃ |
Remote Control Receiver Range | 15Rice |
Remote Control Power Supply | 7AAABattery1.5Vх2 |
Section 3: Specifications and Parameters
Model | MaximumRange(kg) | MinimumRange(kg) | Graduation value(kg) | Degree(s) (n) |
FH-R-01 (1ton) | 1000 | 10 | 0.5 | 2000 |
FH-R-02（2tons) | 2000 | 20 | 1 | 2000 |
FH-R-03（3tons) | 3000 | 20 | 1 | 3000 |
FH-R-05（5tons) | 5000 | 40 | 2 | 3000 |
FH-R-10（10tons) | 10000 | 100 | 5 | 2000 |
FH-R-20（20tons) | 20000 | 200 | 10 | 2000 |
FH-R-30（30tons) | 30000 | 200 | 10 | 3000 |
FH-R-50（50tons) | 50000 | 400 | 20 | 2500 |
FH-R-100（100tons) | 100000 | 1000 | 50 | 2000 |
FH-R-200（200tons) | 200000 | 2000 | 100 | 2000 |
