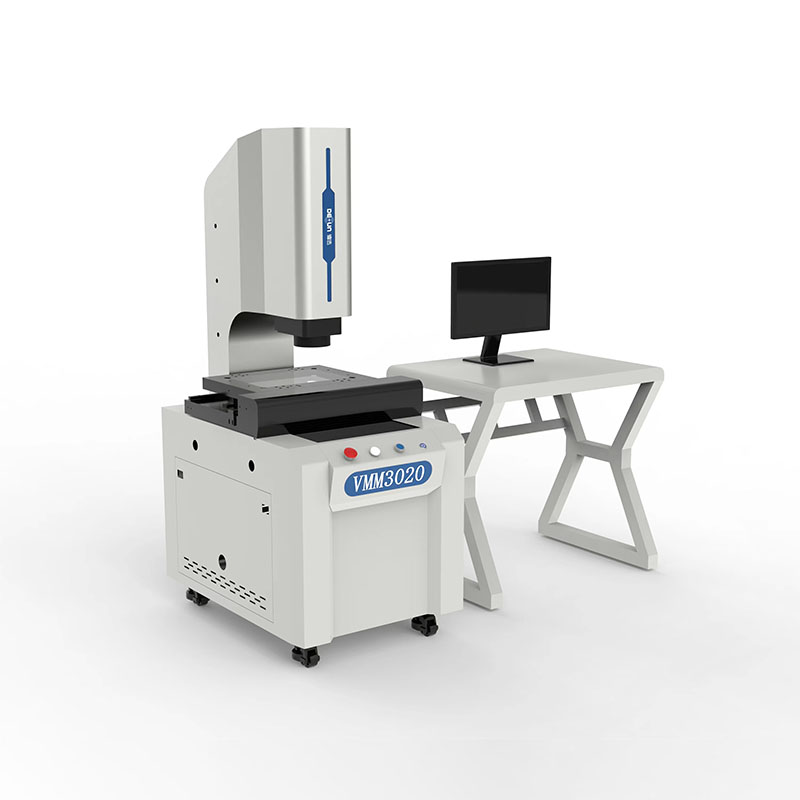

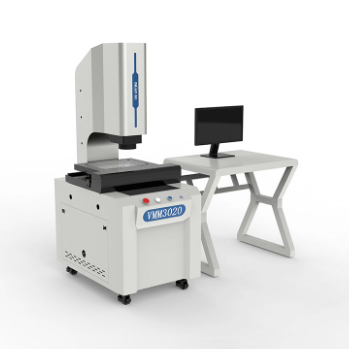

Product Introduction:All-in-one automatic flash measurement instrument, specifically designed and manufactured for our company's rapid and precise multi-size detection of large two-dimensional workpieces. The equipment features large measurement range, fast detection efficiency, and high detection accuracy. Equipped with a rich array of image measurement modules, it can accommodate various workpiece measurements. The device is composed of a high-precision control system and a high-precision image detection module, featuring imported servo motors, ground-level ball screw, and high-resolution glass scales in the motion control system, ensuring high positioning accuracy and low noise. The image detection module utilizes high-resolution cameras, automatic zoom lenses, and multi-angle ring lights, with LED far-core cold light sources, enabling the detection of contour, points, lines, circles, arcs, and distances on two-dimensional planes for different workpieces. The equipment also incorporates expandable modules.
Product Features:
1. The base is made of marble (Grade 00), featuring a robust platform design that ensures exceptional stability and rigidity.
2. Utilizing grinding-grade ball screws and precision linear guides, paired with an integrated controller for operation, offering high precision, high speed, and high stability.
3. All three axes utilize imported Panasonic servo drives and motors.
4. The 5 million Sony chip large target area high-speed fiber optic high frame rate digital camera does not require an image acquisition card for clearer imaging.
5. Low distortion telecentric lenses, offering higher precision and a wider field of view.
6. Programmable surface light and parallel cold light source with adjustable brightness.
Equipped with a SIPIN 0.5um grating ruler.
