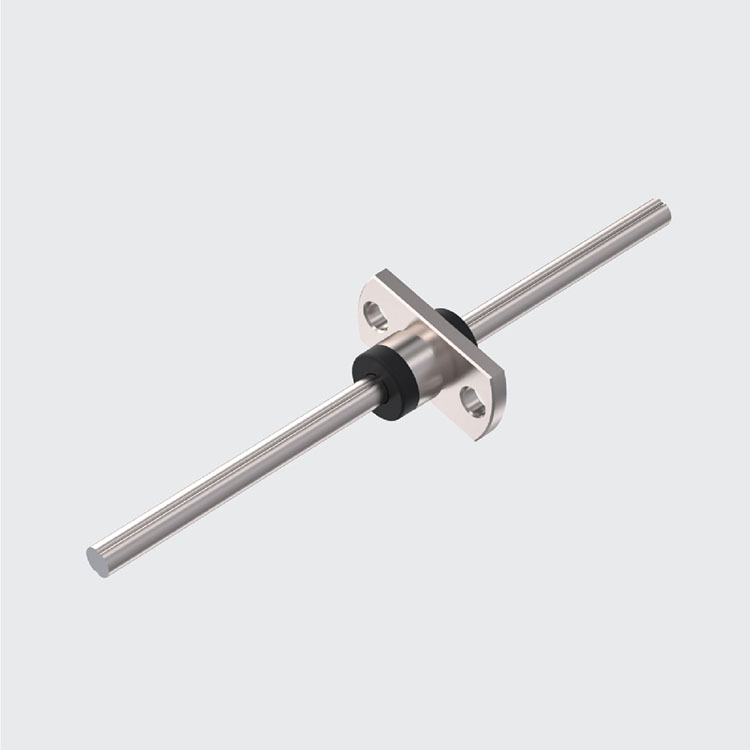

Product Name: HCF Series Flanged Ball Splines
Axle Diameter: 3/4/5/6/8/10/12/15/20/25/30/40
Product Applications: Precision Instruments, Electronic Equipment, Testing Equipment, Medical Devices, Automation Lines, etc.
Product Features
Compact size
Unique steel ball retention method without using retainers
Meet a variety of needs
The outer casing is in a flange shape, with specifications available for both hollow shaft and solid shaft keyshafts.
Ultra compact size
The ultra-small size features a minimum shaft diameter of just 3mm and an outer cylinder diameter of only 7mm.
4-point contact structure
Utilizing a simple structure with steel balls in contact with the track at 4 points, it boasts high rigidity and a compact design. It provides excellent balance and high rigidity for loads in any direction.
Product Specifications
Naming Rules:

Selection Parameters:

Product Dimensions:
