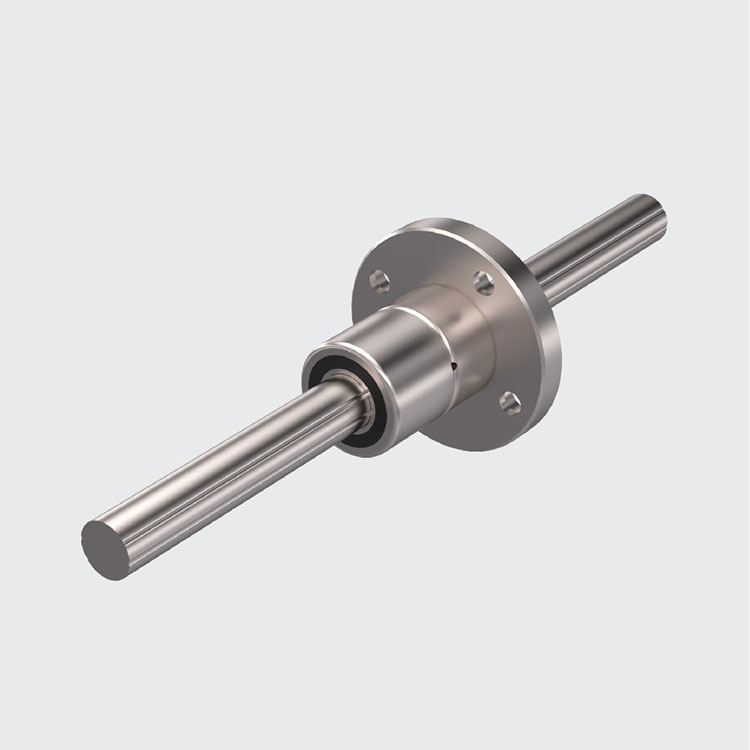

Product Name: CLF Series Circular Flange Type Ball Splines
Axle Diameter: 6/8/10/13/16/20/25/30/40/50
Product Applications: Industrial Robots, Multi-axis Systems, Assembly Lines, Inspection Platforms, etc.
Product Features
Four-slot Reinforcement
Unique four-channel design increases load capacity by over 40%.
High rigidity
Special contact structure design for high torque and moment rigidity
Diverse
The key shaft comes in solid and hollow varieties, and the best product can be selected according to the specifications of the machinery/equipment.
Interchangeability
Standardized dimensions for easy maintenance and component replacement
Product Specifications
Naming Rules:
Selection Parameters:
Product Dimensions:
