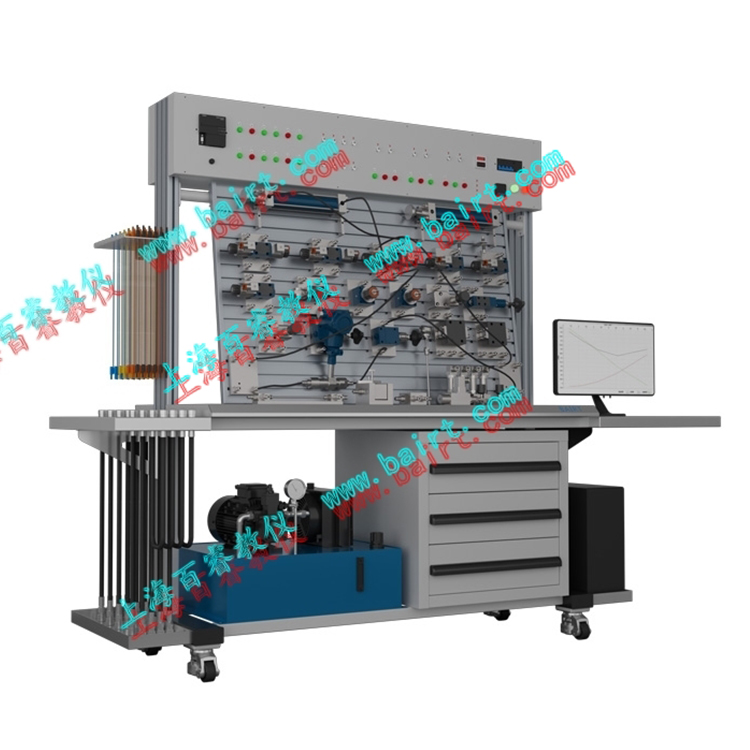

YQ-B Type Hydraulic and Pneumatic Integrated Experimental Bench (Intelligent Fluid + Pneumatic)
Overview
The YQ-B double-sided hydraulic-pneumatic PLC control experiment bench is uniquely designed to meet customer requirements, making full use of existing experimental equipment. It features a double-sided combination of pneumatic-hydraulic experiments. This bench provides two sets of different gas and liquid components for independent experiments, thereby reducing procurement costs and conserving laboratory space. It effectively saves resources while ensuring two complete sets of experiments, offering high cost-performance!
Lab Bench Assembly
1. The experimental bench is composed of several parts, including the experimental workbench, hydraulic pump station, common hydraulic components, electrical control unit, and data acquisition system. 2. The experimental workbench consists of a steel (single molding process) main body and an aluminum alloy profile operational panel. The panel features an "T" groove-shaped aluminum alloy profile structure, allowing for convenient and flexible installation of hydraulic components and connection of experimental circuits.
Performance Description:
Performance testing of commonly used hydraulic components.
2. Various common hydraulic transmission and pneumatic circuit connection experiments.
3. Programming exercises for Programmable Logic Controllers (PLC) and electrical control experiments
4. Extensible experiments designed and assembled by students.
Technical Specifications:
Hydraulic Plate
System rated working pressure: 6.3 Mpa. (Up to 7 Mpa max.)
Electric motor-pump assembly (1 unit)
Variable pitch impeller pump - Motor: 1 unit
Variable Vane Pump: Single-direction, nominal displacement 6.67 mL/r, volumetric efficiency 90%.
Motor: 3-phase AC voltage, 2HP 4P, 1450 rpm
2. Pneumatic Surface
Air Pump Input Voltage: AC 220V/50Hz
Motor (Dual Head) Power: 250W
Rated Output Pressure: 0.8 Mpa
Air Pump Capacity: 20L
Work noise: < 60 decibels
Workbench Dimensions: Length x Width x Height = 1600mm x 680mm x 1800mm (Approx. 300kg after packaging)
