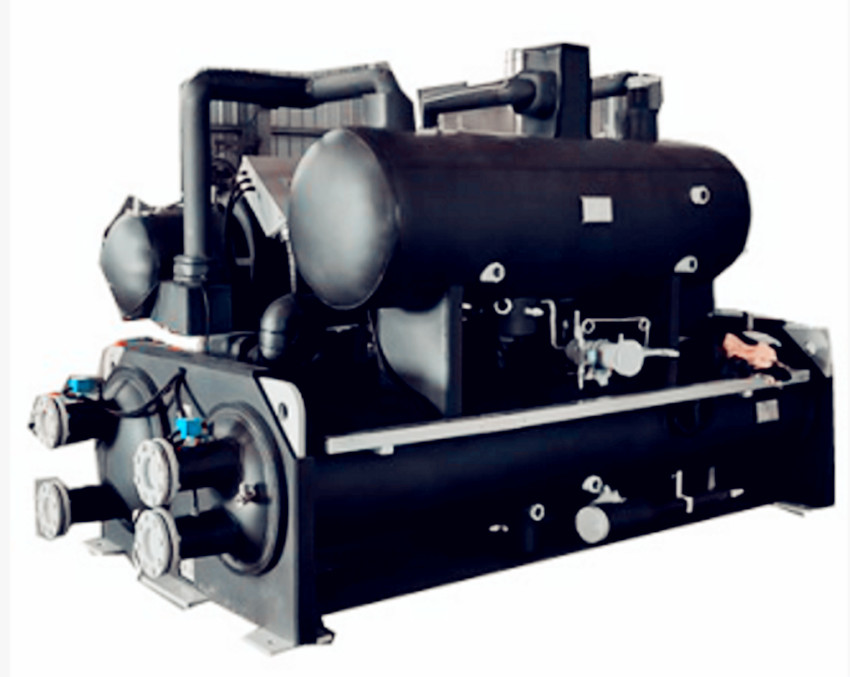

Micro-pressure super-high-temperature heat pump unit, 120 degrees

Our company specializes in the research, development, and production of micro-pressure super-high-temperature heat pump units, widely used in the low-grade waste heat recovery field. These units can recover waste heat from water, exhaust steam, and exhaust air, producing micro-pressure steam and high-temperature hot water. With a broad range of waste heat utilization and large heating coverage with diverse types, they are stable, reliable, unattended, and highly efficient and environmentally friendly. As environmental protection policies tighten, coal-fired boilers are being phased out, and the green and efficient micro-pressure steam heat pump units offer a promising market prospect compared to traditional steam production methods.

Features of Micro-pressure Super High Temperature Heat Pump Unit:

1. Equipped with a dedicated RC2-T series screw compressor, offering stable and reliable performance, capable of recovering waste heat from 45~85℃ to produce steam at 105~120℃ or hot water at 85~120℃, with a heating COP as high as 10.8.

2. The low-pressure steam heat pump unit employs the medium-pressure working fluid R245fa, offering green and environmental protection, with moderate system pressure and an operating temperature range within the optimal performance temperature zone of the working fluid.

3. Modular unit design for the equipment, flexible to match centralized and decentralized heating demands of users, as close as possible to the heating site, reducing pipeline losses and lowering costs.

4. Automated control systems respond quickly to changes in waste heat temperature, ensuring the super-high temperature heat pump units are always operating at peak efficiency; real-time monitoring of system operation status, with immediate warnings or alarms issued upon data anomalies, and automatic protective actions initiated.

5. Cloud-based intelligent platform for remote real-time monitoring of equipment operation status, allowing for easy access to historical data, alerts, big data analysis, and diagnostics to ensure safe, stable, and efficient operation of the equipment.

6. The micro-pressure super-high-temperature heat pump unit test system is fully equipped, with an independently owned intellectual property test bench that can achieve steam/hot water test conditions up to 180℃, reducing on-site debugging time for customers and ensuring the unit's reliability to the maximum extent.
