Brief Description

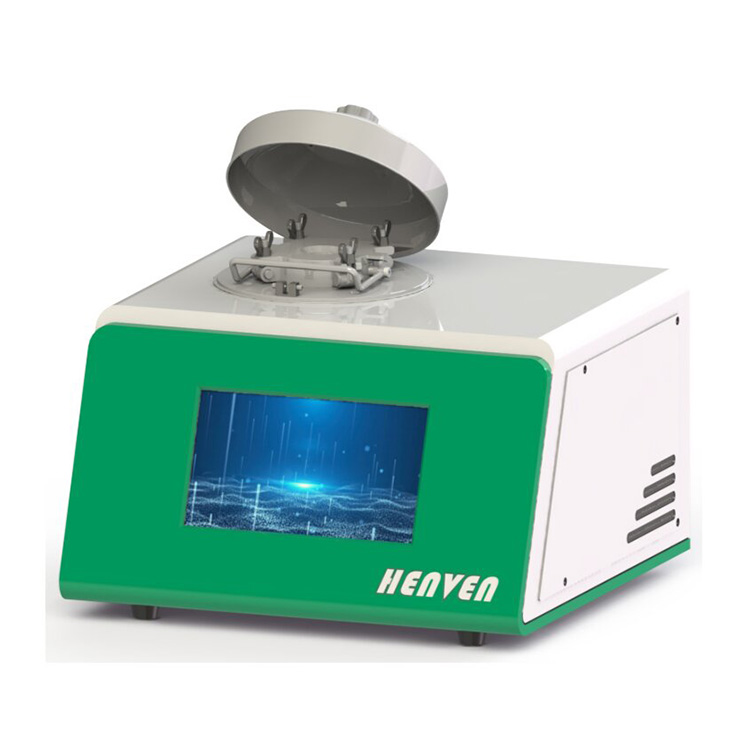

The High-Voltage Dynamic Stability Tester is suitable for assessing the safe storage life of propellants and double-base solid propellants. The instrument, based on GJB 770B-2005 506.1 (Thermal Accelerated Aging Method), measures the accelerated aging decomposition cycles of propellants and double-base solid propellants at different temperatures, providing an effective basis for determining the safe storage life of the samples.
Instrument Features
Completely made of stainless steel, featuring corrosion resistance, high pressure resistance, and heat resistance. Utilizes a modular integrated design, including oil bath temperature control, single-tube testing chamber, pressure control, toxic gas purification, over-limit alarms, touch screen display and control, and more. This unit maintains the original key parameters and conditions while achieving digital and programmable automatic control, high-precision PID automatic temperature control, enhancing the accuracy of measurement results, optimizing the testing environment, and ensuring easy operation. The raw test data is directly processed into final results by the computer. It also offers online analysis and detection of the reaction process, temperature, pressure, and reaction gases.
Application Scope
主要用于 explosive materials chemical stability evaluation and analysis determination.
Applicable to universities and enterprises engaged in the research, development, production, and teaching of propellants and double-base solid propellant systems.
Specification Parameters
Temperature Range: Room Temperature - 150℃
Temperature Control Accuracy: ≤±0.2℃
Ultimate pressure resistance: Maximum pressure 16 MPa.
Pressure Monitoring: 0-600 KPa
Sample Basket: Volume 50ml
Filter Function: Utilize vacuum suction to introduce toxic gases into an absorbent solution for gas purification.
Alarm Function: Automatically identifies pressure and temperature out of limit (including buzzer, alarm light, software interface color change and blinking, and other abnormal recognition alarm reminders).
Data Collection: encompasses the overall communication and control of the integrated units, including the sample temperature measurement unit, alarm prompt unit, oil bath heating unit, oil bath temperature control unit, and touch screen display unit, utilizing an ARM controller, with embedded software system responsible for the overall operation.
Online Detection: Features gas exchange and online sampling of reaction gases (reaction gases can be detected by an external mass spectrometer).
Ø Explosion-proof Design: Main components are made of 304 stainless steel, featuring corrosion resistance, high-temperature resistance, and explosion-proof capabilities.
Total electrical power: 220V, 2000W
