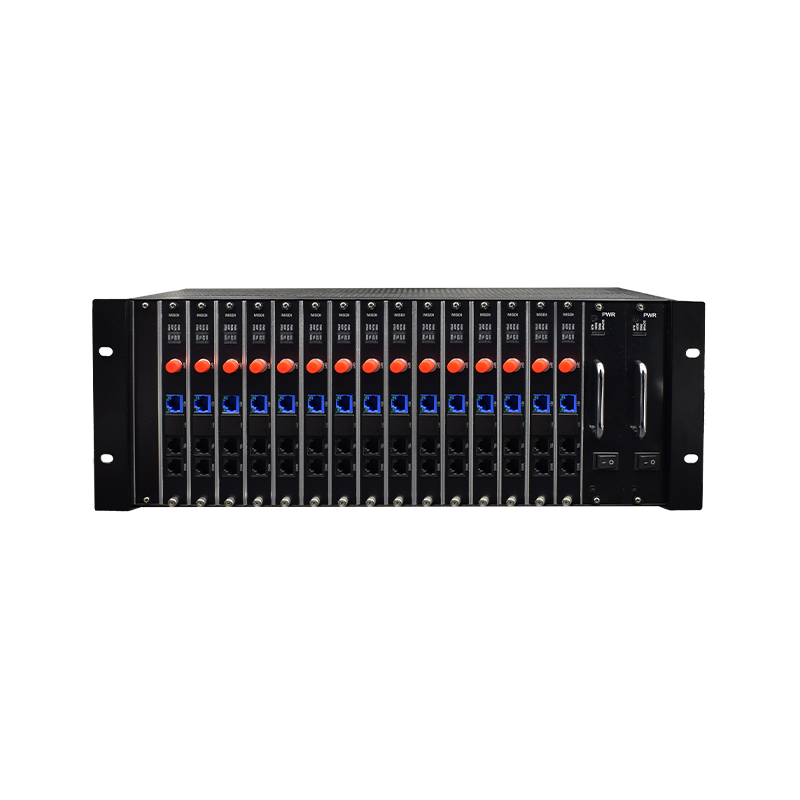

The HJ-GAN400 series centralized high-definition video optical transceivers are our independently developed and produced 4U rack-mount full digital fiber optic transmission equipment, which facilitates unified management of the equipment in the central equipment room.
Standard 4U rackmount case with card-slot design, featuring 16 service slots + 1 network management slot + (1~2) power slots. The 16 service slots can accommodate various video optical transceiver cards to meet customer requirements. All modules within the case support hot-swapping, allowing for replacement of a faulty card without power interruption, enhancing system reliability and maintainability.
The HJ-GAN400 series star video optical transmitters are widely used in security systems, intelligent transportation systems (ITS), expressway video surveillance systems, public security monitoring, power/water safety monitoring systems, high-fidelity video conferencing systems, public security three/four-level networks, broadcasting and television systems, coal mine safety monitoring systems, monitoring systems, remote studio digital video transmission, and industrial production monitoring systems, among many other fields.
Feature Highlights:
1. All interfaces are equipped with surge protection and three-level lightning protection
2. Supports video, audio, data, phone, Ethernet, E1 (G.703), and more.
3. Supports high-definition video SDI, HDMI, DVI/VGA, KVM, etc.
4. Supports two-way video, two-way audio, and two-way data
5. Modular design for easy expansion and convenient maintenance
6. Gigabit fiber transmission, high capacity, easy to upgrade
7. All-digital, uncompressed transmission
8. Supports 8M video bandwidth
9. Supports any high-definition video signal
10. Auto-compatible with PAL, NTSC, and SECAM video formats
11. Optional 1+1 dual power backup; available in AC/DC power supply options
12. No intermodulation interference involving frequency, phase, or amplitude tuning
13. No Electromagnetic Interference (EMI), Radio Frequency Interference (RFI)
14. Industrial-grade design, SMT technology
15. Fiber Optic Interface: FC/SC; Single-mode/Multimode; 0-100Km; (Customized according to customer's requirement)
16. Comprehensive network management features, real-time detection of various device operating states (optional)
17", 19" 4U Aluminum Extrusion Chassis
