With the continuous development of social economy and the strengthening of anti-terrorism efforts, there is an increasing challenge to public security video surveillance. Traditional standard-definition analog video social monitoring is no longer sufficient to meet public security needs. High-definition IP video has become a new surveillance tool, but it brings the necessity for higher transmission bandwidth requirements. High bandwidth, high security, and mixed multi-service transmission are inevitable choices. Currently, point-to-point transmission and Ethernet shared single-service access in access networks do not meet user needs. Compared to the traditional approach of adding multiple coverage devices to the existing network, a single multi-service access platform has become a better option.

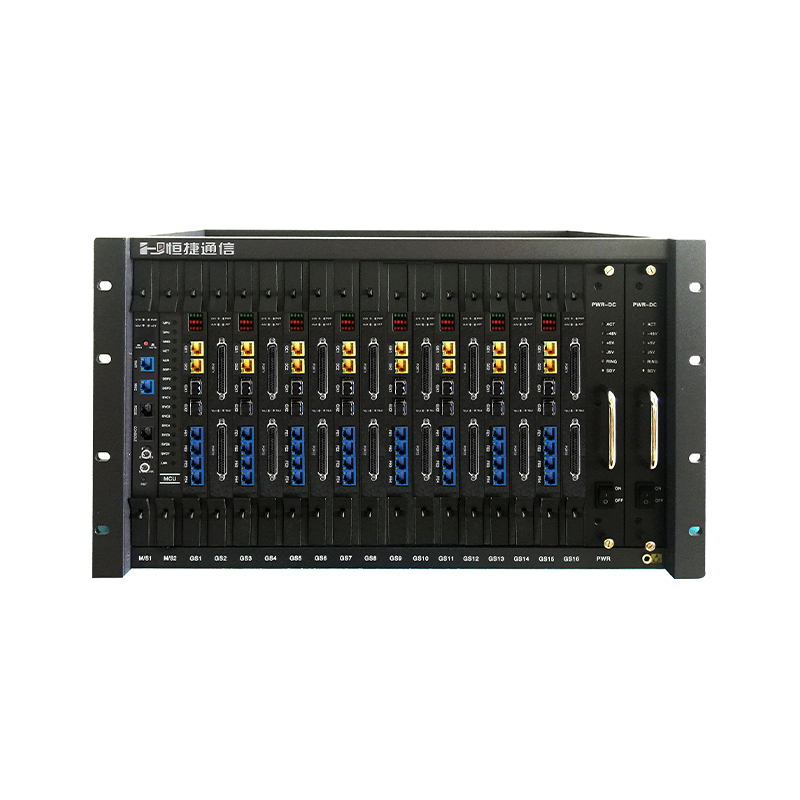

The GAN800 Centralized Gigabit Ethernet Optical Terminal is an integrated platform that combines system management, schedule monitoring, fiber transmission, and programmed exchange. Designed specifically for the network upgrade needs of Public Security levels 3, 4, and 5, it is a high-capacity, multi-service, highly scalable, and reliable comprehensive optical transmission platform. Each unit can provide up to 2048 telephone extensions, and can transmit multiple bi-directional uncompressed video, multiple isolated 1000M Ethernet, multiple isolated 100M Ethernet, multiple phone lines, multiple high-fidelity audio, multiple RS232/485/422 asynchronous data, multiple switch quantities, and multiple E1 signals over a single-mode fiber. This single fiber enables the networking of Public Security levels 3, 4, and 5. The series can be optionally equipped with dual-fiber backup for fiber route protection, and supports the Huaqiao Communication iNet View G2000 Network Management Platform.
The GAN800 optical terminal uses a modular design, providing network management cards, optical transceiver modules, programmable exchange modules, and functional expansion modules for various services. The optical transceiver modules feature high-speed optical transmission channels, supporting bi-directional video, gigabit Ethernet, and megabit Ethernet services. The functional expansion modules include multi-line telephone expansion modules, digital signaling, and data/switching quantity expansion modules, for extending low-speed services. All optical transceiver modules and functional expansion modules are connected to the high-speed backplane of the chassis via a unified interface. The remote integrated service optical terminal can be optionally equipped with different functional transceiver modules and can combine various functional expansion modules to achieve centralized gigabit Ethernet optical terminal solutions for transmitting various services and meeting different functional requirements.
Feature Highlights:
1. Features exchange capability for 4096×4096 time slots
2. Modular structure design, offering ≥16 business slots, ≥1 network management slot, and ≥2 power slots; each business slot supports mixed insertion of voice cards and data cards.
3. Data business card set ≥ 3 pieces, each card supporting: ≥2 optical ports for 1+1 protection, 2 1000M network ports, 1-8 100M network ports, 4-8 E1 interfaces, ≥32 voice channels, and physical isolation for each Ethernet port.
4. Voice Service Card: ≥3 pieces; each voice card interface: voice interface: ≥32 channels.
5. Optical Transmission Distance: Supports 20-100 km.
6. All interfaces are equipped with surge and lightning protection capabilities.
7. Supports up to 2048 maximum analog interfaces (extensions + trunks)
8.电信级产品设计, with network management disk support, SCU hot backup capability; dual power supply backup and load sharing; 1+1 protection for optical access branch disk; SFP hot-pluggable optical interface card with full hot-pluggable design.
9. Supports digital trunks for NO.7, NO.1, RPI, VOIP, and more.
10. 16 expansion slots, with flexible combination of expansion drives.
11. Individual sub-chassis supports up to 16 optical interface cards or 32 physical isolation Gigabit Ethernet ports, 64 physical isolation Fast Ethernet ports, or 128 uncompressed video channels.
12. Single optical transceiver module for 1-core fiber transmission, supports dual-fiber backup, and is compatible with CWDM.
13. Modular design with separate units for optical transceivers, expansion disks, and the main chassis, supporting hot swapping.
14. Supports dual power redundancy with DC power supply or AC 220V.
15. Supports the online software upgrade feature for local device PCBs and remote devices on the network management platform.
