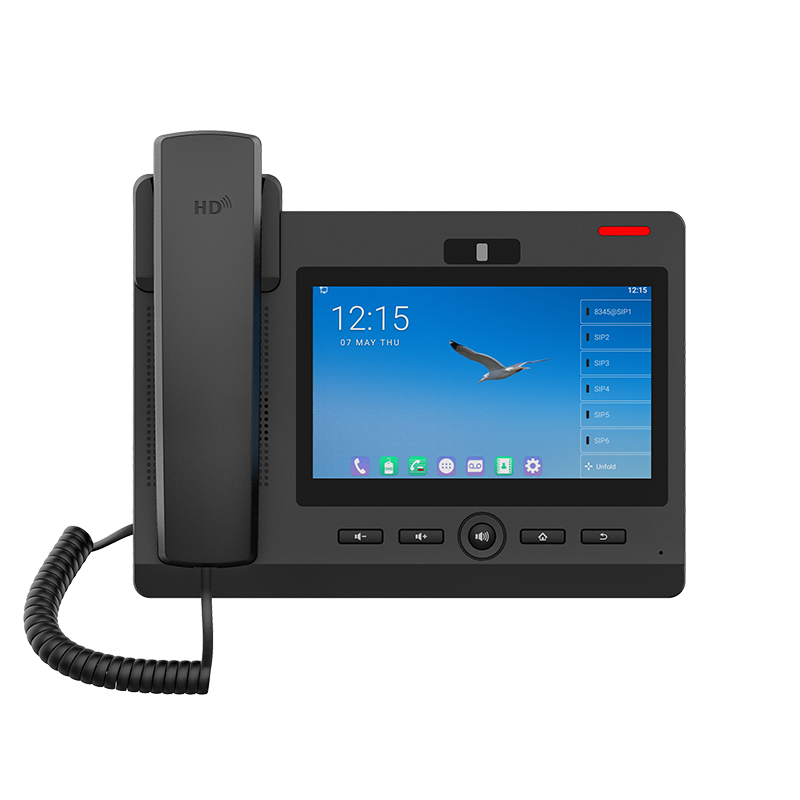

The HJ-C800 is a high-end smart phone that integrates sound, video, and applications. Based on the Android 9.0 system, it supports the installation and use of third-party Android apps with a user-friendly interface. Equipped with a 7-inch color touchscreen, it has built-in USB 2.0 and TF card interfaces, as well as an HDMI port, providing enterprise-level unified communication and expandable value-added services. It offers a rich and flexible desktop communication product solution for businesses.
Feature highlights
√ Virtual Programmable Buttons — Dynamically displays up to 4 pages, with each page capable of setting the status of 28 DSS keys, supporting a maximum of 112 DSS keys for custom configuration. Each DSS key can be set to Line/BLF/Direct Dial Accessory, etc.
✓ Gigabit Ethernet — Adaptive 10/100/1000Mbps network port, offering high-speed network transmission, supports PoE power supply.
✓ 7-inch color screen design for an enhanced user experience, easy operation, and easy access.
√ Supports H.264 video decoding, can bind cameras, provides video intercom access control, enables video calls, allows viewing access control video on the main screen of the phone, and remotely unlocks doors and other applications.
✓ Modern minimalist appearance, cost-effective design concept, high-resolution TFT color display, offering a rich visual experience.
√ High Compatibility — Compatible with mainstream IP PBX/SOFT SWITCH/IMS platforms based on SIP, such as Asterisk, Broadsoft, 3CX, metaswitch, Elastix, Avaya, etc.
Basic Functions
20 SIP Lines
High-definition voice
High-definition video (Local 720P/Remote 1080P)
Power over Ethernet (PoE)
7-inch 1024x600 Color Touchscreen
Handle / Hands-free / Headset Mode
Smart DSS Key (Virtual Key)
Power Adapter (sold separately)
Android System Features
Android OS 9.0, a more secure and compatible system
Built-in Apps: File Explorer, Calendar, Camera, Gallery, Web Browser, Email, Calculator, Notebook, Recorder, Clock, Video Player, Music
Supports installation and operation of third-party applications
Fanvil二次开发API
Phone Functionality
Local Phone Directory (2000 Entries)
Network Phonebook (Supports Huawei Unified Directory/XML/LDAP, 2000 Entries)
Contact Person/Call Intelligent Search
Call Logs (Missed Calls/Incoming Calls/Outgoing Calls, 1000 Entries)
Blacklist / Whitelist
Screen Saver on Standby
Voice Message (VM)
User-Defined DSS Key
Network Time Synchronization
Recording (Local Recording / Local Call Recording / Server Call Recording)
Video
Action URL / Active URI
uaCSTA
Dialing rules
SIP Hotspots
Distinguish between ringers
Custom Ringtones
Multicast
Action Plan
Time Plan
Call Function
Dial / Answer / Reject
Mute / Unmute (Microphone)
Call Maintenance / Restoration
Call Waiting
Intercom Function
Caller ID
Speed dial
Anonymous Call
Call Forwarding (Unconditional / Busy / No Answer)
Call Forwarding (Available/Unavailable)
BLF/Grab the order
Call Holding / Retrieval (requires server coordination)
Redial
Do Not Disturb
Automatic Answering
Call Back
Tripartite Meeting
Hotline / Warm Line
IP Direct Dial
Shared Phone (Hot Desking)
Video Features
Video Decoding: H.264
Video Call Resolution: QVGA / CIF / VGA / 4CIF / 720P / 1080P
Image Formats: JPEG/PNG/BMP
Video Format: MP4
Broadband Range: 64kbps to 4Mbps
Video Frame Rate: 5~30 fps
Remote video full-screen display mode
Video Conference
Built-in camera
2.0 megapixels
Adjustable video angle
Video Preview
Audio Features
High-Definition Handlebar/Microphone (Handlebar/Microphone, 0 ~ 7KHz Frequency Response)
Broadband ADC/DAC 16kHz Sampling
Narrowband Encoding: G.711a/u, G.729AB, iLBC
Broadband Coding: G.722, Opus
Full-duplex hands-free calling, with Acoustic Echo Cancellation (AEC) support
Noise Reduction (NR)
Packet Loss Compensationncealment )
Dynamic Adaptive Jitter Buffer
DTMF: In-band audio, Out-of-band - DTMF transfer (RFC2833) / SIP INFO
Network Features
10/100/1000Mbps Ethernet (bridging mode)
IP Mode: IPv4
IP Acquisition Method: Static IP Setup / DHCP
Supports 802.1x network access authentication
VPN: OpenVPN (requires third-party app support)
Virtual Local Area Network (VLAN)
Link Layer Discovery Protocol (LLDP)
Cisco Discovery Protocol (CDP)
Quality of Service (QoS) Guarantee
Primary Backup SIP Server
Relevant agreements
SIP2.0 over UDP/TCP/TLS
DNS A/SRV/NAPTR
RTP/RTCP/SRTP
STUN
DHCP
LLDP
CDP
802.1x
OpenVPN (requires third-party app support)
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069
Configuration and Management
Automated deployment and configuration (Auto-Provisioning) via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PnP/TR-069
Web Management Interface
Support third-party apps
Supports Web
Supports encrypted download of configuration files (AES)
Supports website upgrade
Support factory reset
Physical Specifications
Color: Black
Main Screen x1: 7-inch (1024x600) Color Screen, IPS
Capacitive Touchscreen
Keyboard: 5 keys, including
1 Home key
1 Return Key
2 voice control keys, increase/decrease
1 hands-free key
High-definition Handle (RJ9) x1
Standard RJ9 Handle Curve x1
1.5M CAT5 Ethernet Cable x1
Phone bracket x1
RJ9 interface x2: Handle x1, Earphone x1
RJ45 jacks x2: Network x1, PC x1 (Network bridging mode)
HDMI II Interface x1: Type A
USB2.0 Interface x1: Standard A x1, Connects to USB flash drive
TF card slot x1: TF card supports up to 128G
Power Supply: 5V/2A or PoE Class 3
Power Consumption (PoE): 3.11~10.76W
Power Consumption (Power Adapter): 2.38~8.4W
Operating Temperature: 0~45℃
Relative Humidity: 10~95%
Installation Method: Desktop or Wall-Mounted
Product Dimensions
Desktop (Angle 1): 254.8 x 154.9 x 202.8 mm
Desktop (Angle 2): 254.8 x 167.8 x 182.4 mm
Wall-mounted: 254.8 x 118.4 x 206.9 mm
Packaging Size: 290x260x73mm
Outer Carton Dimensions: 540385x310mm (10 pcs per set)
