Product Specifications

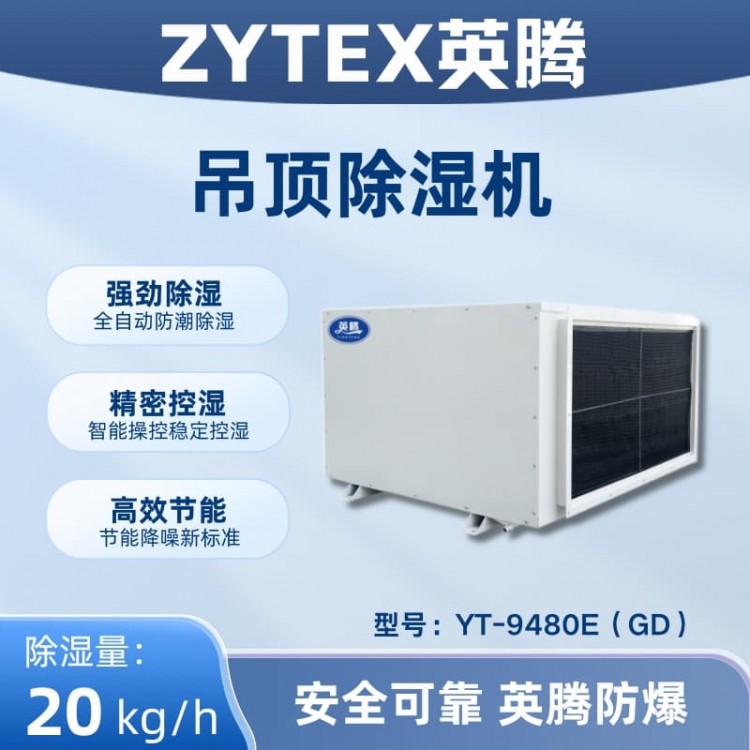

Model: YT-9480E(GD)
Brand: YingTeng
Dehumidification Rate (Operating Condition: 90%RH, 30℃): 20 kg/h
Power: 380V/50Hz
Input Power: 8200W
Defrosting Method: Automatic Defrost
Re-circulating Air Volume: 5600 m³/h
Drainage Method: Hose Drainage
Airflow Method: Front Delivery, Rear Intake
Operating Environment Temperature: 5-38℃
Weight: 220 kg
Dimensions: Length 1200mm, Width 1100mm, Height 700mm
Note: Customized explosion-proof models are available. Please note that the above technical specifications are subject to change without prior notice; the actual machine specifications shall prevail!
Equipped with an automatic humidity control dehumidifier, adjustable from 10%-90% humidity. No need for专人 supervision; simply set it up and it runs automatically (the dehumidifier turns on to remove moisture when humidity is too high, and switches to standby mode when humidity reaches the set point). Offers humanized full automation, high efficiency, and energy-saving.
The machine's humidity control switch can be separately routed to any location for user convenience in real-time observation and control.
Multiple protections: The unit is equipped with protections for overload, short circuit, phase loss, overheat, high voltage, low voltage, etc.
Machine features automatic fault detection; in case of a fault, it will automatically identify the cause and display the corresponding fault code, facilitating maintenance.
Utilizing internationally renowned brand compressors, powerful and effective dehumidification.
Designs an automatic defrosting feature. The dehumidifier will frost when the temperature drops below 18°C, to ensure optimal performance, an automatic frost detection defrosting function is added to ensure normal operation at low temperatures.
Ceiling Dehumidifier Principle
Based on the standard dehumidifier, additional configurations are added, with adjustments to air volume and pressure. The intake and exhaust are connected to the machine via flanges and ducts, drawing damp indoor air into the unit through the site's piping for processing. The dried air is then recirculated back into the room, thereby achieving the dehumidification goal through this continuous cycle.
