Product Specifications

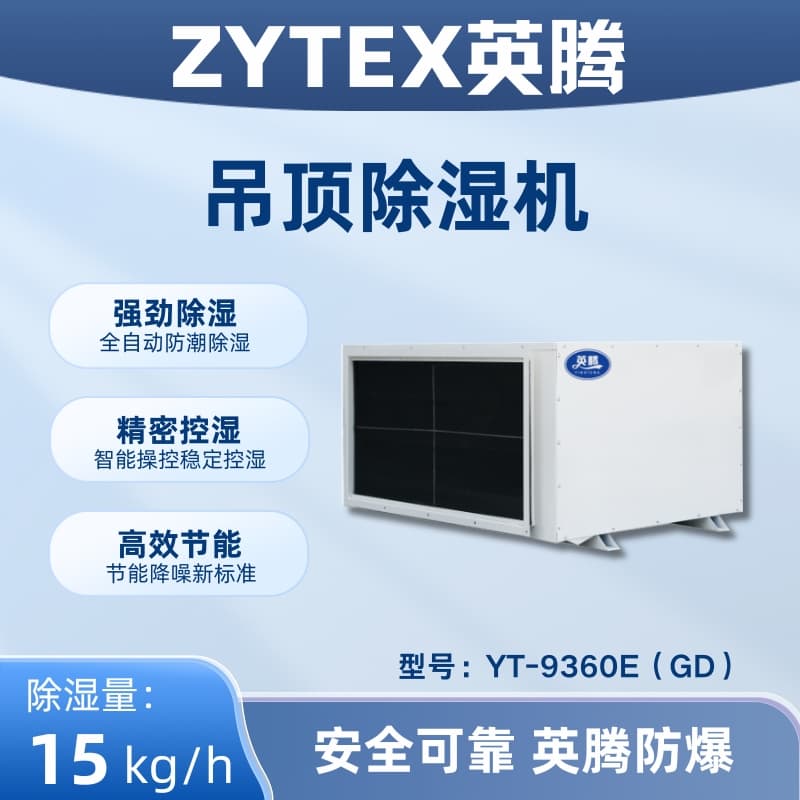

Model: YT-9360E(GD)
Brand: YingTeng
Dehumidification Capacity (condition 90%RH at 30℃): 15kg/h
Power: 380V/50Hz
Input Power: 6500W
Defrosting Method: Auto Defrost
Recirculating Airflow: 5000 m³/h
Drainage Method: Hose Drainage
Airflow Method: Front supply, rear intake
Operating Environment Temperature: 5-38℃
Weight: 205 kg
Dimensions: Length 1100mm, Width 1300mm, Height 700mm
Note: Customized explosion-proof models are available. The above technical specifications are subject to change without prior notice; please refer to the actual machine!
Automatic humidity control dehumidifier with settings from 10%-90% humidity, no need for personnel supervision. Simply set it up, and it operates automatically (the dehumidifier turns on to remove moisture when humidity is too high, and remains in standby when humidity is reached), achieving a user-friendly, fully automatic control system with high efficiency and energy-saving.
The machine's humidity control switch can be isolated and placed at any convenient location for users to control and observe in real-time.
Multiple Protections: The unit is equipped with protections for overload, short circuit, phase loss, overheat, high voltage, low voltage, etc.
Machine features automatic fault detection, automatically identifying the cause of any issues and displaying the corresponding fault codes for easy troubleshooting.
Utilizing internationally renowned brand compressors, powerful performance, and effective dehumidification.
Design with an automatic defrosting feature. When the dehumidifier operates at temperatures below 18°C, frost may form. To ensure optimal usage, an automatic frost-sensing defrosting function has been added to maintain normal operation in low temperatures.
Ceiling Dehumidifier Principle
Based on standard dehumidifiers, additional configurations are added, and air volume and pressure are adjusted and increased. The intake and exhaust are connected to the machine using flanges and ducts, drawing moist indoor air into the machine for processing through the site's piping. The dried air is then returned to the room, thereby continuously cycling to achieve dehumidification.
