Product Specifications

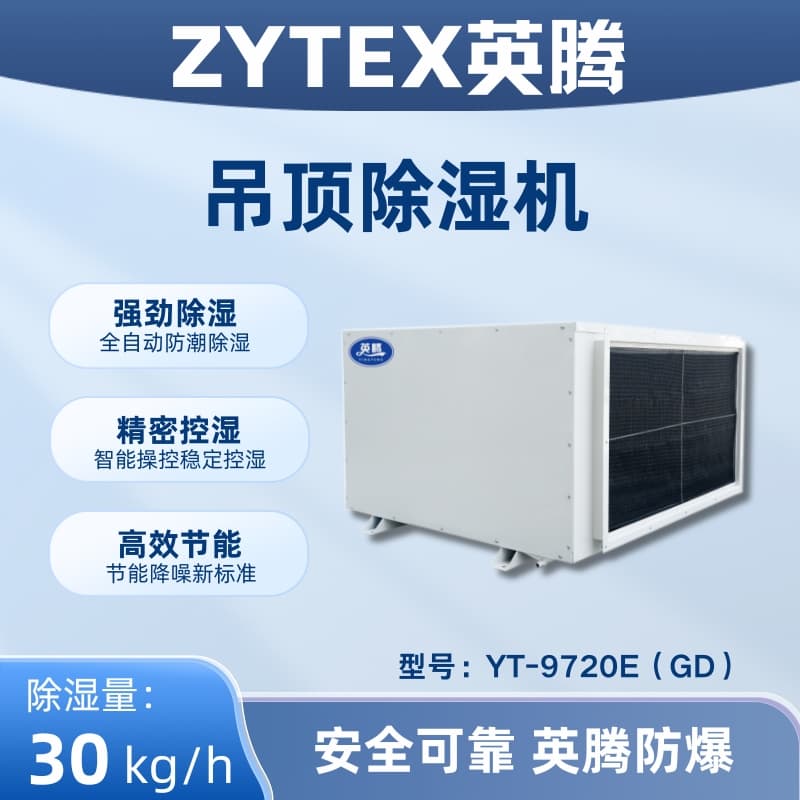

Model: YT-9720E(GD)
Brand: YingTeng
Dehumidification Rate (Operating Condition: 90%RH, 30℃): 30kg/h
Power: 380V/50Hz
Input Power: 13,500W
Defrosting Method: Automatic Defrost
Airflow: 7200 m³/h
Drainage Method: Hose Drainage
Airflow Method: Front Delivery, Rear Intake
Operating Temperature: 5-38℃
Weight: 290 kg
Dimensions: Length 1600mm, Width 1500mm, Height 780mm
Note: Customized explosion-proof models available. The above technical specifications are subject to change without prior notice; please refer to the actual machine for the most accurate information!
Automatic humidity control dehumidifier with settings from 10%-90% humidity, requiring no supervision. Once set, it operates automatically (turns on to dehumidify when humidity is too high, and goes into standby when humidity reaches the set point). Offers humanized full automation and energy-efficient operation.
The machine's humidity control switch can be separately routed to any location for user convenience in real-time monitoring and control.
Multiple Protections: The unit is equipped with protections for overload, short circuit, phase loss, overheat, high voltage, low voltage, etc.
Machine features automatic fault detection. In the event of a fault, the machine will automatically detect the cause and display the corresponding fault code for easy maintenance.
Utilizing internationally renowned brand compressors, powerful performance, and effective dehumidification.
Designs defrosting function automatically. The dehumidifier will frost over when the temperature drops below 18°C, to ensure optimal use, an automatic defrosting sensor has been added to ensure normal operation at low temperatures.
Ceiling-mounted Dehumidifier Principle
On the basis of a standard dehumidifier, we enhance the configuration, adjust and increase airflow and pressure. The intake and exhaust are connected using flanges and ducts, drawing moist air from the room into the machine through the site's piping for processing. The dried air is then returned to the room, thus creating a cycle that achieves dehumidification.
