Product Specifications

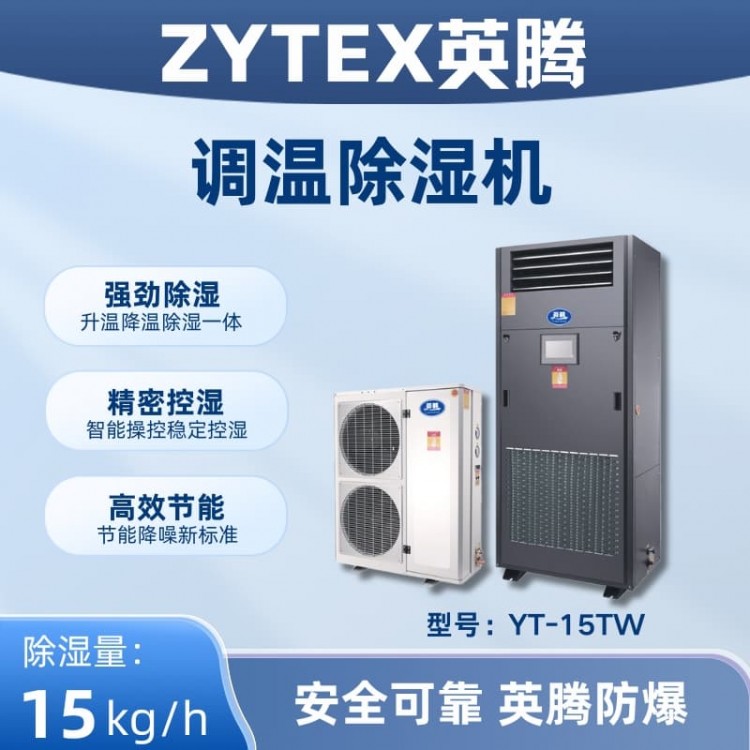

Model: YT-15TW
Brand: YingTeng
Engine performance:
Dehumidification Capacity: 15.2 kg/h, Cooling Capacity: 20.4 kW, Heating Capacity: 9 kW, Airflow: 4000 m³/h, External Static Pressure: 0-40 Pa, Power Supply: 3/NPEAC 380V 50Hz, Input Power: 6.2 kW
Compressor:
Type: Fully enclosed rotary compressor, Quantity: 2, Control Type: External balanced thermal expansion valve
Indoor unit:
Evaporator: High-efficiency copper tube with aluminum fin, Fan type: High-efficiency centrifugal fan, Filter type: Double-layer nylon filter mesh, Connection method: Threaded connection, Liquid tube: 2×φ12mm, Gas tube: 2×φ19mm, Length: 1187mm, Width: 500mm, Height: 1748mm, Weight: 150kg, Condenser quantity: 1
Outdoor Unit:
Condenser type: High-efficiency copper tube with aluminum fin, Condenser fan type: High-efficiency axial flow fan, Quantity: 2, Length: 840mm, Width: 814mm, Height: 1050mm, Weight: 200kg
Cooling and dehumidifying machines are used in industries that require temperature and humidity control within indoor environments. These machines utilize evaporators to cool and dehumidify the air, while also recovering the condensation heat from the system to compensate for the heat lost during cooling and dehumidification, making it an efficient and energy-saving dehumidification method. They are widely applied in fields such as civil air defense projects, tobacco, petrochemicals, electronics, aerospace, purification engineering, laboratories, telecommunications equipment rooms, archives, food storage rooms, pharmaceuticals, and special glass, among other places with high requirements for temperature and humidity control.
Cooling and Dehumidifier Working Principle:
As ambient air passes over the evaporator surface, due to the evaporator being cooler than the dew point of the air, water vapor condenses in the collection pan and is drained out through pipes. This reduces the air's humidity content, allowing for indoor heating, cooling, and dehumidification based on the user's requirements for the ambient temperature and humidity.
A dehumidifying cooler combines refrigeration and dehumidification into one unit, mainly consisting of: the refrigeration section, the preliminary filtration section, and the circulating fan section. It uses an up-airflow and down-airflow from the front side, with microcomputer programming to ensure the effective operation of each section, meeting the requirements for temperature and humidity in the operating environment.
Cooling and Dehumidification Machine Applications:
Aerospace & Aviation: Used for satellite and spacecraft assembly and testing facilities, controlling air temperature and humidity.
Pharmaceutical Industry: With the implementation of GMP certification, the temperature and humidity requirements for pharmaceutical production have become increasingly crucial. Yingteng cooling and dehumidification units can create an excellent environment for pharmaceutical production to ensure drug quality.
Electronics Industry: Low humidity requirements for precision equipment manufacturing, including electronic components, aerospace devices, and lithium batteries.
Food Industry: Dehumidifying coolers with sterilization function are particularly suitable for process applications requiring constant temperature and dry air for heat-sensitive food production lines, such as milk powder, freeze-dried vegetables, animal glue, and sugar.
Warehouse, library, archive room: Stored items, books, documents, etc. can be preserved in a temperature and humidity controlled environment for long-term, without damage.
Automotive Industry: Dehumidification and temperature control units are an indispensable air treatment equipment in the production of automotive parts within the automotive industry.
