Product Specifications

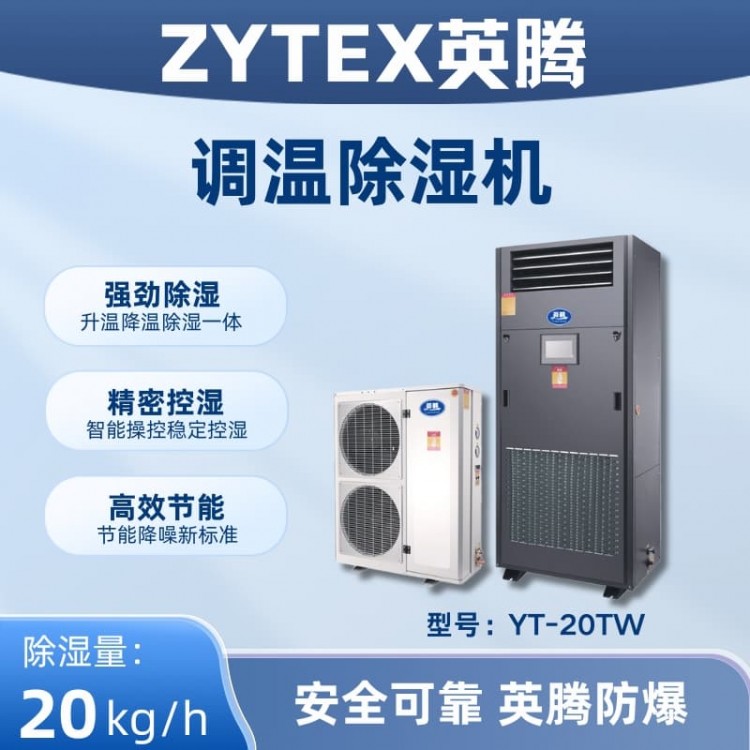

Model: YT-20TW
Brand: YingTeng
Engine performance:
Dehumidification capacity: 21kg/h, Cooling capacity: 25.2kW, Heating capacity: 12kW, Airflow: 5000m³/h, External static pressure: 0-40Pa, Power supply: 3/NPEAC 380V 50Hz, Input power: 8.1kW
Compressor:
Type: Fully enclosed rotary compressor, Quantity: 2, Control Type: External balanced thermal expansion valve
Indoor unit:
Evaporator in the form of high-efficiency copper tube with aluminum fin, fan type high-efficiency centrifugal fan, filter type crimson double-layer nylon filter mesh, connection pipe method threaded connection, liquid pipe 2×φ12mm, gas pipe 2×φ19mm, length 1187mm, width 500mm, height 1748mm, weight 165kg, condenser quantity 1
Outdoor Unit:
Condenser type: High-efficiency copper tube with aluminum fin, Condenser fan type: High-efficiency axial fan, Quantity: 2, Length: 840mm, Width: 814mm, Height: 1050mm, Weight: 210kg
Cooling and dehumidifying machines are used in industries that require adjusting indoor temperature and humidity, such as in civil defense projects, tobacco, petrochemicals, electronics, aerospace, purification projects, laboratories, telecommunications equipment rooms, archives, food storage rooms, pharmaceuticals, and special glass manufacturing. These machines utilize evaporators to cool and dehumidify the air while recovering the condensate heat from the system to compensate for the heat lost during cooling and dehumidification, making it an efficient and energy-saving dehumidification method.
Cooling and Dehumidifier Working Principle:
As ambient air passes over the evaporator surface, due to the evaporator's temperature being below the dew point of the air, water vapor condenses in the water collection tray and is drained out through pipes. This reduces the air's humidity content, allowing for indoor heating, cooling, and dehumidification based on the user's requirements for the environment's temperature and humidity.
Cooling and Dehumidification Unit is an effective combination of refrigeration and dehumidification, mainly consisting of: refrigeration section, preliminary filtration section, and circulating fan section. With an air supply from above and return air from the front side below, the microcomputer programming ensures efficient operation of each section, meeting the requirements for temperature and humidity in the operating environment.
Application Fields of Dehumidifying Coolers:
Aerospace & Aviation: Used for satellite and spacecraft assembly and testing facilities, controlling air temperature and humidity.
Pharmaceutical Industry: With the implementation of GMP certification, the temperature and humidity requirements for drug production have become increasingly crucial. Yinteng's cooling and dehumidification units can create an excellent environment for drug production to ensure the quality of the medication.
Electronics Industry: Low humidity requirements for the manufacturing of precision equipment such as electronic components, aerospace devices, and lithium batteries.
Food Industry: Dehumidifying coolers with sterilization function are particularly suitable for process applications requiring constant temperature and dry air for heat-sensitive food production lines, such as milk powder, freeze-dried vegetables, animal glue, and sugar.
Warehouse, library, archive room: Stored items, books, documents, etc. can be preserved in a temperature and humidity controlled environment, ensuring long-term damage-free storage.
Automotive Industry: Dehumidification and temperature control units are an indispensable air treatment equipment in the production of automotive parts in the automotive industry.
