Product Specifications

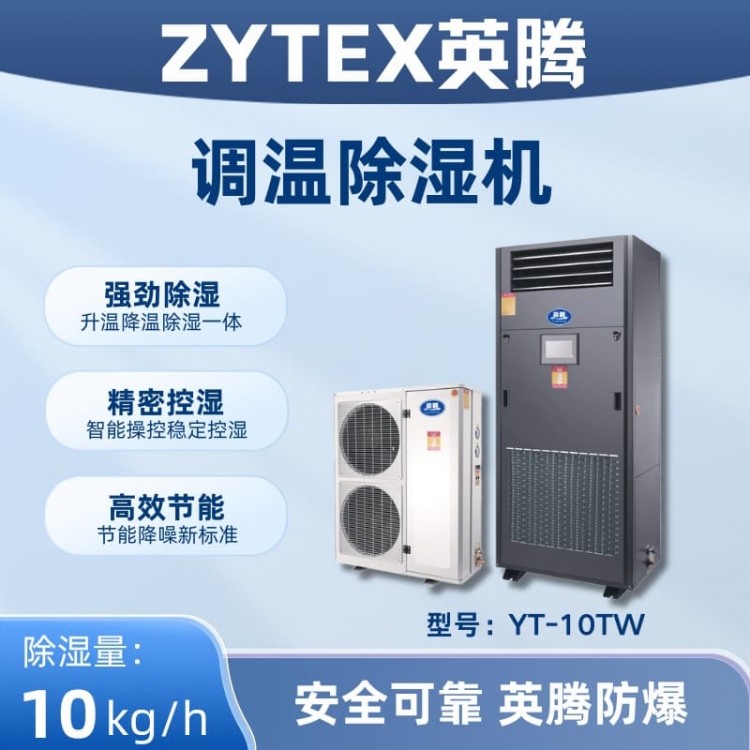

Model: YT-10TW
Brand: YingTeng
Engine performance:
Dehumidification capacity: 10.1 kg/h, Cooling capacity: 12.5 kW, Heating capacity: 6 kW, Airflow: 2600 m³/h, External static pressure: 0-30 Pa, Power supply: 3/NPEAC 380V 50Hz, Input power: 3.5 kW
Compressor:
Type: Fully Enclosed Rotary Compressor, Quantity: 1, Control Type: External Balance Throttling Valve
Indoor unit:
Evaporator in the form of high-efficiency copper tube with aluminum fin, centrifugal fan type, filter type red double-layer nylon mesh, connection method threaded, liquid tube 1×φ12mm, air tube 1×φ19mm, length 767mm, width 463mm, height 1720mm, weight 76kg, condenser quantity 1
Outdoor Unit:
High-efficiency copper tube with aluminum fin condenser, high-efficiency axial flow condenser fan, quantity 1, length 840mm, width 736mm, height 780mm, weight 115kg
Cooling and dehumidifying machines are designed to heat, cool, and dehumidify the environment to meet indoor temperature and humidity requirements. These machines use evaporators to cool and dehumidify the air, while also recovering the condensation heat from the system to compensate for the heat lost during cooling and dehumidification, making it an efficient and energy-saving dehumidification method. They are widely used in high-temperature and humidity requirement areas such as civil air defense projects, tobacco, petrochemicals, electronics, aerospace, purification projects, laboratories, telecommunications equipment rooms, archives, food storage, medicine, and special glass.
Cooling and Dehumidification Machine Working Principle:
As ambient air passes over the evaporator surface, due to the evaporator's temperature being below the dew point of the air, water vapor condenses in the collecting tray and is drained out through pipes. This reduces the humidity of the air. The room can be heated, cooled, and dehumidified according to the user's requirements for the indoor temperature and humidity.
The cooling and dehumidifier combines refrigeration and dehumidification into one unit, primarily consisting of: refrigeration section, pre-efficiency filtration section, and circulation fan section. It features an upward air supply and downward return air from the front side, with microcomputer programming to effectively manage each operational section, ensuring the required temperature and humidity of the usage environment.
Cooling and Dehumidification Machine Applications:
Aerospace & Aviation: Used for assembly and testing sites of satellites and spacecraft, controlling air temperature and humidity.
Pharmaceutical Industry: With the implementation of GMP certification, the temperature and humidity requirements for pharmaceutical production have become increasingly crucial. Yinteng's cooling and dehumidification units can create an excellent environment for pharmaceutical production to ensure product quality.
Electronics Industry: Low humidity requirements for the manufacturing of precision equipment such as electronic components, aerospace devices, and lithium batteries.
Food Industry: Cooling and dehumidifying machines with sterilization features are particularly suitable for process conditions requiring constant temperature and dry air for heat-sensitive food production lines, such as milk powder, freeze-dried vegetables, animal glue, and sugar.
Warehouse, library, archive: Stored items, books, documents, etc. are preserved in a controlled temperature and humidity environment to ensure long-term preservation without damage.
Automotive Industry: The cooling and dehumidification unit is an indispensable air treatment equipment in the production process of automotive parts in the automotive industry.
