Product Specifications

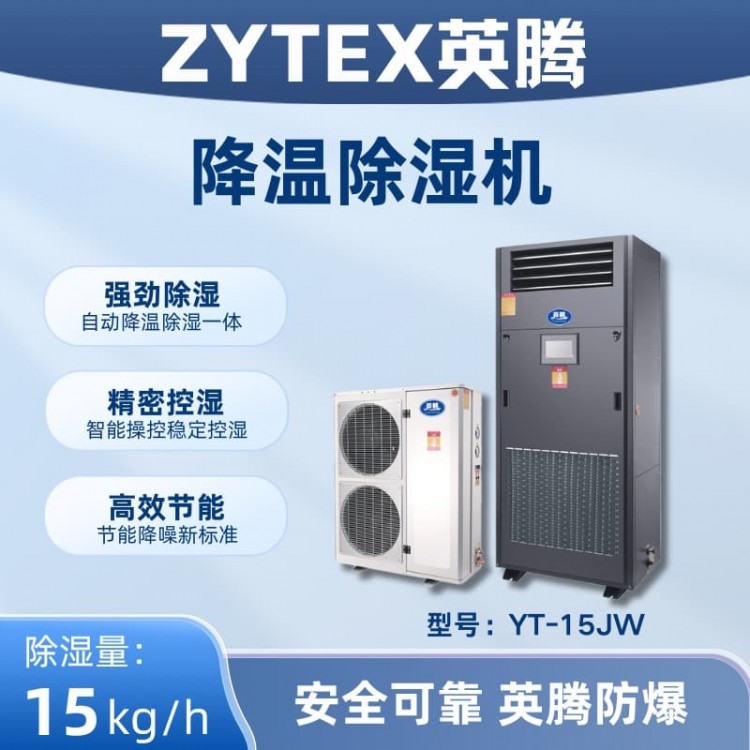

Model: YT-15JW
Brand: YingTeng
Engine performance:
Dehumidification capacity: 15.2 kg/h, Cooling capacity: 20.4 kW, Airflow: 4000 m³/h, External static pressure: 0-40 Pa, Power supply: 3/NPEAC 380V 50Hz, Input power: 6.2 kW.
Compressor:
Type: Fully Enclosed Rotary Compressor, Quantity: 2, Control Type: External Balance Thermostatic Expansion Valve.
Indoor unit:
Evaporator in the form of high-efficiency copper tube with aluminum fins, fan type high-efficiency centrifugal fan, filter type red double-layer nylon filter mesh, connection pipe method threaded connection, liquid pipe 2×φ12mm, gas pipe 2×φ19mm, length 1187mm, width 500mm, height 1748mm, weight 150kg, quantity 1, condenser type high-efficiency copper tube with aluminum fins.
Outdoor Unit:
Condensing fan type: High-efficiency axial flow fan, quantity: 2, length: 142mm (Note: the length value may be incorrect), width: 814mm, height: 1050mm, weight: 200kg.
Cooling and dehumidification machines are designed for industries that require controlling indoor temperature and humidity, offering heating, cooling, and dehumidification functions. These machines use evaporators to cool and dehumidify the air, while also recovering the system's condensation heat to compensate for the heat lost during the cooling and dehumidification process, making it an efficient and energy-saving dehumidification method. They are widely used in fields such as civil air defense projects, tobacco, petrochemicals, electronics, aerospace, purification projects, laboratories, telecommunications equipment rooms, archives, food storage, pharmaceuticals, and special glass, where strict temperature and humidity control is necessary.
Cooling and Dehumidifier Working Principle:
As ambient air passes over the evaporator surface, due to the evaporator being cooler than the air's dew point temperature, the water vapor in the air condenses in the collecting tray and is drained out through pipes. This reduces the air's humidity content, allowing for indoor heating, cooling, and dehumidification based on the user's requirements for the ambient temperature and humidity.
The cooling and dehumidifier combines refrigeration and dehumidification into one unit, mainly consisting of: the refrigeration section, the preliminary filtration section, and the circulating fan section. It features an upward air supply and a front-side downward return air design. The microcomputer programming ensures efficient operation of each section, meeting the requirements for temperature and humidity control in the operating environment.
Application Fields of Dehumidifying Air Coolers:
Aerospace & Aviation: Used for assembly and testing facilities, controlling air temperature and humidity for satellites and spacecraft.
Pharmaceutical Industry: With the implementation of GMP certification, the requirements for temperature and humidity control in drug production have become increasingly crucial. Yingten's cooling and dehumidification units can create an excellent environment for drug production to ensure product quality.
Electronics Industry: Low humidity requirements in the manufacturing of precision equipment such as electronic components, aerospace devices, and lithium batteries.
Food Industry: Dehumidifying coolers with sterilization function are particularly suitable for process applications requiring constant temperature and dry air for heat-sensitive food production lines, such as milk powder, freeze-dried vegetables, animal glue, and sugar.
Warehouse, library, archive: Stored items, books, documents, etc. can be preserved in a controlled temperature and humidity environment for long-term, damage-free storage.
Automotive Industry: Dehumidification and temperature control units are an indispensable air treatment equipment in the production of automotive parts within the automotive industry.
