Product Specifications

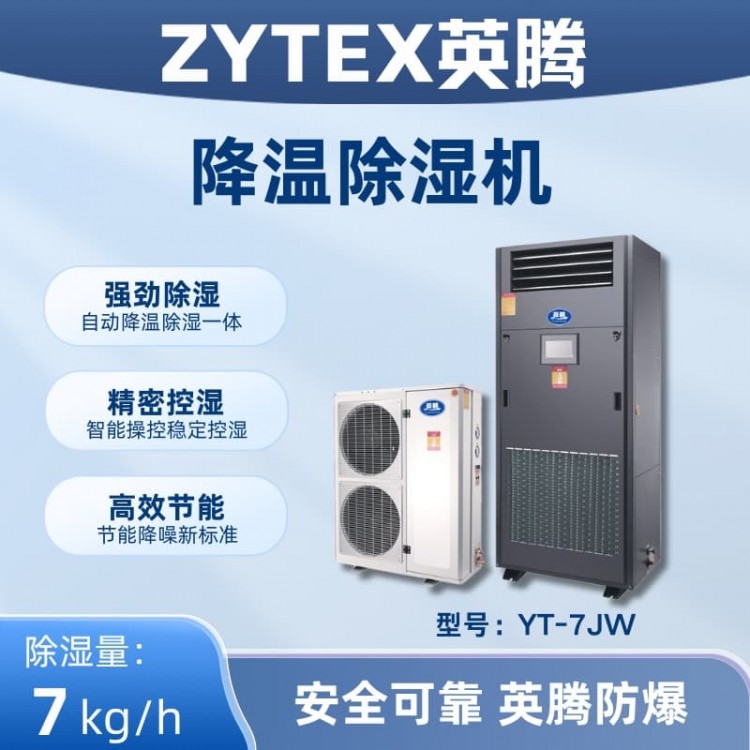

Model: YT-7JW
Brand: YingTeng
Engine performance:
Dehumidification capacity: 7.3 kg/h, Cooling capacity: 10.5 kW, Airflow: 2000 m³/h, External static pressure: 0-30 Pa, Power supply: 3/NPEAC 380V 50Hz, Input power: 2.8 kW.
Compressor:
Type: Full Enclosed Rotary Compressor, Quantity: 1, Control Type: External Balanced Thermostatic Expansion Valve.
Indoor unit:
Evaporator: High-efficiency copper tube with aluminum fins. Fan type: High-efficiency centrifugal fan. Filter type: Red double-layer nylon filter mesh. Connection method: Threaded connection. Liquid tube: 1×φ10mm, gas tube: 1×φ16mm. Dimensions: Length 598mm, width 406mm, height 1618mm. Weight: 60kg. Quantity: 1. Condenser: High-efficiency copper tube with aluminum fins.
Outdoor Unit:
High-efficiency axial flow condenser fan type, quantity 1, length 840mm, width 736mm, height 780mm, weight 110kg.
Cooling and dehumidifying machines are designed to meet the industry's demand for indoor temperature and humidity control by heating, cooling, and dehumidifying the environment. These machines use evaporators to cool and dehumidify the air while recovering the condensate heat from the system to compensate for the heat lost during cooling and dehumidification, making it an efficient and energy-saving dehumidification method. They have been widely applied in high-temperature and humidity control environments such as civil air defense projects, tobacco, petrochemical, electronics, aerospace fields, purification projects, laboratories, telecommunications equipment rooms, archives, food storage rooms, pharmaceuticals, and special glass.
Cooling and Dehumidifier Working Principle:
As ambient air passes over the evaporator surface, due to the evaporator's temperature being below the dew point of the air, water vapor condenses in the collection tray and is drained out through pipes. This reduces the humidity of the air, allowing for indoor heating, cooling, and dehumidification based on the user's requirements for the ambient temperature and humidity.
The cooling and dehumidifier combines refrigeration and dehumidification into one unit, mainly consisting of: the refrigeration section, the preliminary filtration section, and the circulating fan section. It utilizes an upward air supply and a front-side downward return air design. The microcomputer programming ensures the effective operation of each section, meeting the requirements for temperature and humidity in the operating environment.
Cooling and Dehumidifier Applications:
Aerospace & Aviation: Used for satellite and spacecraft assembly and testing sites, controlling air temperature and humidity.
Pharmaceutical Industry: With the implementation of GMP certification, the temperature and humidity requirements for pharmaceutical production have become increasingly important. Yingteng's cooling and dehumidification units can create an excellent environment for pharmaceutical production to ensure product quality.
Electronics Industry: Low humidity requirements for precision equipment manufacturing, including electronic components, aerospace devices, and lithium batteries.
Food Industry: Dehumidifying coolers with sterilization function are particularly suitable for process conditions requiring constant temperature and dry air for heat-sensitive food production lines, such as milk powder, freeze-dried vegetables, animal glue, and sugar.
Warehouse, library, archive: Stored items, books, documents, etc. can be preserved in a controlled temperature and humidity environment for long-term storage without damage.
Automotive Industry: Dehumidification cooling units are an indispensable air treatment equipment in the production process of automotive parts in the automotive industry.
